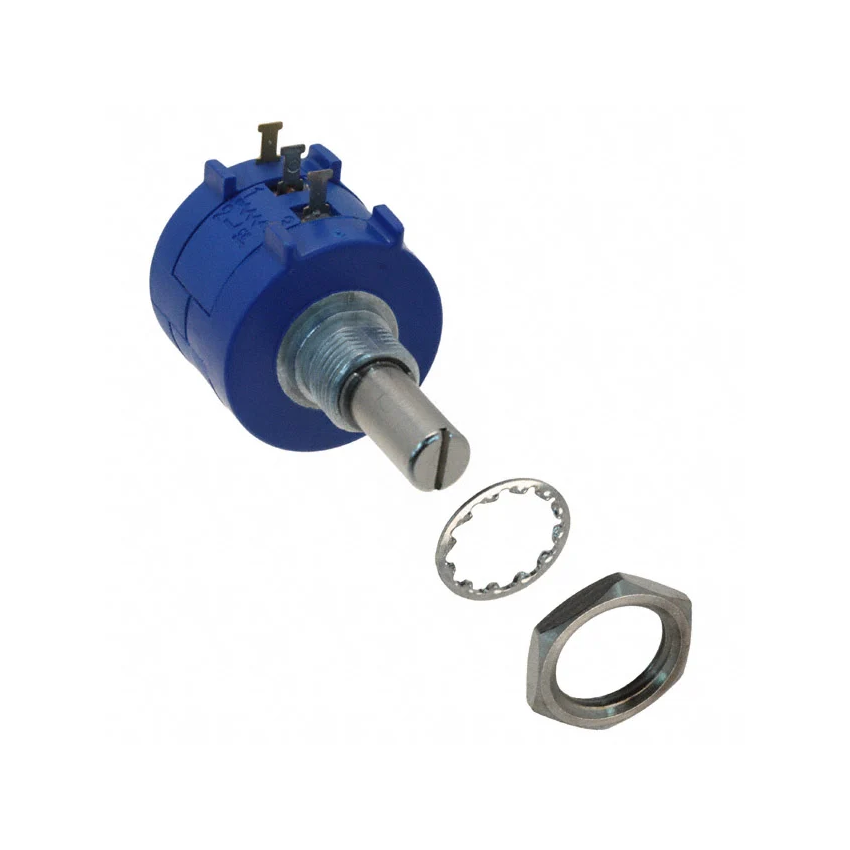

3590S-2-202L Precision Potentiometer 2K Ohm 10 Turn Wirewound 2W Bushing Mount

The 3590S-2-202L is a precision 10-turn potentiometer with a resistance value of 2K Ohms, designed for applications requiring fine, multi-turn resistance control. With a rugged wirewound element, this unit is capable of delivering highly stable and linear performance. Its compact panel-mount form, complete with threaded bushing and shaft hardware, allows easy integration into instrument panels or control boxes. Rated at 2W power dissipation and operating reliably across a wide temperature range, this potentiometer is widely used in industrial control systems, test equipment, and precision analog adjustments.

Key Features:

• Resistance value: 2,000 Ohms (2KΩ) with 10-turn precision
• High-accuracy wirewound element for consistent and repeatable control
• Panel-mount bushing with robust shaft and locking hardware
• ±5% resistance tolerance ensures reliable circuit performance
• 2W power rating at 70°C for demanding industrial environments
• Long life up to 1 million cycles suitable for calibration and control panels

Additional Specifications:

• Resistance: 2K Ohms
• Tolerance: ±5%
• Shaft Diamter: 6.35mm
• Power Rating: 2 Watts
• Shaft Length: 22mm
