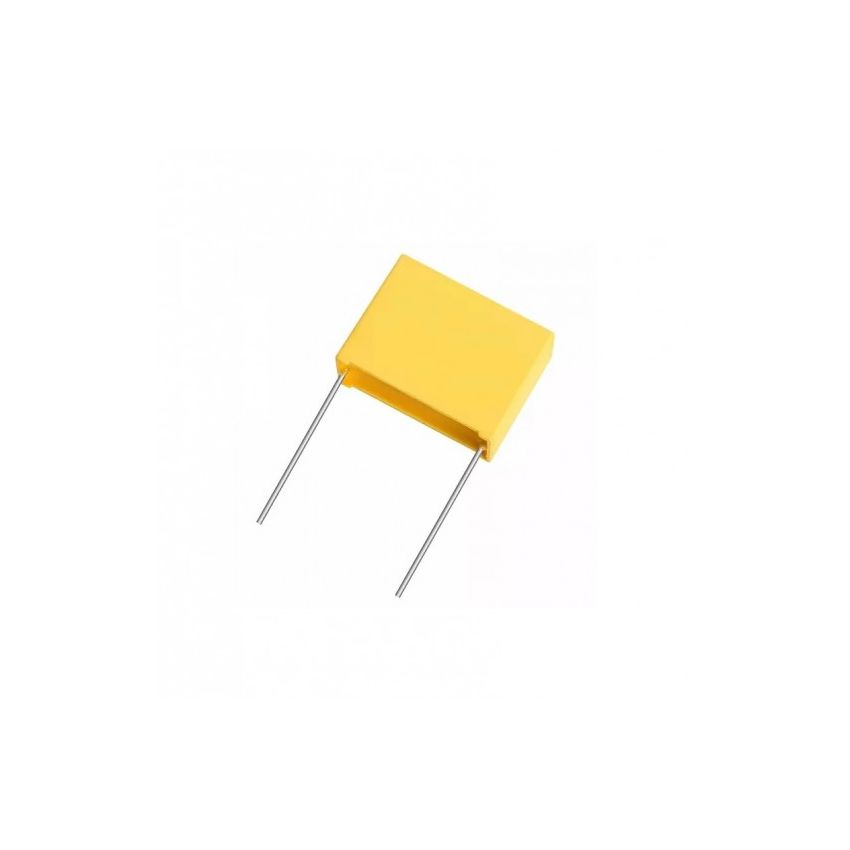

0.22UF Polypropylene Film Capacitor 310V ±10% Radial Lead Pitch 15mm

The 0.22µF 310V Polypropylene Film Capacitor is ideal for EMI/RFI suppression and across-the-line filtering applications in power supplies and electronic appliances. This capacitor uses a high-quality metallized polypropylene film as its dielectric and is encapsulated in a flame-retardant epoxy resin for enhanced durability and environmental resistance.

Key Features:

• Capacitance: 0.22µF (220nF)
• Rated Voltage: 310V AC
• Dielectric Material: Metallized Polypropylene Film
• Tolerance: ±10%
• Lead Pitch: 15mm
• Flame Retardant Epoxy Resin Coating

Additional Specifications:

• Tolerance: ±10%
• Capacity: 0.22µF
• Capacitor Type: Polypropylene Film
• Rated Voltage: 310V AC
