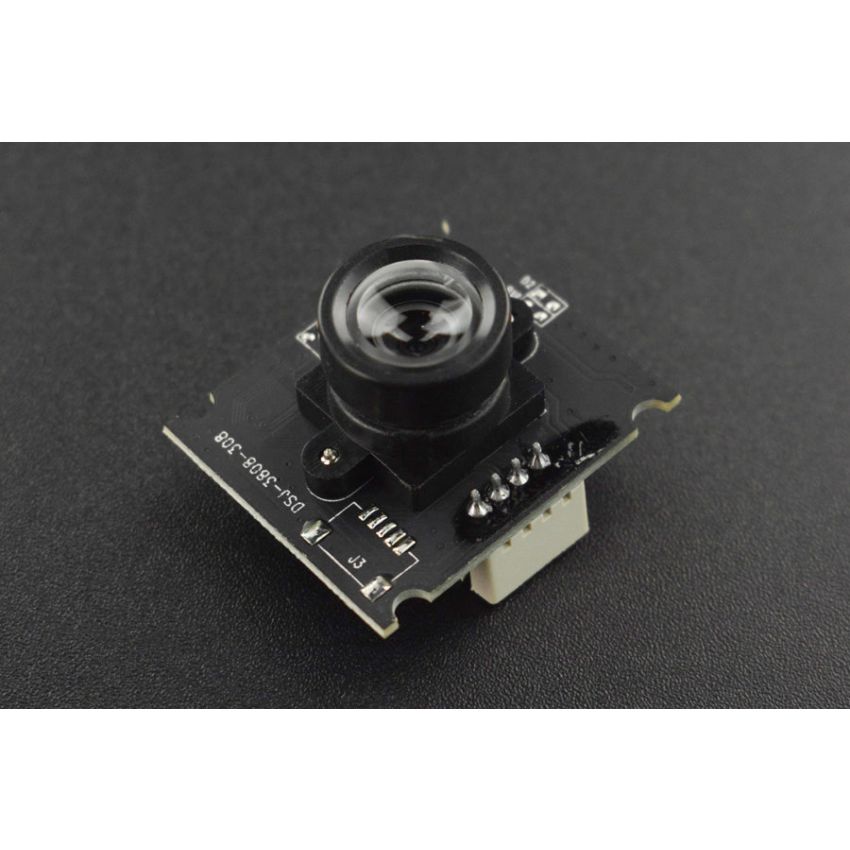

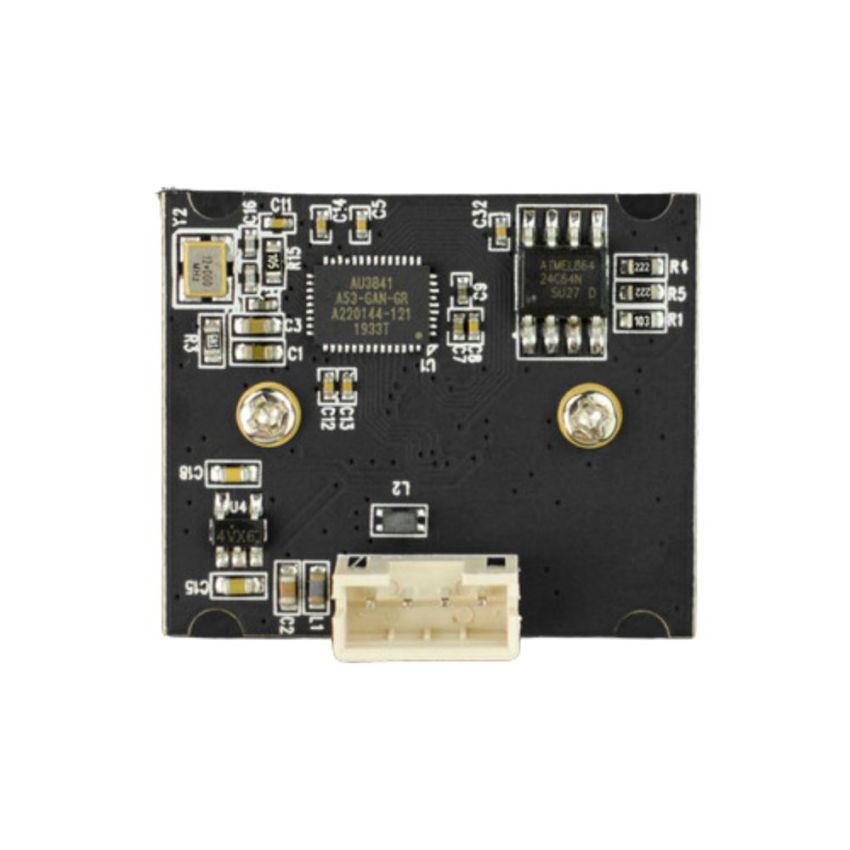

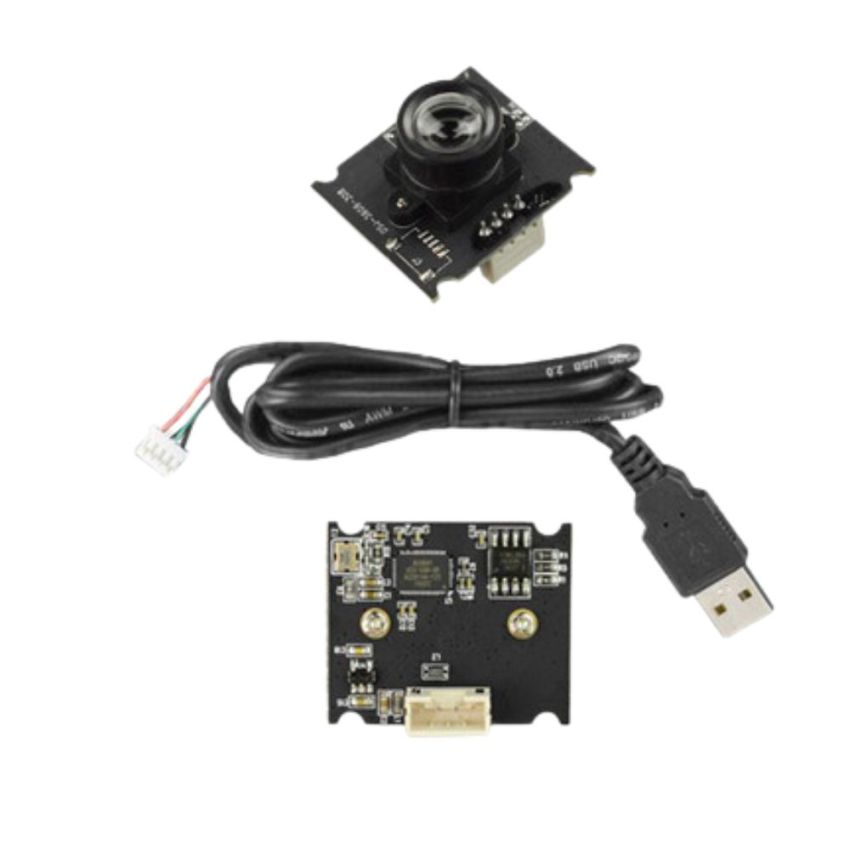

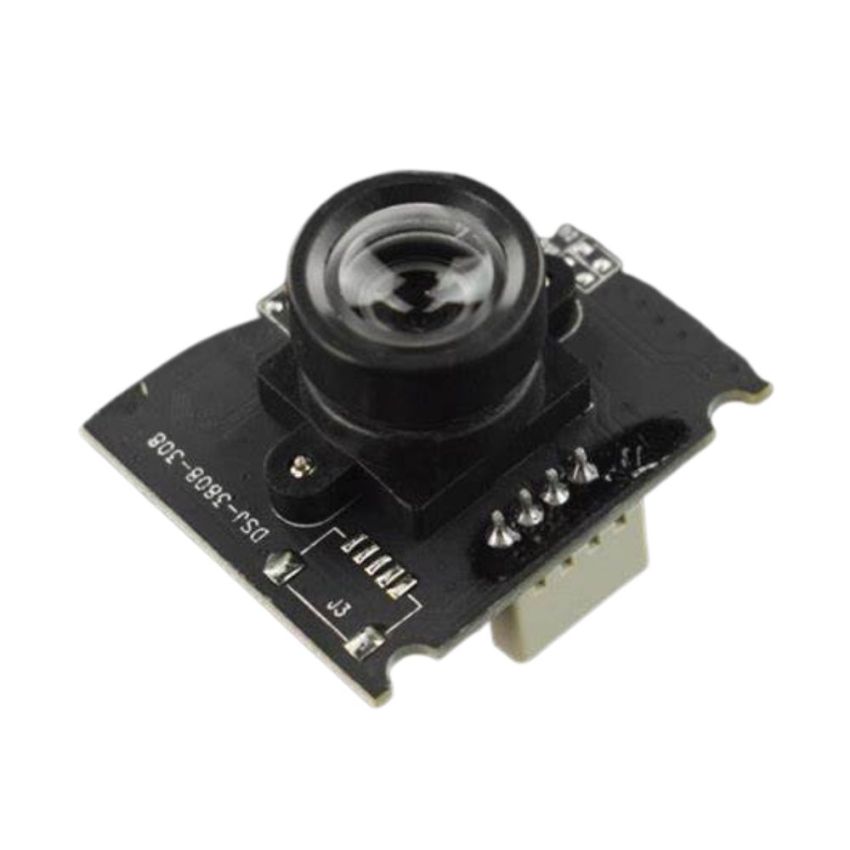

This compact 0.3MP camera module offers a resolution of 640x480 and is designed for easy plug-and-play functionality, making it compatible with both Raspberry Pi and NVIDIA series mainboards. It is ideal for applications like face identification, image recognition, security, protection, and remote teaching.
Key Features
â– Photosensitive Element: CMOS
â– AGC/AEC/AWB: Auto
â– Infrared Filter: 650±10nm
â– Supports MJPG and YUV format
â– FPN: Less than 0.03% of VPEAK-TO-PEAK
â– Connector: USB 2.0
â– Pixel: 30W
â– Resolution: 640x480
â– Operating Voltage: 5V
â– Operating Temperature: -20°C ~ 70°C
â– Dimensions: 30mm x 25mm x 21.4mm (1.18" x 0.98" x 0.84")
â– Supported OS: Windows, iOS, Android, Linux
Applications
The camera's compact design allows for easy integration into a variety of devices for face identification, image recognition, and other security-related applications.
