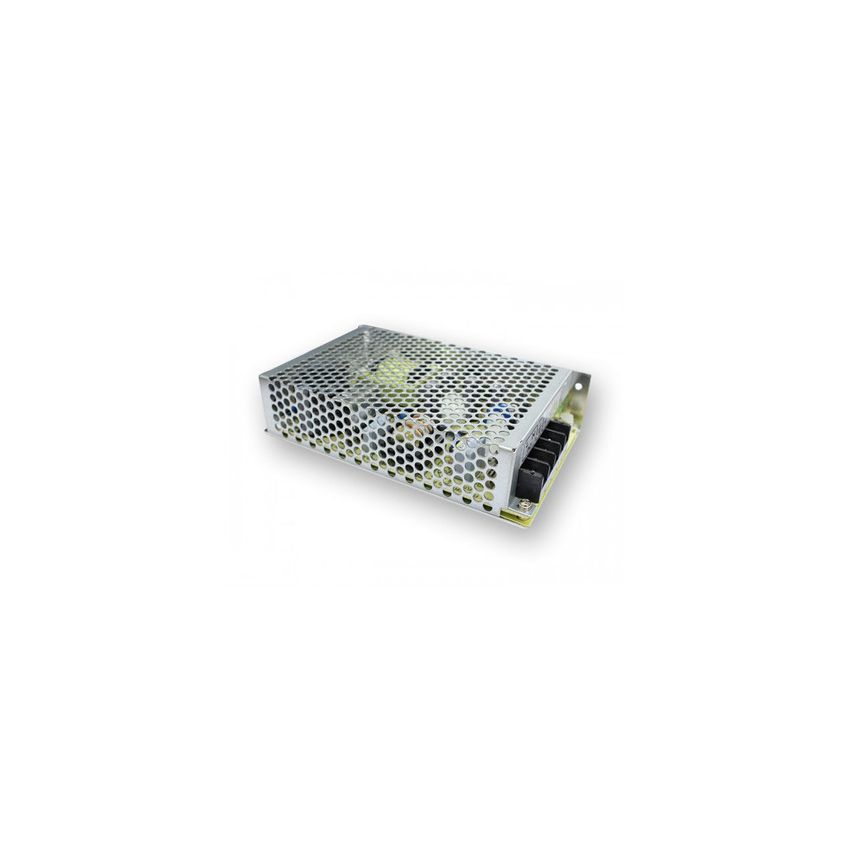

NET-75C ( 100-240V)

Functions : Triple output switch-mode power supply unit (SMPS PSU)
3-outputs
Supply voltage : (AC)85-264Vac (100Vac / 110Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac nom.)
Supply voltage : (DC)120-370Vdc (120Vdc / 127Vdc / 200Vdc / 220Vdc / 250Vdc nom.)
Type of network : Single phase
Rated current :
0.6-7A (output 1)
0.1-3.5A (output 2)
0.1-0.7A (output 3)
Rated power :
75W
72W (maximum)
Output voltage (DC)
(output 1) 4.75Vdc-5.50Vdc (adjustable range)
(output 1 nom.) 5Vdc
(output 2) 14.25-16.50Vdc (adjustable range)
(output 2 nom.) 15Vdc
(output 3) 15.75-13.50Vdc (adjustable range)
(output 3 nom.) 15Vdc
Protection functions :
Short-circuit
Over load (Hiccup mode; auto-recovery)
Over voltage (Rated output voltage; shut off)
Protection settingsOver load (110-150%)
Over voltage (115-135%)
Efficiency : 0.78
Ambient air temperature for operation-20… 60 °C
Current consumption(inrush; 230Vac) 45 A
