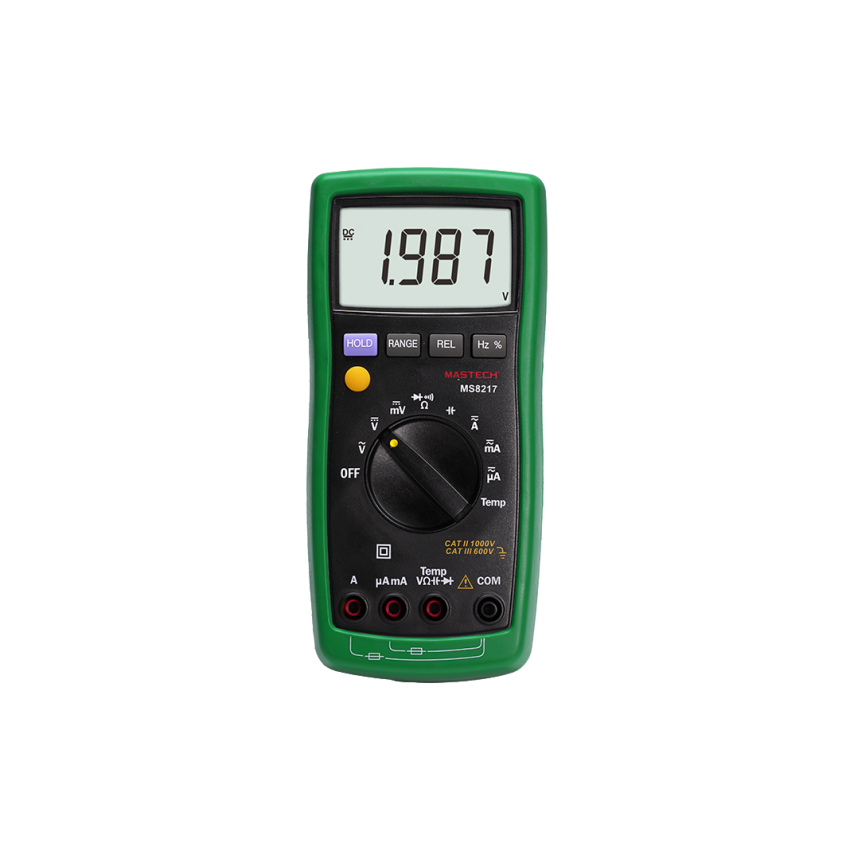

MS8217

SKU
TMMI0006
Brand:
Delivery in 2-5 Weeks.
Pre-Order
Out Of Stock
Add to Wish List

Notify me when this product is available:

Guarantee safe & secure checkout

Display 4000 counts
Auto and Manual Ranging
Auto Power Off
Relative Measurement
Diode Open Voltage 1.5V
Continuity Buzzer <50±20Ω
Data Hold
Display Backlight
Low Battery Display

General:


Power Supply : 3x1.5 AAA Batteries
Product Size : 185mmx87mmx53mm/7.28"x3.4"x2.04"
Product Weight : 360g/0.79lb
Certificate : RoHS
Safety Rating : CAT II 1000V / CAT 600V

Specifications:


DC Voltage:
•Range: 400mV, 4V, 40V, 400V, 1000V
•Resolution: 0.1mV, 1mV, 10mV, 100mV, 1V
•Accuracy: ±(1.0% 10), ±(0.5% 3)
AC Voltage:
•Range: 400mV, 4V, 40V, 400V, 1000V
•Resolution: 0.1mV, 1mV, 10mV, 100mV, 1V
•Accuracy: ±(3.0% 3), ±(1.0% 3)
DC Current:
•Range: 400μA, 4000μA, 40mA, 400mA, 4A, 10A
•Resolution: 0.1μA, 1μA, 10μA, 0.1mA, 1mA, 10mA
•Accuracy: ±(1.5% 3)
AC Current:
•Range: 400μA, 4000μA, 40mA, 400mA, 4A, 10A
•Resolution: 0.1μA, 1μA, 10μA, 0.1mA, 1mA, 10mA
•Accuracy: ±(1.5% 3)
Resistance:
•Range: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
•Resolution: 0.1Ω, 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ
•Accuracy: ±(0.5% 3), ±(0.5% 2), ±(1.5% 3)
Capacitance:
•Range: 50nF, 500nF, 5uF, 50uF, 100uF
•Resolution: 10pF, 100pF, 1nF, 10nF, 100nF
•Accuracy: ±(3.0% 10), ±(3.0% 5)
Frequency:
•Range: 50Hz, 500Hz, 5kHz, 50kHz, 100kHz
•Resolution: 0.01Hz, 0.1Hz, 1Hz, 10Hz, 0.1kHz
•Accuracy: ±(0.1% 3)
Duty Cycle:
•Range: 0.1%~99%
•Resolution: 0.1%
•Accuracy: ±(2.0% 5)
Temperature:
•Range: -55C-0C, 1C-400C, 401C-1000C
•Resolution: 0.1℃, 0.1℃, 1℃
•Accuracy: ±(9.0% 2), ±(2.0% 1), ±(2.0%)



Measurement Functions Voltage, Current, Resistance, Continuity Test, Diode Test, Transistor Test, Battery Test
