MJ10021,NPN Darlington Power Transistor,350V,60A

The MJ10021 is a high-performance NPN Darlington Power Transistor designed for applications requiring high voltage, high current, and fast switching capabilities. It features a collector-emitter voltage of 350V and a continuous collector current of 60A, making it ideal for use in switching regulators, solenoid and relay drivers, AC and DC motor controls, and inductive circuits.

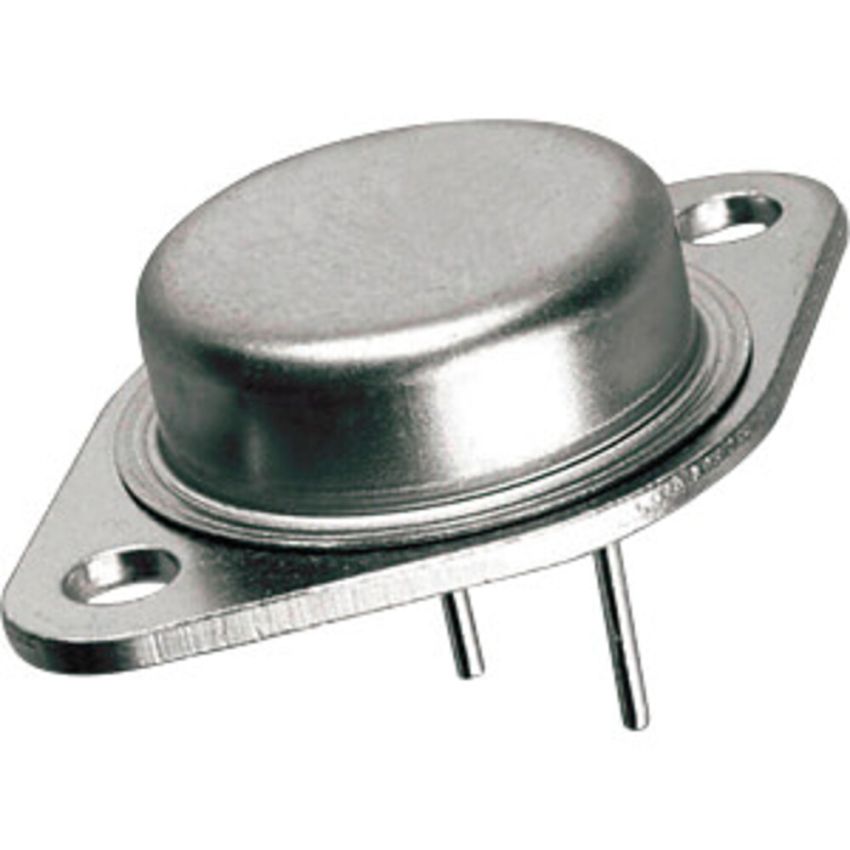

Encased in a durable TO-3 package, the MJ10021 ensures excellent thermal performance and mechanical stability. Its integrated base-emitter speed-up diode enhances switching speed and efficiency, while its robust design makes it suitable for critical applications requiring high power and reliability. With a total power dissipation of 250W, this transistor is a reliable choice for demanding power control applications.

Key Features :

• High collector-emitter voltage (VCEO) of 350V for medium to high voltage applications.
• Continuous collector current rating of 60A and peak collector current of 100A for high-power applications.
• Integrated base-emitter speed-up diode for fast switching performance.
• Low thermal resistance of 0.7C/W for efficient heat dissipation.
• Encased in a robust TO-3 package for enhanced durability and thermal management.
• Ideal for use in motor control, switching regulators, and relay driving circuits.
