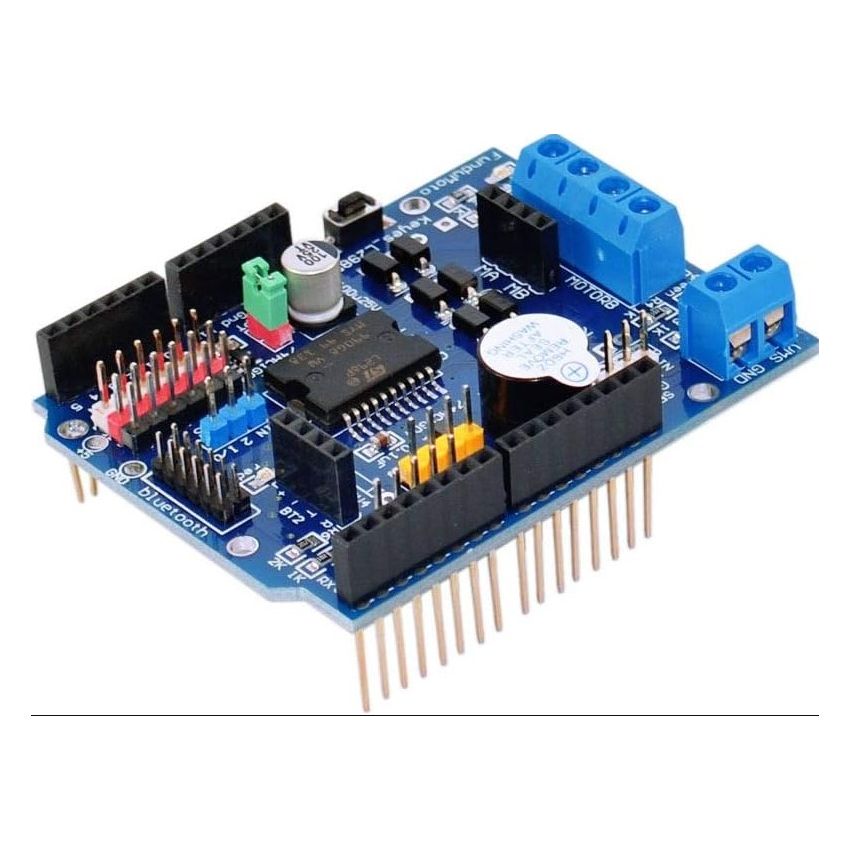

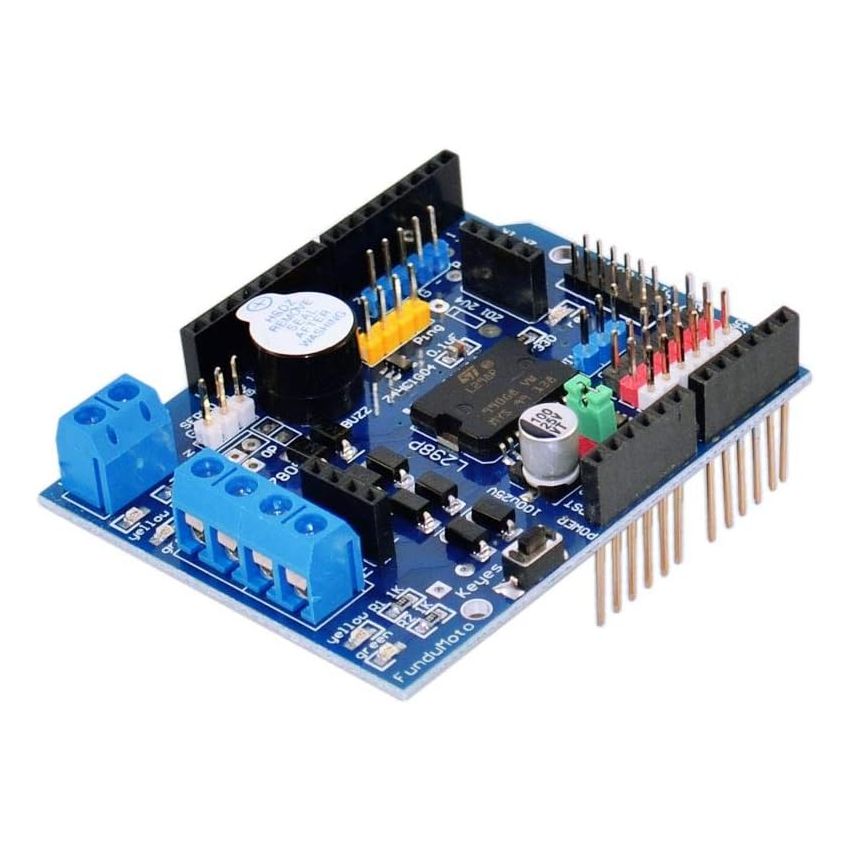

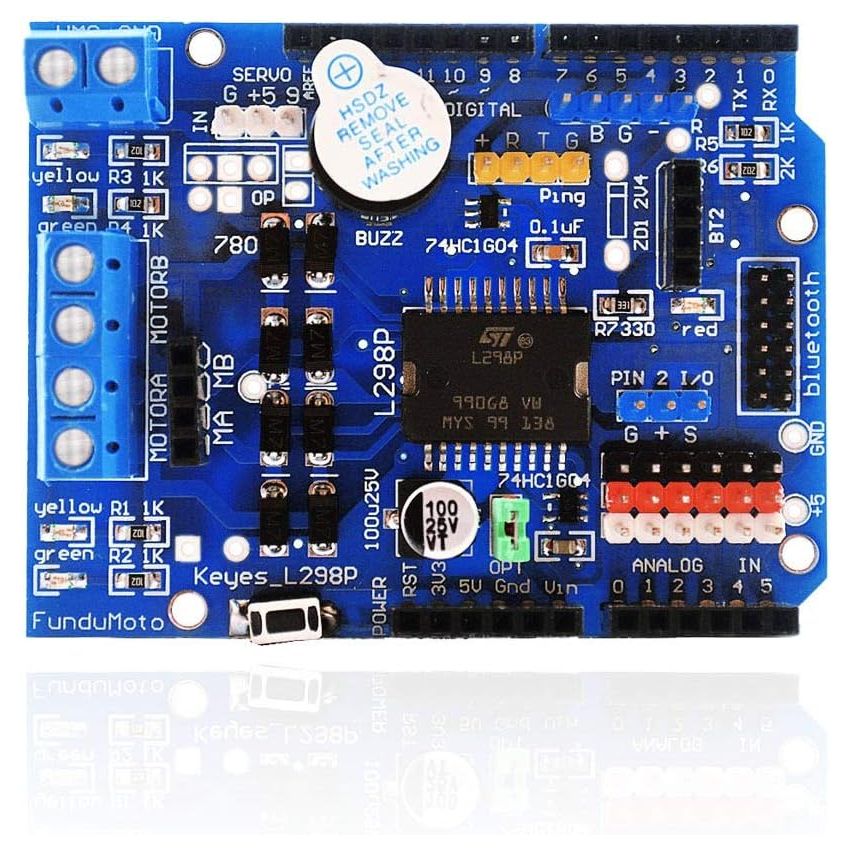

Description:

The L298 is an integrated monolithic circuit in a 15-lead Multiwatt and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver designed to acceptstandardTTL logic levels and drive inductive loads such as relays, solenoids, DC and Stepping motors. Two enable inputs are provided to Enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the con

Features:

• OPERATING SUPPLY VOLTAGE UP TO 46 V
• TOTAL DC CURRENT UP TO 4 A
• LOW SATURATION VOLTAGE
• OVERTEMPERATURE PROTECTION
• LOGICAL ”0” INPUT VOLTAGE UP TO 1.5 V
(HIGH NOISE IMMUNITY)

Specifications:

Power Supply (VS): 50 V
Logic Supply Voltage (VSS): 7 V
Input and Enable Voltage (VI,Ven): –0.3 to 7 V
Peak Output Current (IO) (each Channel):
– Non Repetitive (t = 100µs): 3A
–Repetitive (80% on –20% off; ton = 10ms): 2.5A
–DC Operation 2A
Sensing Voltage (Vsens): –1 to 2.3 V
Total Power Dissipation (Ptot) (Tcase = 75°C): 25 W
Junction Operating Temperature (Top) –25 to 130 °C
Storage and Junction Temperature (Tstg, Tj): –40 to 150 °C
