Features:

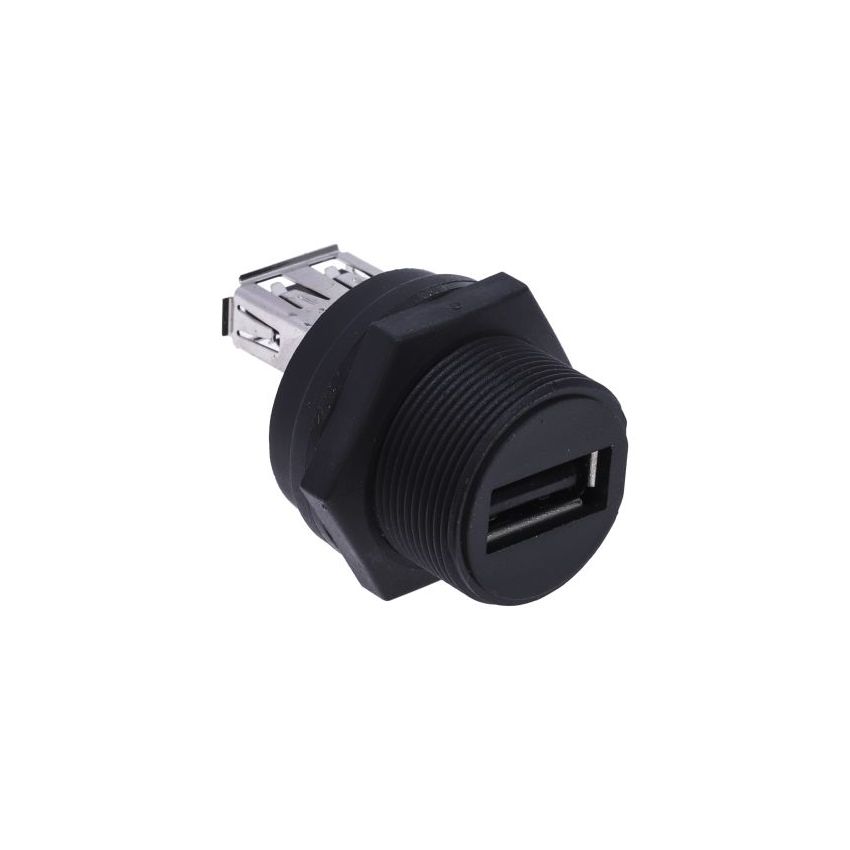

Type A,USB 2.0,Female to Female Socket,Straight,IP67, Adapter

Standard USB type A mating interface

No special cable/plug side solution required

Provides secure mating and data transmission

Meets environmental, health and safety standards

High Quality with 30 days 100% Money back;

From the OEM Original Factory, same quality with much better price.

Material:

Housing and Nut: Glass filled thermoplastic, UL94 V-0, black

Gasket and Seals: Silicon rubber shield, stainless steel

PCB: FR4 fiberglass

Contacts: Copper alloy plated with gold over nickel

Shield: Stainless steel

Main Application:

Base Station

Power

Router

Server

Power Generation

Automation

Smart Grid

LED Lighting

Robotics

MRI

Ultrasonic

CT

Monitoring





Electrical Characteristics:

DWV 500 VAC / 1 minute

Speed: 480Mb/s

Contact Resistance: 30mΩ max.

Insulation Resistance: 1000MΩ min.

Current Rating: 1.5A

Mechanical Characteristics:

Wire Gauge (where applicable): 24AWG/28AWG (power/signal)

Cable Range (where applicable): 3.50mm to 6.80mm OD

Durability: 1500 mating cycles

Environmental Characteristics:

Operating Temperature: -45°C to 85°C

RoHS compliant
