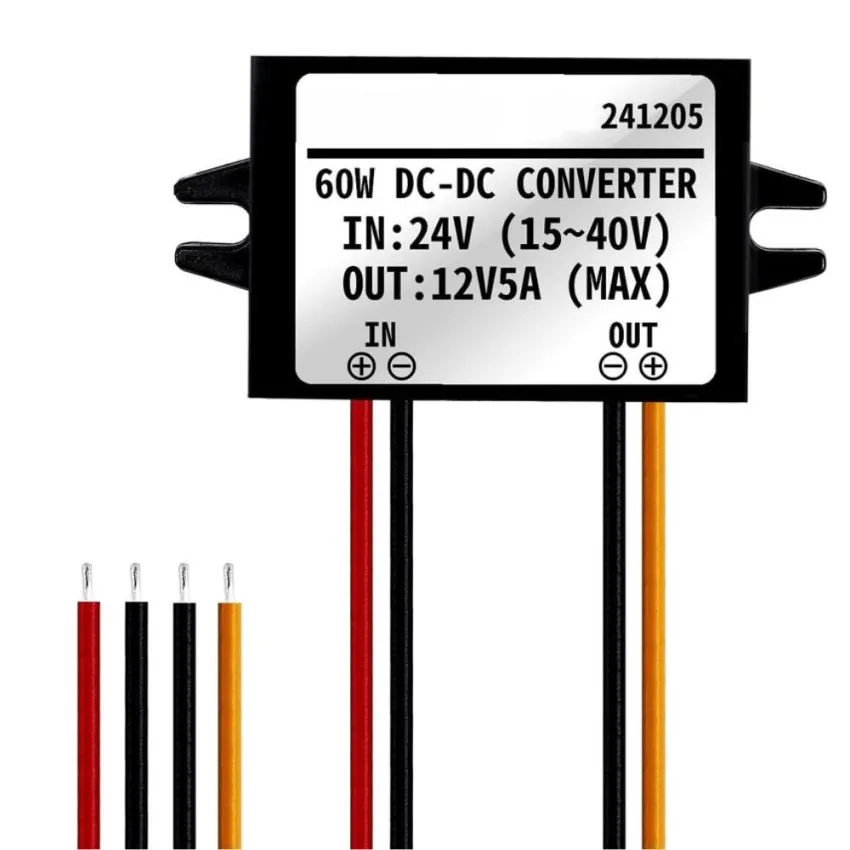

FZS241205 DC-DC Converter 24V (15-40) / 12V5A

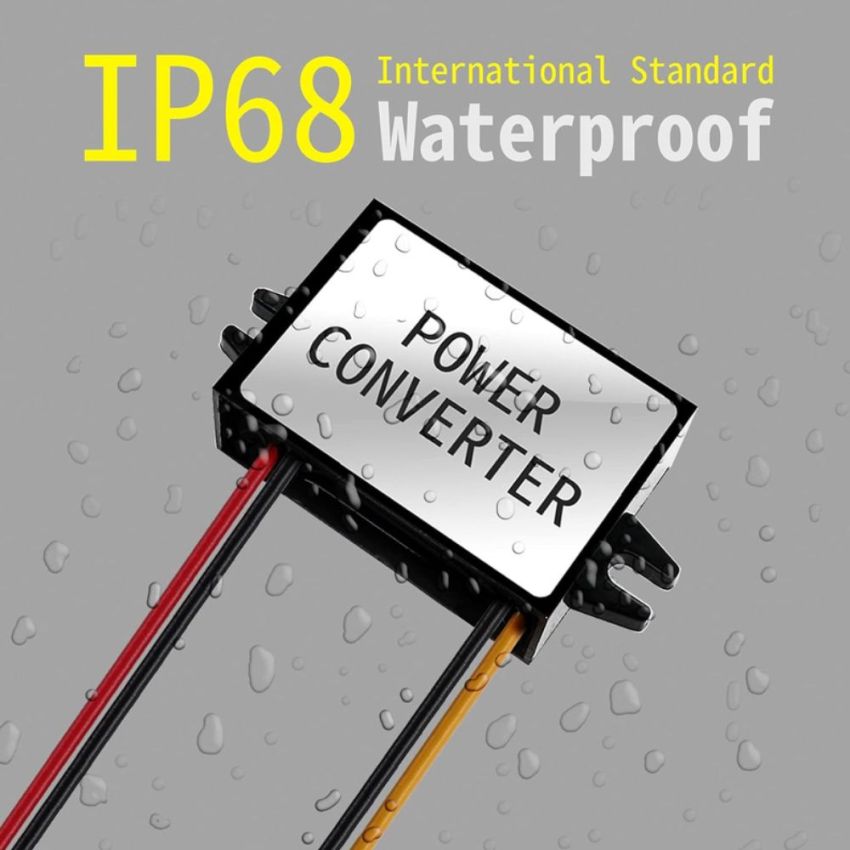

The 24V to 12V Step Down Converter is an electronic device designed to convert a DC voltage of 24V (within a range of 15-40V) to a DC voltage of 12V. It has an output current capacity of 0-5A and can provide a maximum output power of 0-60W. The converter is equipped with multiple protection features such as overcurrent protection, overvoltage protection, over temperature protection, and short circuit protection. The device uses high-quality components and has a conversion efficiency of 96%, resulting in long service life and reliable performance. The working principle of the converter is that the input power (voltage multiplied by current) must be greater than the output power. The converter's adaptive output current feature recommends using a converter with a larger current than the output device to ensure better heat dissipation and lifespan. The converter's flame-retardant plastic shell improves its flame-retardant, toughness, and strength. The epoxy resin potting provides better heat conduction and heat dissipation, and the converter has an IP68 protection level that makes it waterproof, dustproof, and shockproof.
