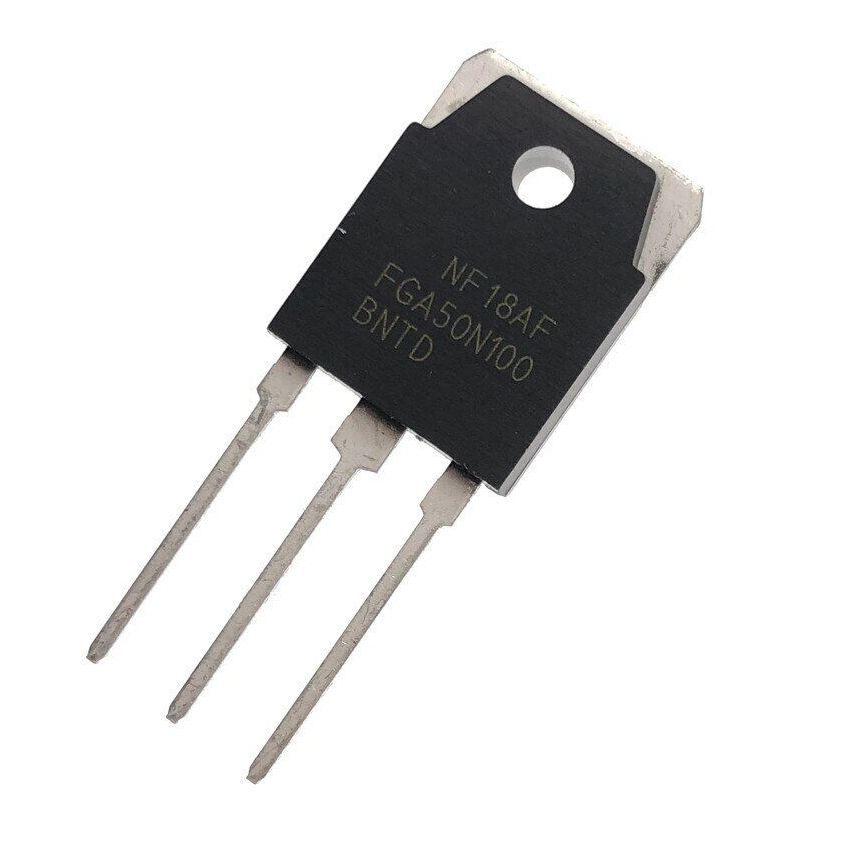

FGA50N100BNTD ,1000V NPT Trench IGBT - TO-3P, 50A, High-Speed Switching

FGA50N100BNTD ,1000V NPT Trench IGBT - TO-3P, 50A, High-Speed Switching

SKU
SCTx3284
Part Number
FGA50N100BNTD
Brand:
ON Semiconductor
Categories:
Semiconductors, Transistors, IGBT, ON Semiconductor
JOD 7.90
Be the first to review this product
Pre-Order
Estimated Delivery: 2 - 3 Weeks
Add to Wish List
Add to Compare
Ask for Quotation

Ask for Quotation

FGA50N100BNTD ,1000V NPT Trench IGBT - TO-3P, 50A, High-Speed Switching (SKU: SCTx3284)

Guarantee safe & secure checkout

The FGA50N100BNTD is a high-performance 1000V NPT Trench IGBT designed for hard-switching applications, including UPS systems, welders, induction heating, and microwave ovens. Featuring a high-speed switching design and low saturation voltage of VCE(sat) = 2.5V at IC = 60A, this IGBT provides optimal performance with reduced switching losses.

It integrates a built-in fast recovery diode for enhanced efficiency and supports high avalanche ruggedness and easy parallel operation. The TO-3P package ensures high power dissipation, making it suitable for industrial environments.

Key Features :

  • High-Speed Switching for efficient performance.
  • Low Saturation Voltage: VCE(sat) = 2.5V @ IC = 60A.
  • High Avalanche Ruggedness for robust industrial use.
  • Built-in Fast Recovery Diode for optimized operation.
  • Collector Current: 50A at 25°C, 35A at 100°C.
  • High Input Impedance for superior control and efficiency.
More Information
Estimated Delivery 2 - 3 Weeks
Operating Temperature -55+150C
Mounting Style Through Hole
Max Voltage N/A
