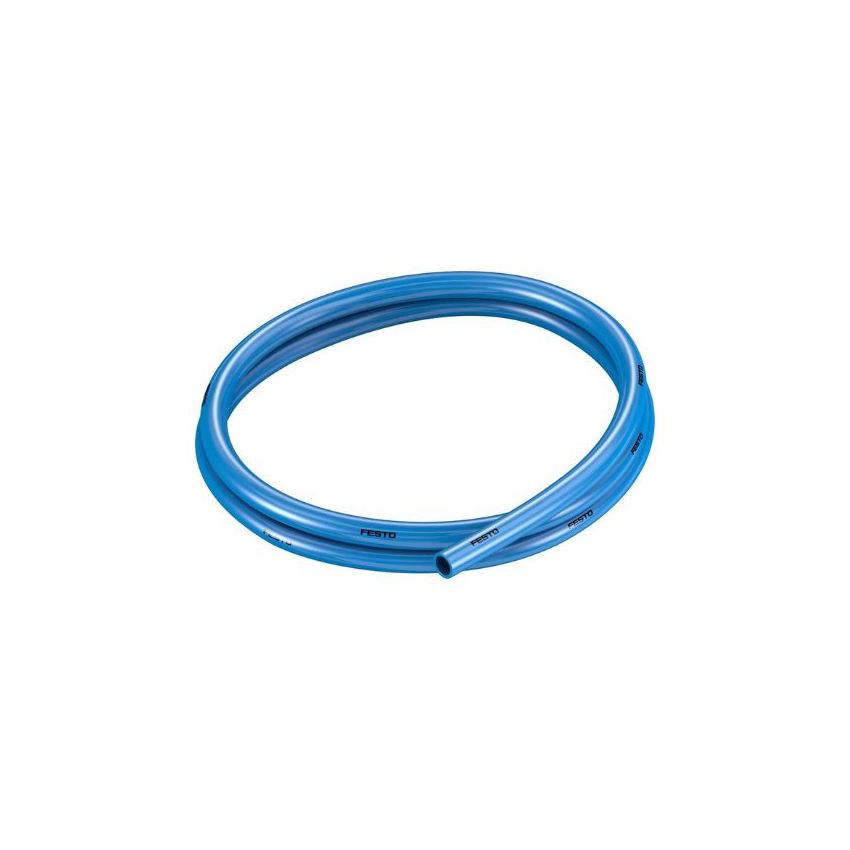

Festo Air Hose Blue PUN-H-10x1.5- FOR PORTABLE COMPRESSOR AND PHARAOHS REVENGE

Outside diameter : 10 mm
Bending radius relevant for flow rate : 52 mm
Inside diameter : 7 mm
Min. bending radius : 28 mm
Operating pressure for entire temperature range : -0.095 MPa ... 0.6 MPa
Operating pressure for entire temperature range : -0.95 bar ... 6 bar
Operating pressure for entire temperature range : -13.775 psi ... 87 psi
Temperature-dependent operating pressure : -0.095 MPa ... 1 MPa
Temperature-dependent operating pressure : -0.95 bar ... 10 bar
Temperature-dependent operating pressure : -13.775 psi ... 145 psi
Ambient temperature : -35 °C ... 60 °C
Product weight by length : 0.0465 kg/m
Pneumatic connection : For plug connection outside diameter 10 mm
Color : Blue
