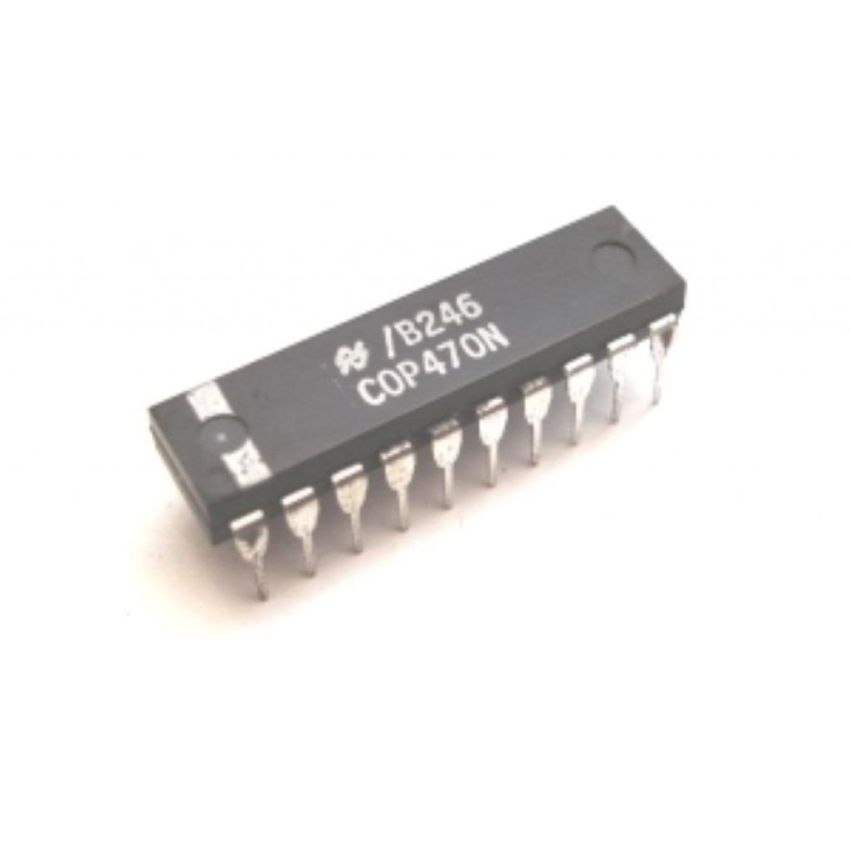

COP470N, Vacuum Fluorescent Display Driver IC, DIP-20

The COP470N is a Vacuum Fluorescent (VF) Display Driver IC designed for driving multi-segment and multi-digit VF displays with high efficiency and precision. It integrates a 16x8-bit internal RAM for storing display data, reducing processing demands on external microcontrollers.

With its serial interface communication, the COP470N allows seamless integration with embedded systems, microcontrollers, and digital display panels. It supports direct connection to multi-segment VF displays, providing bright, high-contrast visual output in applications such as industrial instrumentation, automotive dashboards, and consumer electronics.

Packaged in a DIP-20 form factor, the COP470N supports through-hole mounting, making it ideal for both prototyping and large-scale production. With low power consumption and stable performance, this IC is a versatile solution for real-time display control.

• Vacuum Fluorescent (VF) Display Driver: Controls up to 16 segments and 8 digits, enabling multi-segment numeric and alphanumeric displays.
• Integrated 16x8 RAM: Stores display data internally, reducing processing load on the main controller.
• Serial Interface Communication: Allows seamless integration with microcontrollers and embedded systems.
• DIP-20 Package for Easy Integration: Through-hole mounting for quick prototyping and robust PCB designs.
• Low Power Consumption: Operates efficiently within a 4.5V to 5.5V supply range, ensuring minimal power usage.
• Reliable and Stable Operation: Designed for real-time display updates, making it suitable for consumer electronics, industrial panels, and automotive displays.
