DS1102E 1000 Series Rigol Digital Oscilloscopes

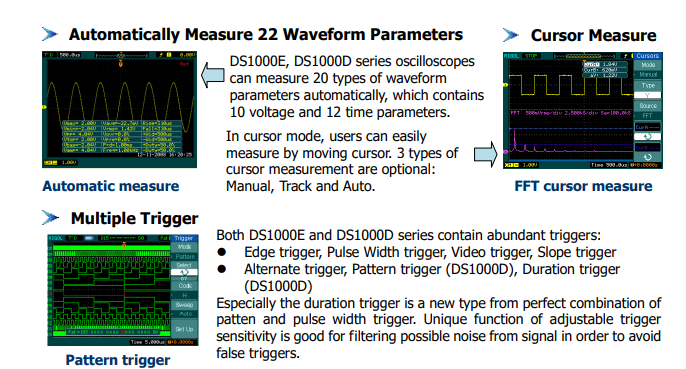

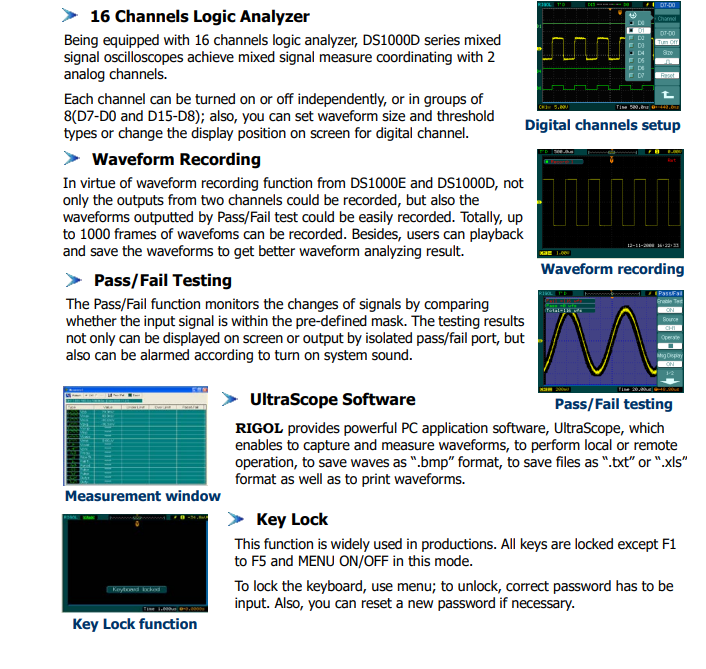

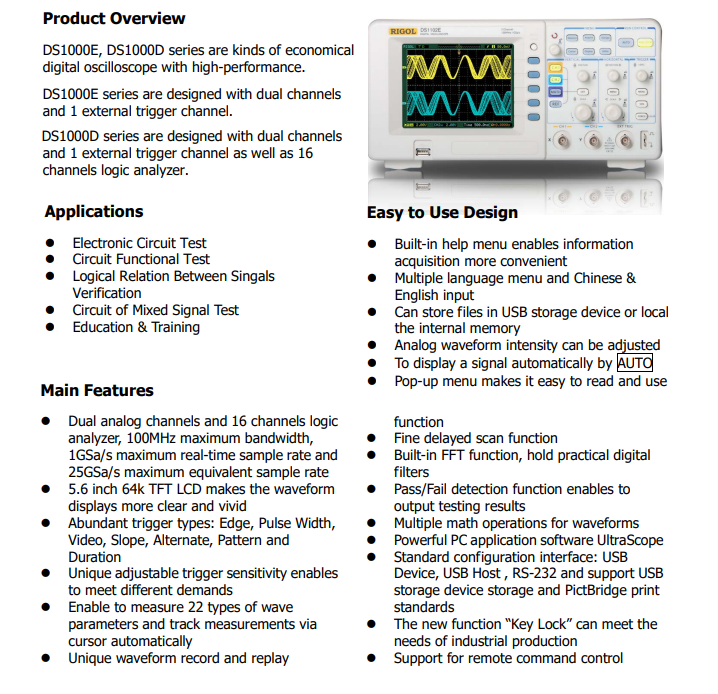

<p>The RIGOL 1000 Series oscilloscopes come in three different models: the B, D, and E series. The E series models offer a great value with 50-100 MHz bandwidth, 2 channels, and 1 million points of memory. The D series models add basic mixed signal analysis with low-speed digital capture. The B series models offer more power and speed, including the DS1204B model with 4 channels and 200 MHz bandwidth, providing 2 GSa/sec sampling.</p> <p>The main features of the 1000 series include dual analog channels and 16 channels logic analyzer, with a maximum bandwidth of 100MHz and a maximum real-time sample rate of 1GSa/s, and a maximum equivalent sample rate of 25GSa/s. The 5.6 inch 64k TFT LCD makes the waveform displays more clear and vivid. The oscilloscope includes abundant trigger types, such as Edge, Pulse Width, Video, Slope, Alternate, Pattern, and Duration, with unique adjustable trigger sensitivity to meet different demands.</p> <p>The 1000 series oscilloscope enables the measurement of 22 types of wave parameters and track measurements via cursor automatically. It also features unique waveform record and replay capabilities, as well as other useful functions such as FFTs, roll mode, and alternate trigger mode. Overall, the 1000 Series is a great entry-level choice for those seeking a value oscilloscope with various features to meet their requirements.</p> <h1><br /><strong>Specifications</strong>:</h1> <p><br />Bandwidth: 100MHz</p> <p>Acquisition:<br />Sample Modes: Real-Time Sample, Equivalent Sample<br />Sample Rate: 1GSa/s <br />Maximum Sample Rate: 25GSa/s <br />Averages: selectable from 2, 4, 8, 16, 32, 64, 128, and 256<br />Inputs: DC, AC, GND<br />Input Impedance: 1M&Omega;&plusmn;2%, the input capacity is 18pF&plusmn;3pF<br />Probe Attenuation Factors: 1X, 5X, 10X, 50X, 100X, 500X, 1000X<br />Maximum Input Voltage: 400V (DC＋AC Peak, 1M&Omega; input impedance), 40V (DC AC Peak) [2]<br />Time Delay between Channels (typical): 500ps</p> <p>Horizontal:<br />Sample Rate Range: Real-Time: 13.65Sa/s-1GSa/s, Equivalent: 13.65Sa/s-25GSa/s<br />Waveform Interpolation: Sin(x)/x<br />Memory Depth:<br />Single channel 1GSa/s: 16kpts (normal), N.A. (long memory)<br />Single channel 500MSa/s or lower: 16kpts (normal), 1Mpts (long memory)<br />Dual channel 500MSa/s or lower: 8kpts (normal), N.A. (long memory)<br />Dual channel 250MSa/s or lower: 8kpts (normal), 512kpts (long memory)<br />Scanning Speed Range (Sec/div): 2ns/div50s/div, DS1102X; 5ns/div50s/div, DS1052X<br />1-2-5 Sequence Sample Rate and Delay Time Accuracy: &plusmn;50ppm (any interval &ge;1ms)</p> <p>Vertical:<br />A/D Converter: 8-bit resolution, all channels sample simultaneously<br />Volts/div Range: 2mV/div~10V/div (at the input terminal connecting to BNC)<br />Maximum Input Voltage on Analog Channel:<br />CAT I 300Vrms, 1000Vpk; instantaneous overvoltage 1000Vpk<br />CAT II 100Vrms, 1000Vpk<br />RP2200 10:1: CAT II 300Vrms<br />RP3300A 10:1: CAT II 300Vrms<br />Offset Range: &plusmn;40V (250mV/div10V/div), &plusmn;2V (2mV/div245mV/div)<br />Analog Bandwidth: 100MHz (DS1102D, DS1102E), 50MHz (DS1052D, DS1052E)<br />Single-shot Bandwidth: 100MHz (DS1102D, DS1102E), 50MHz (DS1052D, DS1052E)<br />Selectable Analog Bandwidth Limit (typical): 20MHz<br />Lower Frequency Response (AC, &ndash;3dB): &le;5Hz (at input BNC)<br />Rise Time (typical at BNC, equivalent sample): &lt;3.5ns (DS1102D, DS1102E), &lt;7ns (DS1052D, DS1052E)<br />DC Gain Accuracy:<br />2mV/div-5m</p> <p>&nbsp;</p> <p>&nbsp;</p>
