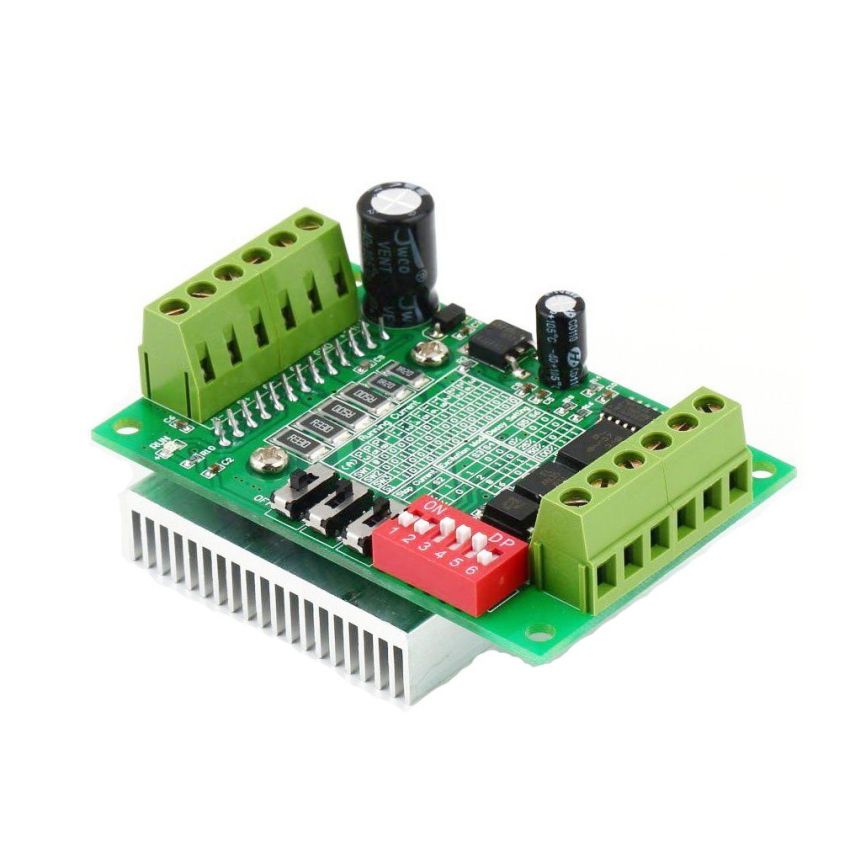

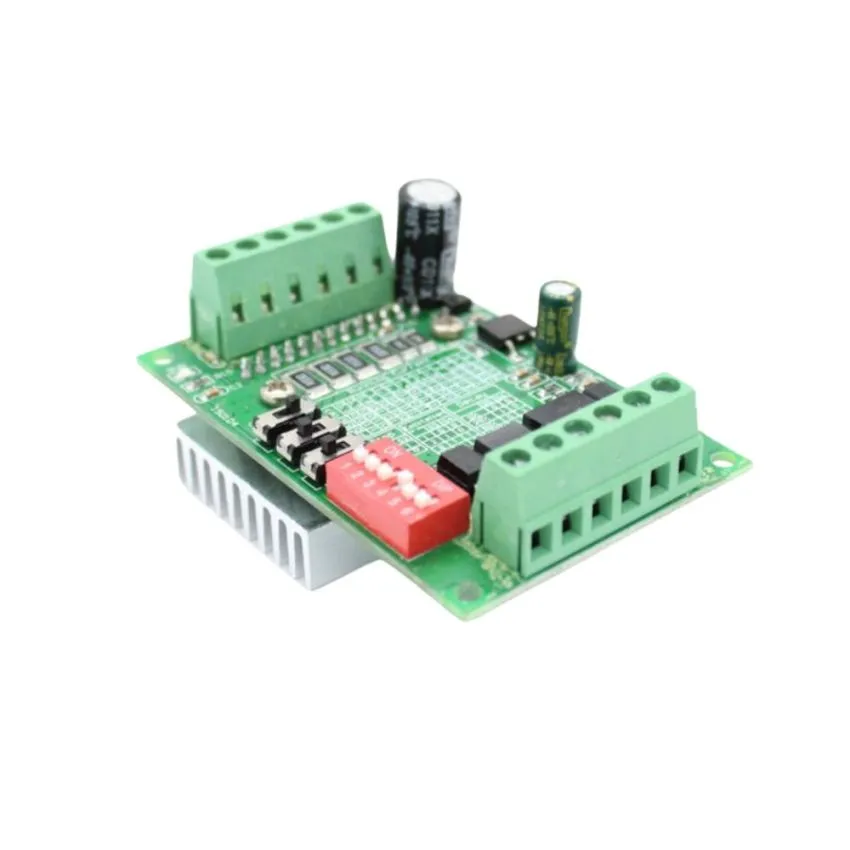

TB6650 ,Stepping Motor Driver Module – 4.5A, Adjustable Microstepping

The TB6650 is a high-performance stepping motor driver designed for precise control of NEMA stepper motors in CNC, 3D printing, and other automation applications. With a maximum output current of 4.5A per phase, this driver can handle large stepper motors that require high torque and smooth operation. The module supports adjustable microstepping settings, allowing for fine motor control, and features integrated protection mechanisms like overcurrent and overheating protection for reliable and safe operation.

Equipped with DIP switches for easy microstep and current adjustments, the TB6650 is compatible with a wide range of input voltages (typically from 10V to 42V), making it versatile for various projects. Its compact design and large heat sink ensure stable operation under heavy loads and continuous duty cycles. This driver is widely used in applications that require precise movement control, such as CNC machines, milling machines, and robotic arms.

• High Current Capacity: Supports up to 4.5A output per phase, ideal for driving large stepper motors.
• Adjustable Microstepping: Offers a variety of microstepping options to control motor smoothness and precision.
• Wide Input Voltage Range: Operates with input voltages between 10V and 42V, making it suitable for various setups.
• Built-in Protections: Includes overcurrent, overheating, and undervoltage protection to ensure safe operation.

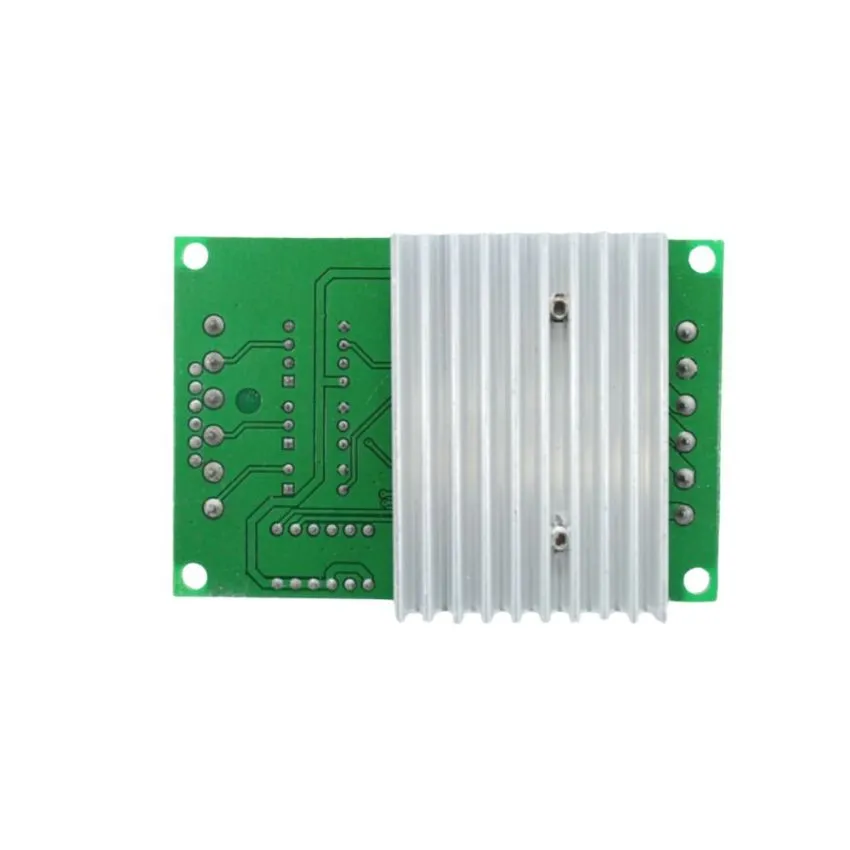

• Heat Sink for Thermal Management: The large heat sink helps dissipate heat during high-power operation, enhancing reliability.
• DIP Switch Configuration: Provides easy setting of current limits and microstepping resolution via onboard DIP switches.
