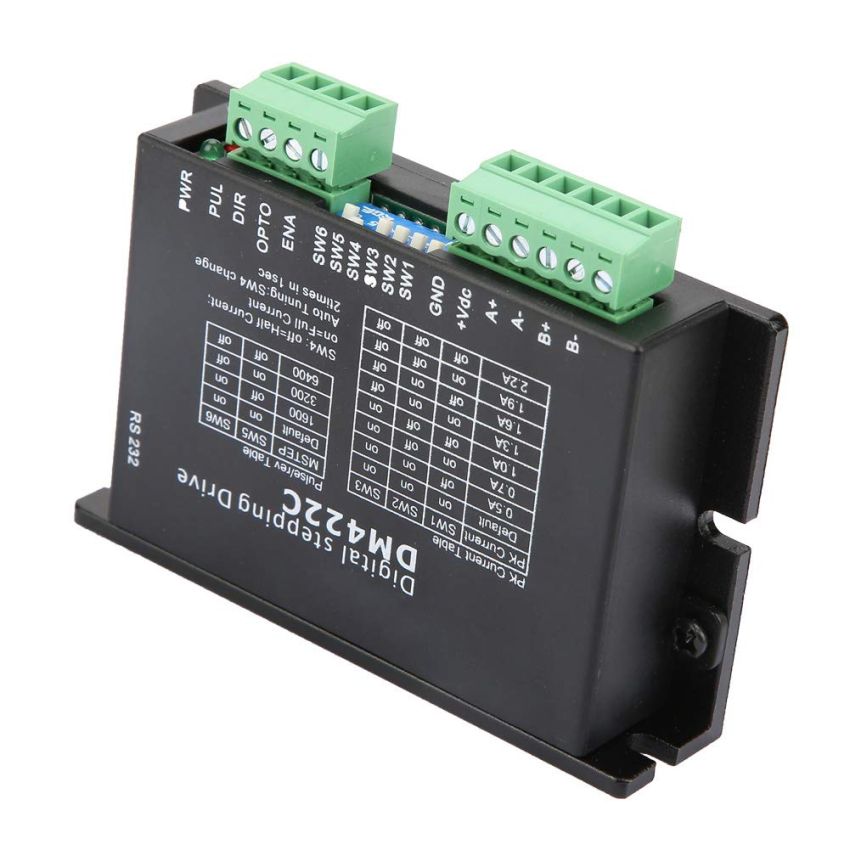

DM422C ,Digital Stepping Driver – Adjustable Peak Current, Pulse Resolution

The DM422C Digital Stepping Driver is a high-performance microstepping driver designed to work with various two-phase hybrid stepper motors. This driver features an adjustable peak current (from 0.5A to 2.2A) and pulse/revolution settings, allowing for precision control and smooth motor operation. The integrated microstep resolution and current setting switches make it suitable for a wide range of applications requiring accurate motor positioning. It supports a range of step resolutions, including 1600, 3200, and 6400 pulses per revolution, giving users flexibility depending on their requirements.

This stepper driver is ideal for use in CNC machinery, 3D printers, and other automated systems where precise motion control is essential. Its compact design and straightforward wiring make it easy to integrate into existing systems. Additionally, with features such as automatic tuning and full or half-current options, the DM422C ensures optimal performance in both high and low-speed operations.

• Adjustable Peak Current: Settable from 0.5A to 2.2A, providing versatility for different motor sizes and loads.

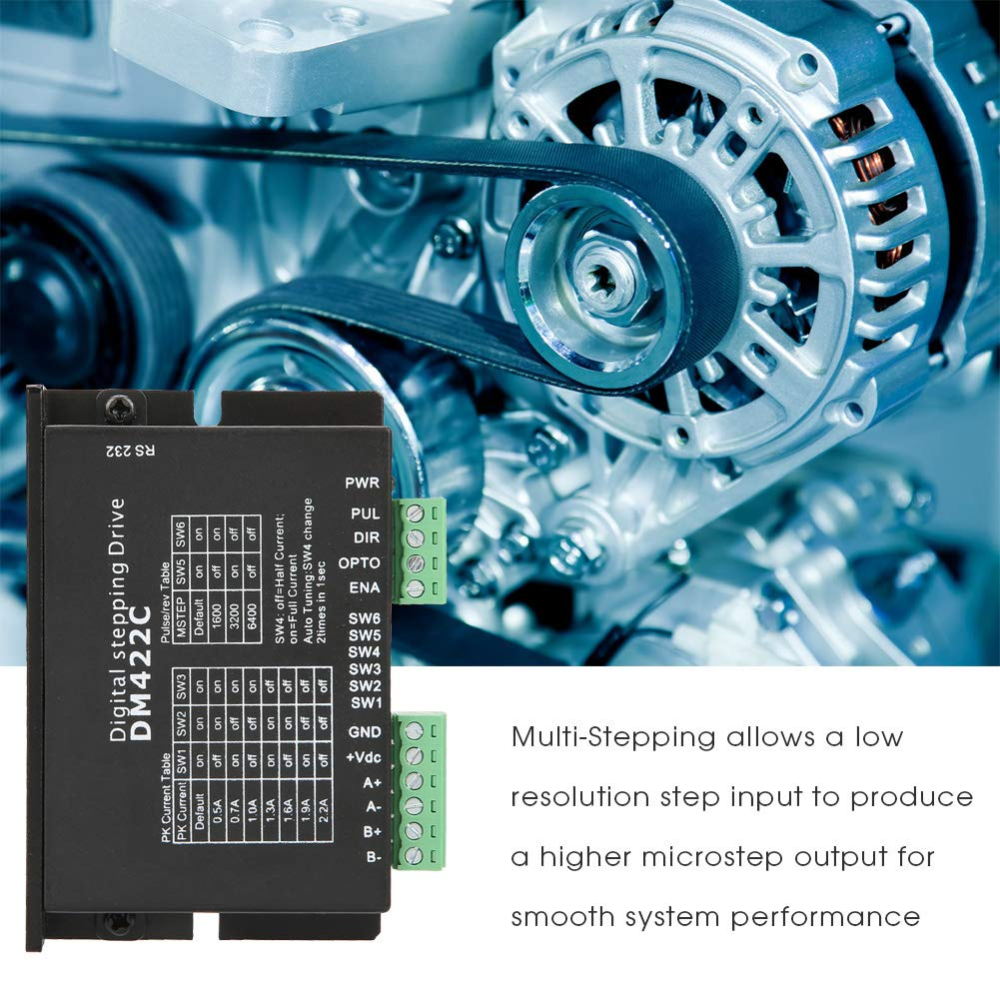

• Microstepping Control: Selectable pulse resolutions of 1600, 3200, and 6400 pulses per revolution for enhanced motor precision.
• Easy Configuration: Dip switches allow quick setup for current and pulse settings.
• Half/Full Current Options: SW4 switch enables half or full current mode for energy efficiency and performance.
• Compact Design: Small footprint makes it ideal for space-constrained applications while ensuring reliable performance.
• Auto Tuning Feature: Automatically adjusts the driver’s settings to optimize performance, reducing the need for manual tuning.
