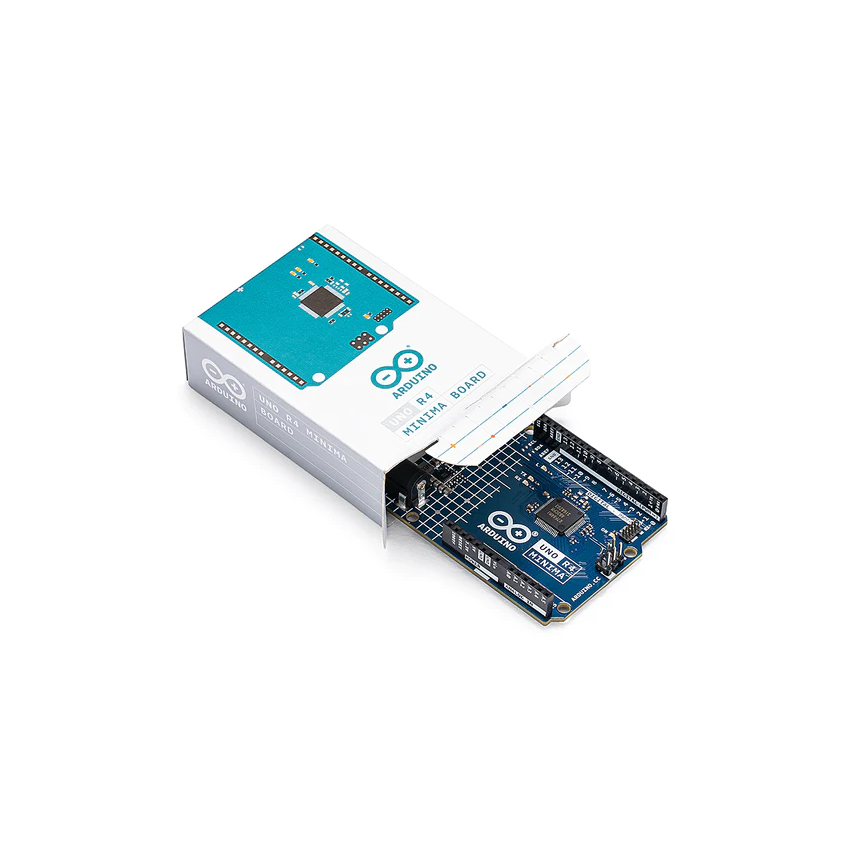

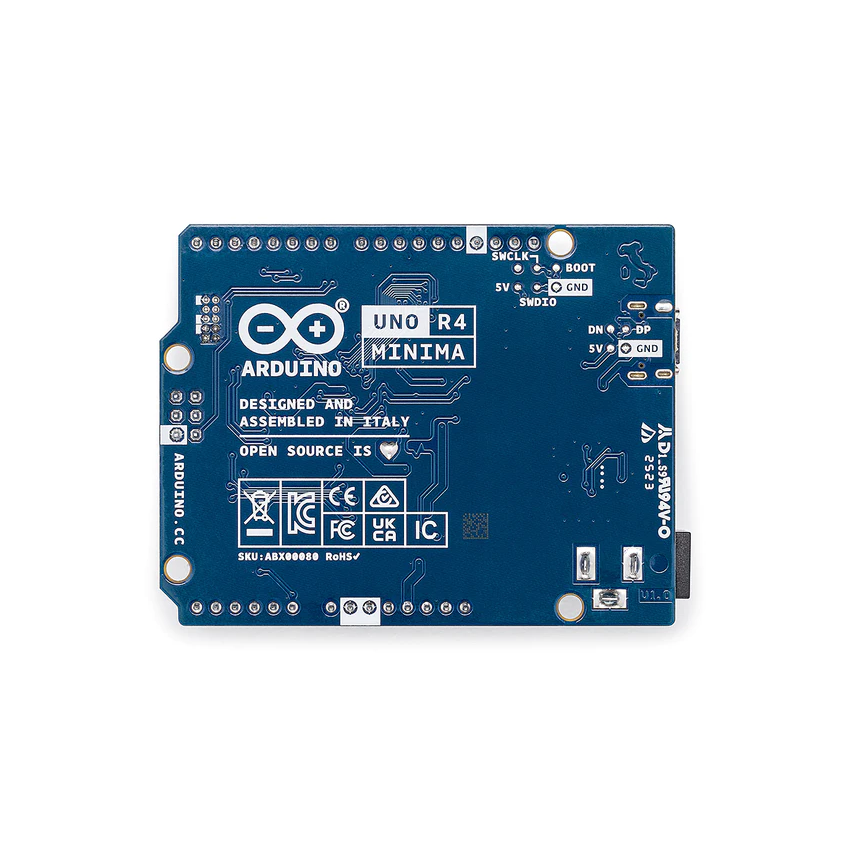

ABX00080, Arduino Uno Rev4 Minima

Arduino Uno Rev4 Minima (ABX00080)

The Arduino Uno Rev4 Minima is a powerful evolution of the classic Uno platform, upgraded with a 32-bit Renesas RA4M1 microcontroller for significantly improved performance and expanded memory. While maintaining full compatibility with existing Uno shields and accessories, this board introduces faster processing, enhanced peripherals, and greater voltage tolerance for more advanced applications.

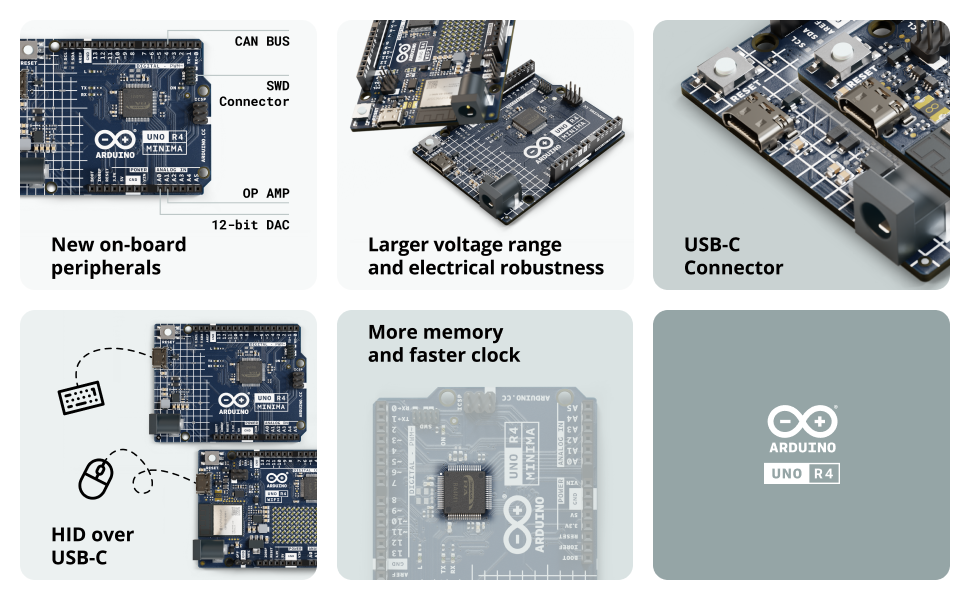

With a familiar UNO form factor and 5 V operating voltage, the Uno Rev4 Minima is an easy and reliable upgrade for beginners and experienced developers alike. New features such as a 12-bit DAC, CAN BUS, OP AMP, and built-in HID support unlock new possibilities for modern embedded and control projects.

Specification:

• Microcontroller: Renesas RA4M1 (32-bit)
• Clock Speed: 48 MHz
• Operating Voltage: 5 V
• Input Voltage Tolerance: Up to 24 V
• Flash Memory: 256 KB
• SRAM: 32 KB
• Data Memory: 8 KB
• On-board Peripherals: 12-bit DAC, CAN BUS, OP AMP
• USB HID Support: Keyboard and mouse emulation
• Debugging: SWD connector
• Form Factor: Standard Arduino Uno compatible
