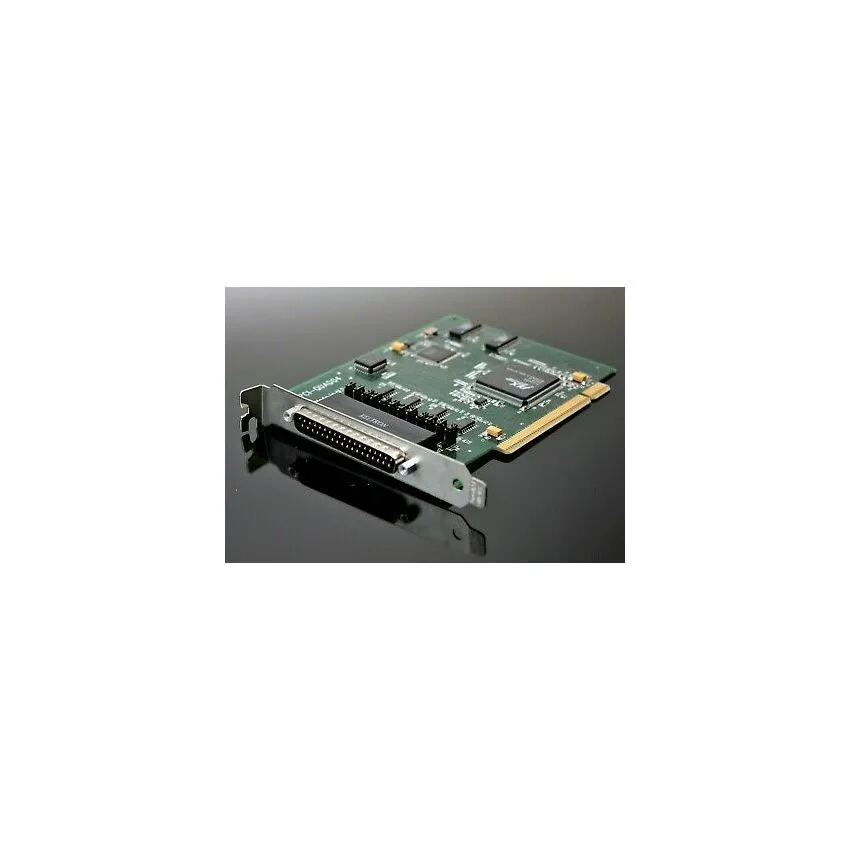

PCI-QUAD04, Quadrature Encoder Interface Board for PCI Bus - High-Precision Motion Control

Delivery in 2-5 Weeks.
Pre-Order
Out Of Stock
Add to Wish List

Notify me when this product is available:

Guarantee safe & secure checkout

The PCI-QUAD04 is a high-performance quadrature encoder interface board designed for real-time motion control applications. This PCI-based board allows precise position and velocity measurement by interfacing with up to four quadrature encoders, making it ideal for CNC machines, robotics, industrial automation, and motion tracking systems. Built for high-resolution incremental encoders, the PCI-QUAD04 supports both differential and single-ended inputs, ensuring compatibility with a variety of encoder types. Featuring Xilinx FPGA processing, the board ensures low-latency and high-speed data acquisition, enabling seamless integration into PCI-based control systems.

Key Features:

  • Supports Up to Four Quadrature Encoders – Interfaces with up to four independent quadrature encoders for motion tracking.
  • High-Speed PCI Bus Interface – Provides real-time position and velocity feedback with low latency.
  • Differential & Single-Ended Inputs – Supports RS422 differential and TTL single-ended encoders.
  • Xilinx Spartan FPGA Processing – Ensures high-precision signal decoding and fast real-time processing.
  • Flexible Encoder Resolution – Supports x1, x2, and x4 decoding modes for adjustable accuracy.
  • Industrial Motion Control Integration – Ideal for CNC systems, robotics, automation, and laboratory instrumentation.

Additional Specifications:

  • Type: PCI Quadrature Encoder Interface Board
  • Compatability: PCI Bus Systems, Quadrature Incremental Encoders (RS422 & TTL), Motion Control Software, CNC Systems, Servo Motor Positioning, and Industrial PCs.
