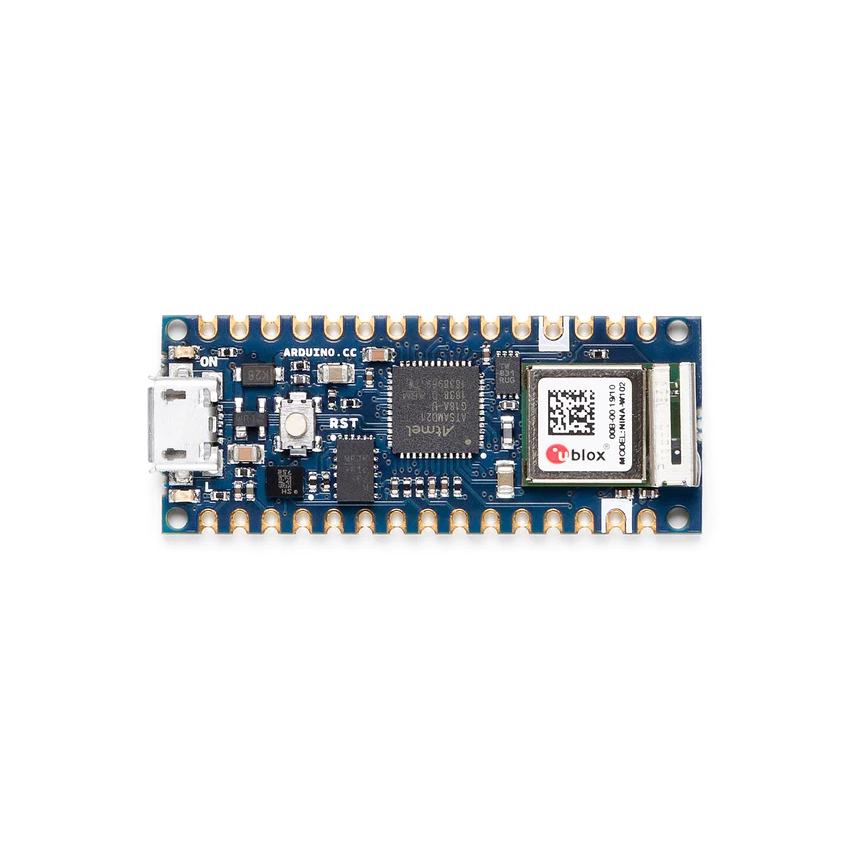

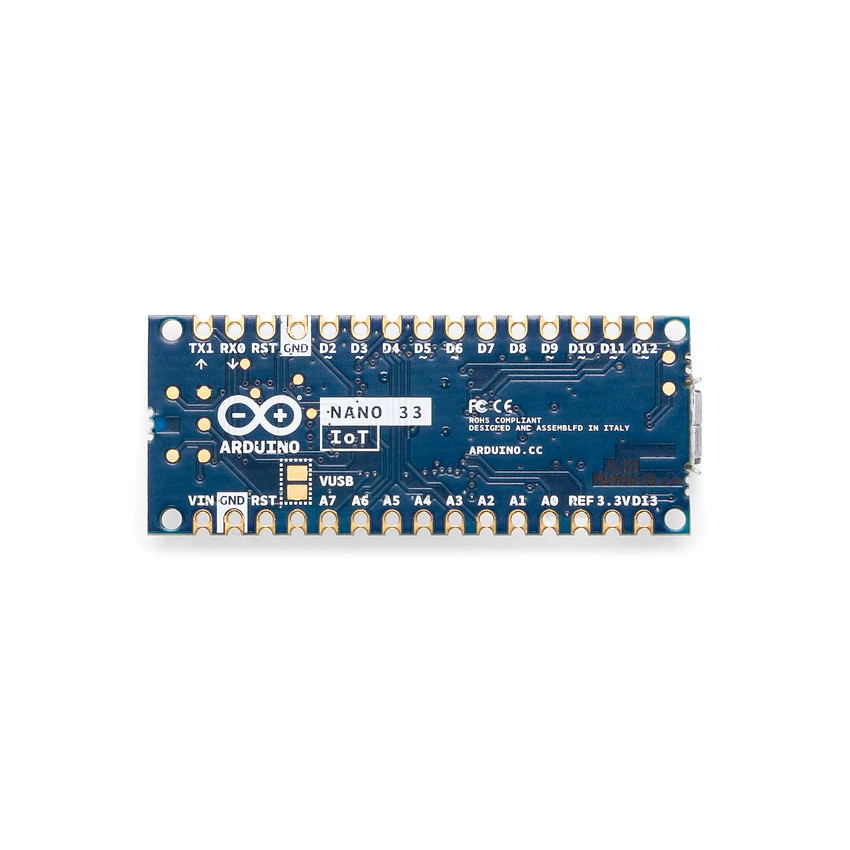

ABX00027 NANO 33 IoT BOARD

The Arduino Nano 33 IoT is the most accessible and cost-effective option for enhancing existing devices or creating new ones for the Internet of Things (IoT). Whether building a sensor network connected to your home router or developing a Bluetooth® Low Energy device for mobile data transmission, this board is a go-to solution for a variety of IoT applications.

WiFi and Arduino IoT Cloud

• The Nano 33 IoT can connect to WiFi networks effortlessly and can even function as an Arduino Access Point.
• The board supports integration with various cloud services, including Arduino's IoT Cloud, Blynk, IFTTT, AWS IoT Core, Azure, and Firebase.

Bluetooth® and Bluetooth® Low Energy

• The Nano 33 IoT acts as both a Bluetooth® and Bluetooth® Low Energy client and host device, enabling seamless wireless communication between devices.

Tech Specs

• Microcontroller: SAMD21 Cortex®-M0+ 32-bit low power ARM MCU
• Radio Module: u-blox NINA-W102
• Secure Element: ATECC608A
• Operating Voltage: 3.3V
• Input Voltage (limit): 21V
• DC Current per I/O Pin: 7mA
• Clock Speed: 48MHz
• CPU Flash Memory: 256KB
• SRAM: 32KB
• EEPROM: None
• Digital I/O Pins: 14
• PWM Pins: 11
• UART/SPI/I2C: 1 each
• Analog Input Pins: 8
• Analog Output Pins: 1
• External Interrupts: All digital pins
• IMU: LSM6DS3
• Dimensions: Length - 45mm, Width - 18mm
• Weight: 5g (with headers)
