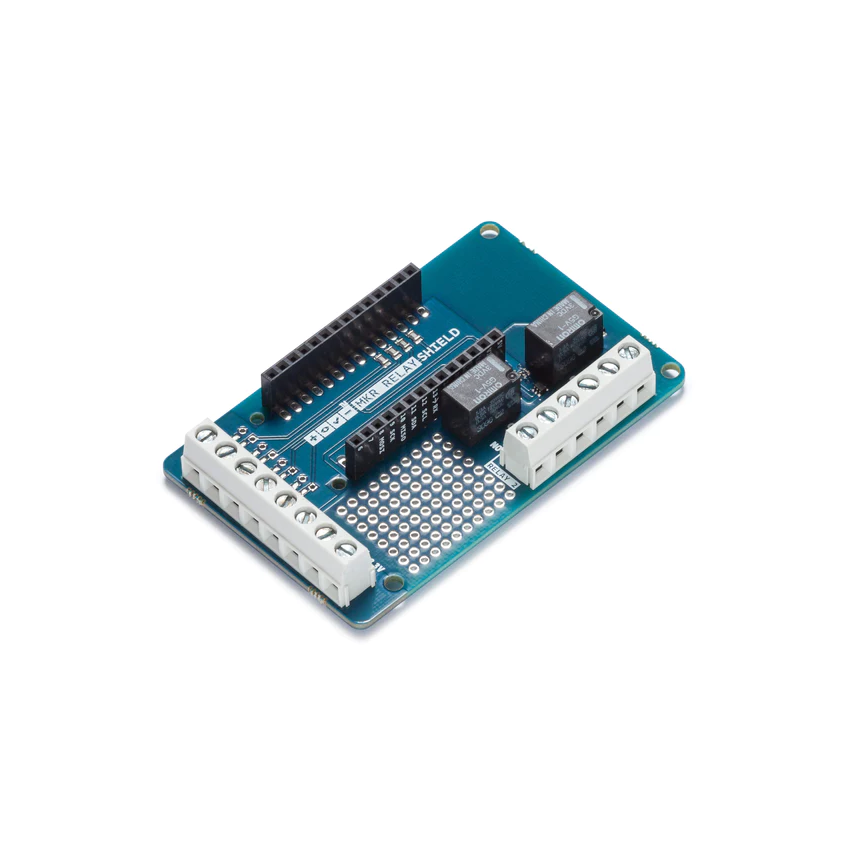

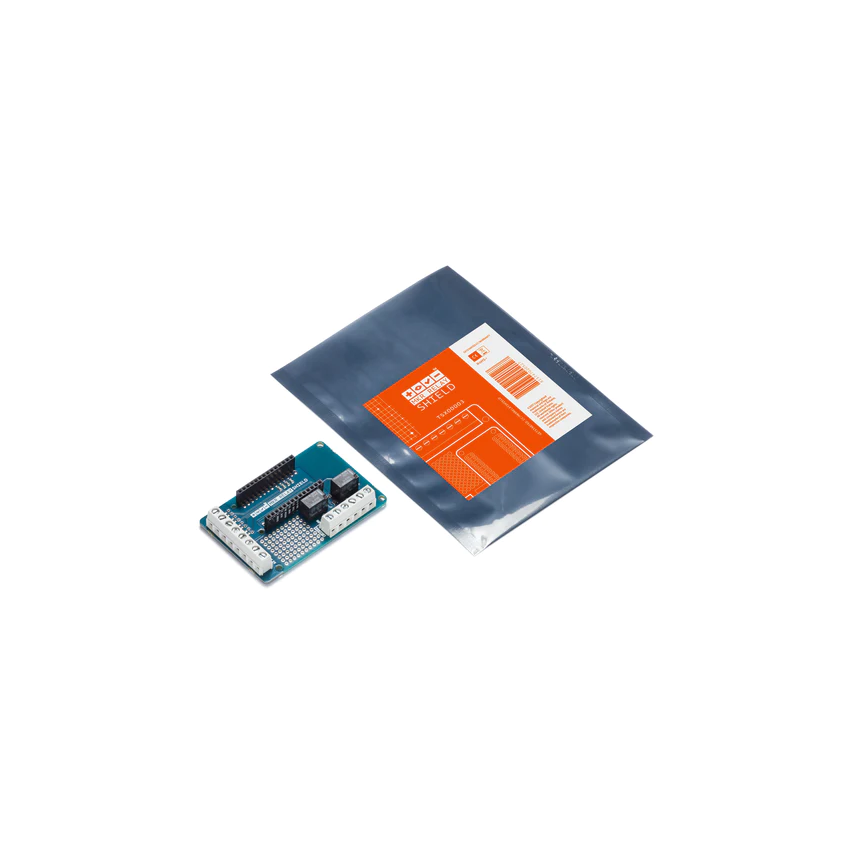

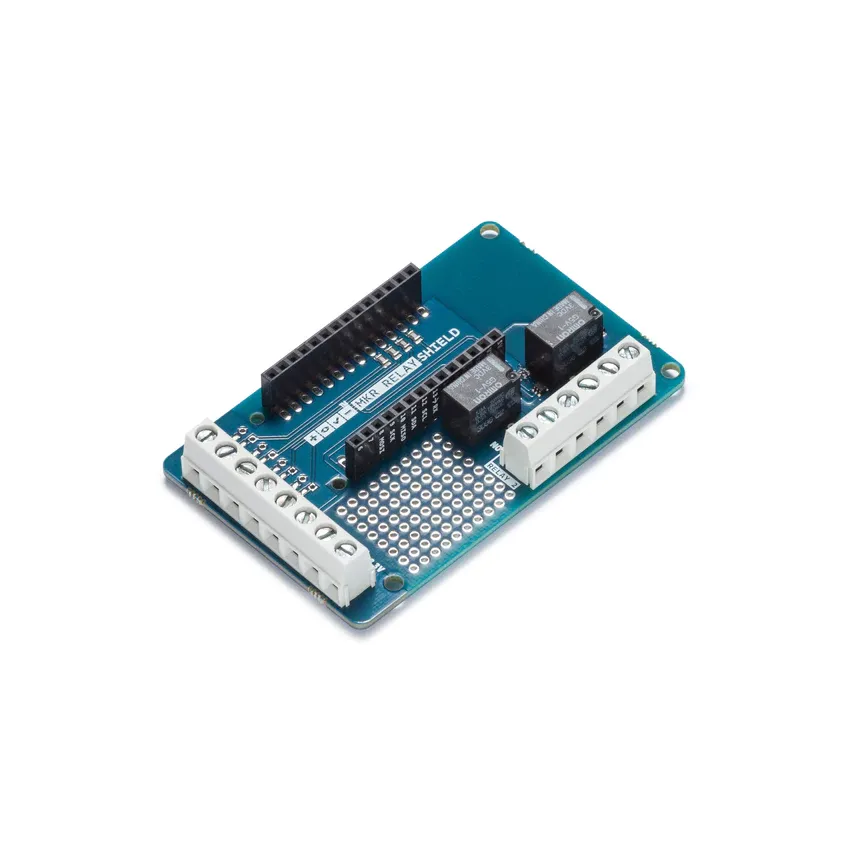

MKR RELAY SHIELD
MKR RELAY SHIELD
MKR RELAY SHIELD
MKR RELAY SHIELD

MKR RELAY SHIELD

SKU
DEDB0028
Brand
Arduino
Part Number
TSX00003
Categories:
Development Boards & Evaluation Tools, Development Boards, Arduino, Shields & Expansion Boards, Brands
Out of Stock
Be the first to review this product
Out Of Stock
Add to Wish List

Notify me when this product is available:

Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

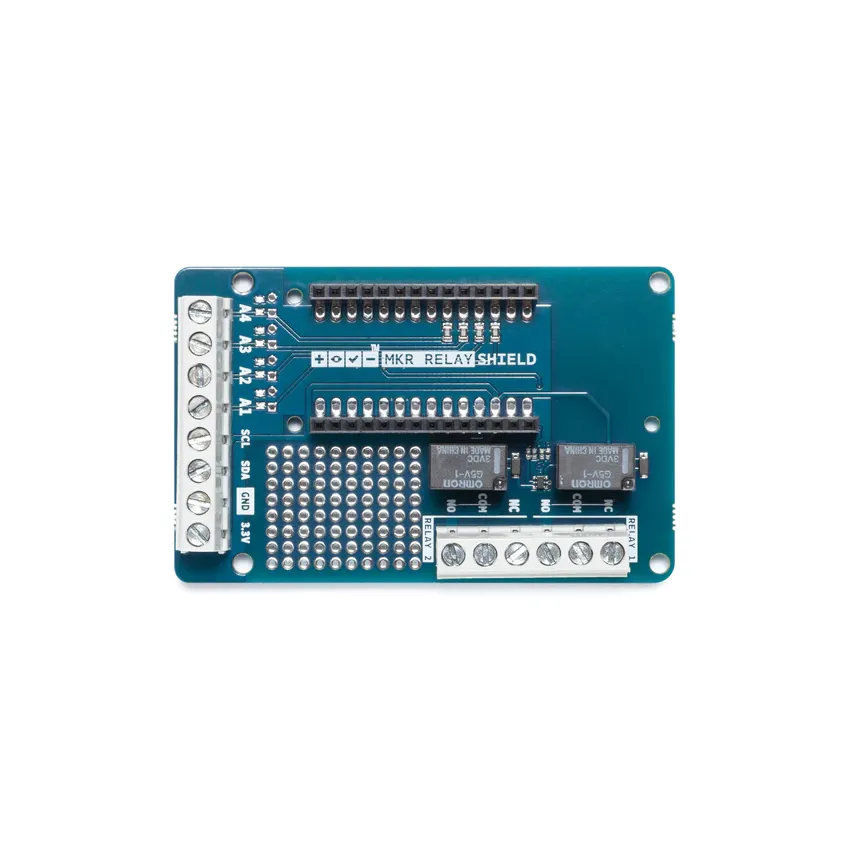

The MKR Relay Proto Shield is designed to integrate relays easily into MKR board-based projects, allowing users to control high-power devices. It includes two on-board relays and offers a small prototyping area for additional components. Specifications
  • Operating Voltage: 3.3V, supplied by the host board.
  • Relay Features: Two relays with Normally Open (NO), Common (COM), and Normally Closed (NC) connections.
  • Compatibility: Works with battery-powered boards.

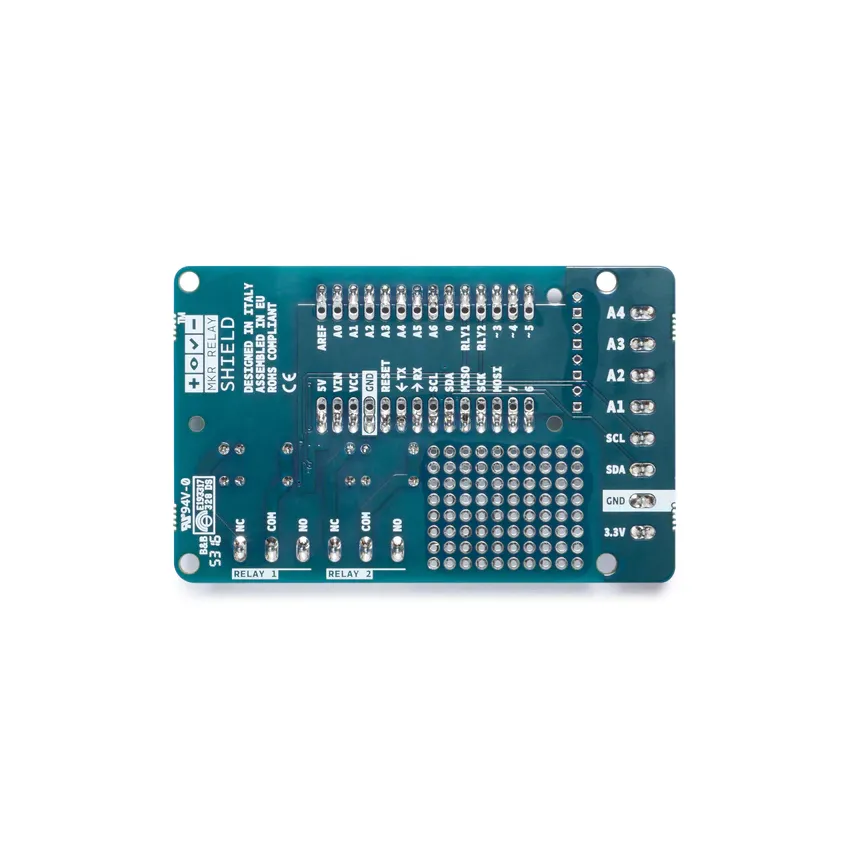

  • Connection Options: 8-position screw terminal blocks for A1 to A4 Analog inputs, SCL, SDA, GND, and 3.3V output, along with 6 screw terminal blocks for each relay (NO, COM, NC).
  • Electrical Specifications:
    • Current: 2 A
    • Max Operating Voltage: 24 VAC or 50 VDC
    • Max Operating Current: 1 A
    • Max Switching Capacity: 62.50 VA or 30W
Applications and Projects
  • Home Automation: Control appliances, lights, or electrical devices remotely or based on sensor inputs.
  • Gardening Projects: Automate plant watering systems using sensors for soil moisture and weather conditions.
  • Remote Control Projects: Use with MKR WiFi 1010 for remote control of devices like lighting or heating systems.
  • Industrial Applications: Automate industrial machinery, such as pumps and motors, based on sensor data.
  • Educational Projects: Teach students about relays, electromagnetism, and circuit design with practical hands-on demonstrations.
More Information
Brand Arduino
GTIN 1,
