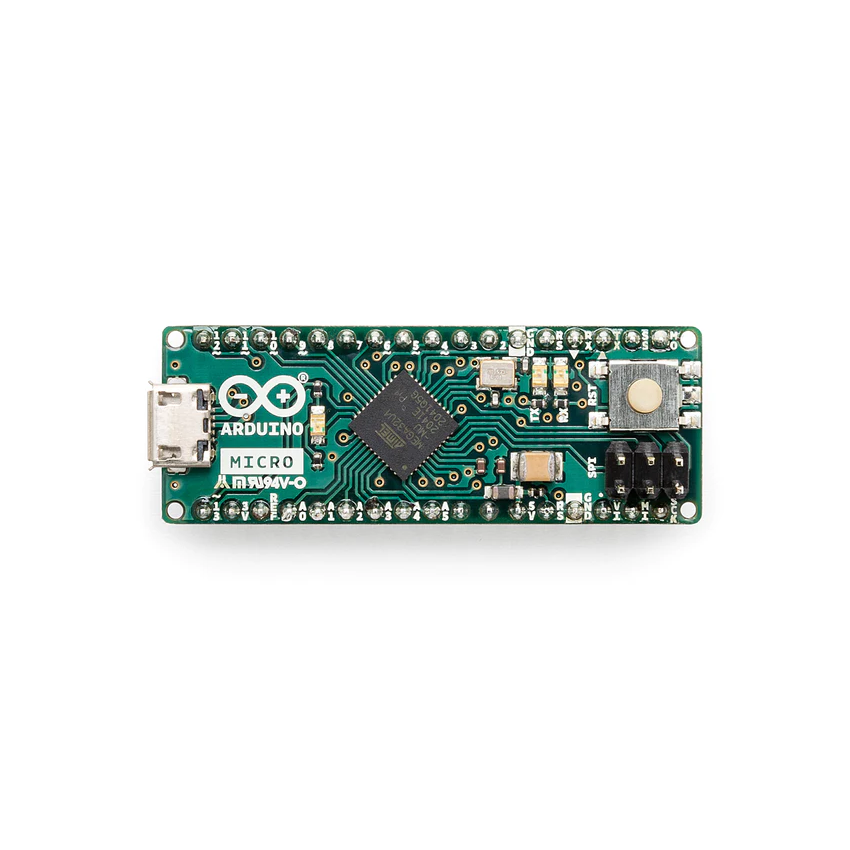

A000053 Arduino MICRO 5V

The Micro is a microcontroller board based on the ATmega32U4 (datasheet), developed in conjunction with Adafruit. It has 20 digital input/output pins (7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. Its form factor allows it to be easily placed on a breadboard.

The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial/COM port.

Key Features:

• Microcontroller: ATmega32U4
• Operating Voltage: 5V
• Input Voltage (Recommended): 7-12V

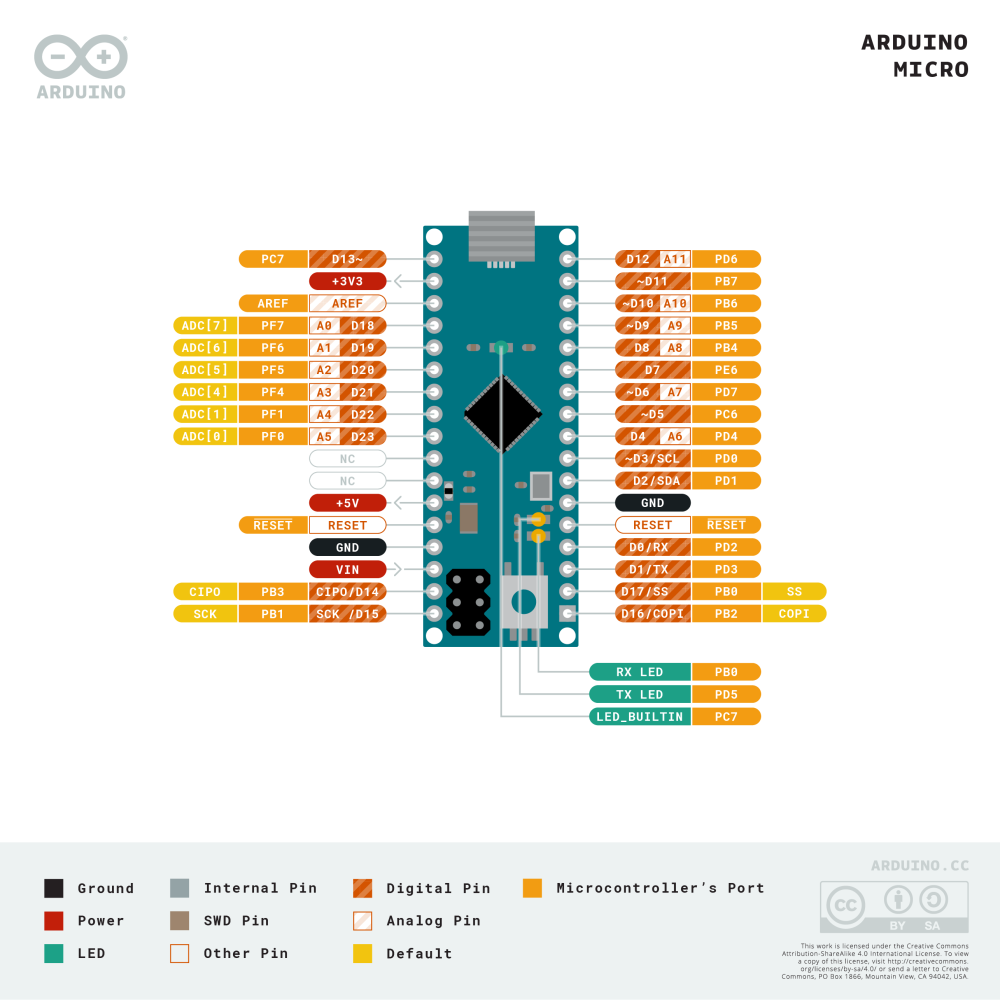

• Digital I/O Pins: 20
• PWM Channels: 7
• Analog Input Channels: 12
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 32 KB (ATmega32U4) of which 4 KB used by bootloader
• SRAM: 2.5 KB (ATmega32U4)
• EEPROM: 1 KB (ATmega32U4)
• Clock Speed: 16 MHz
• LED_BUILTIN: 13
• Length: 48 mm
• Width: 18 mm
• Weight: 13 g
