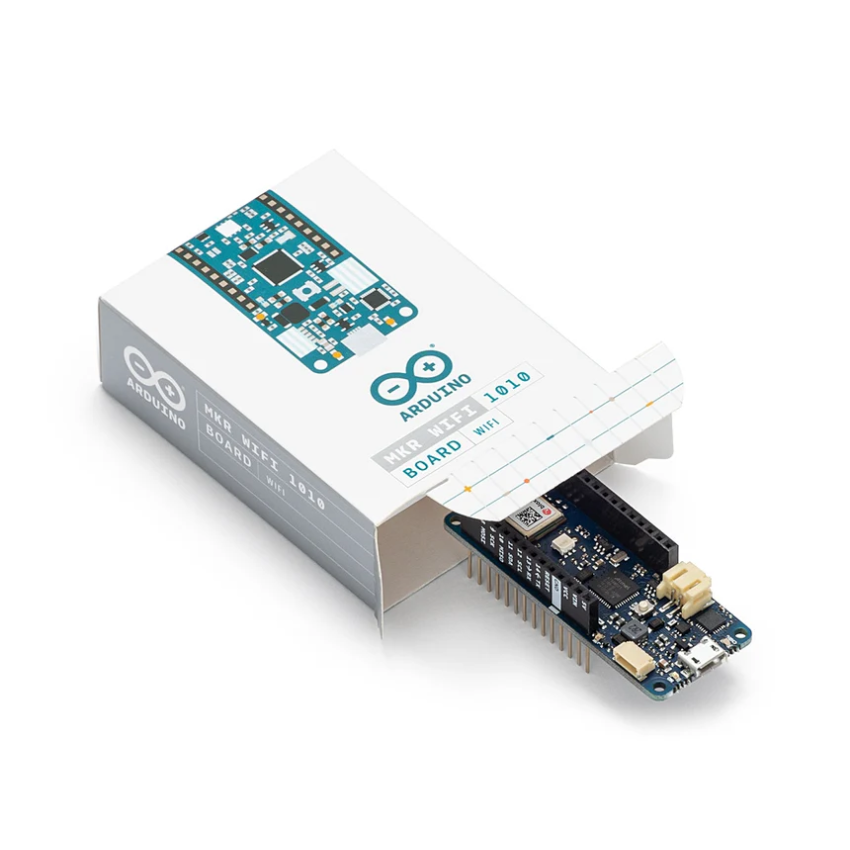

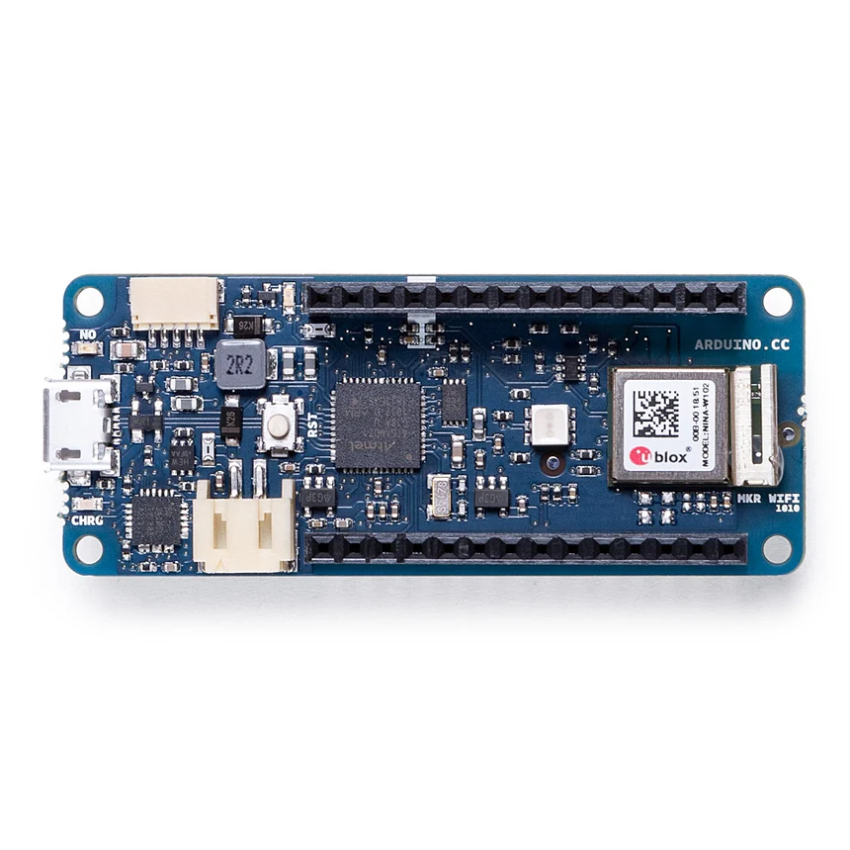

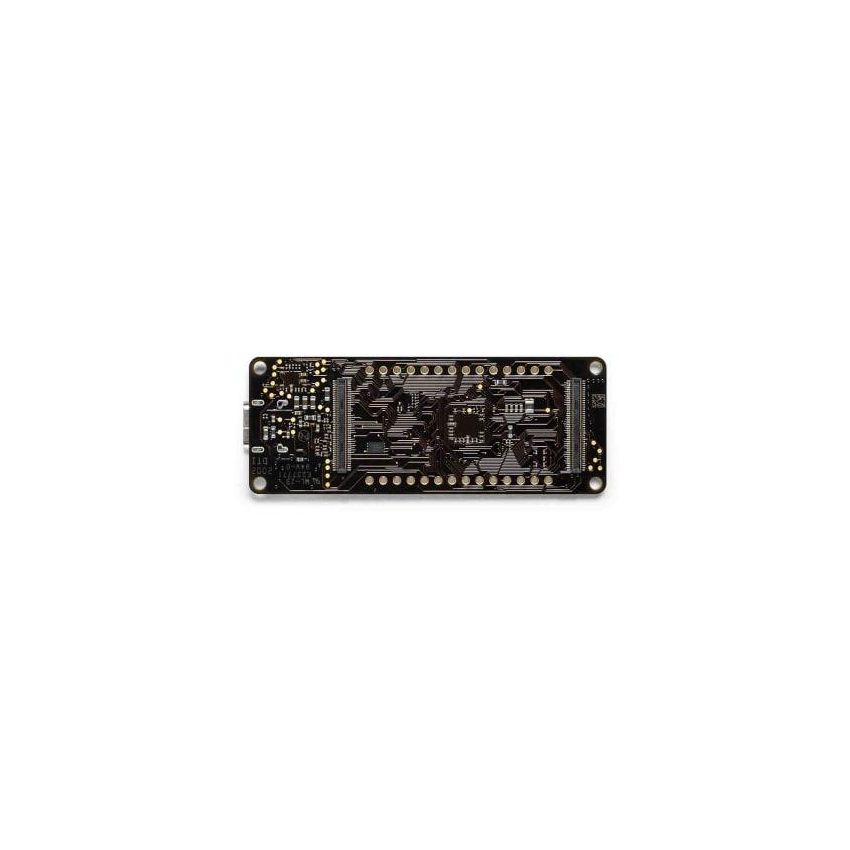

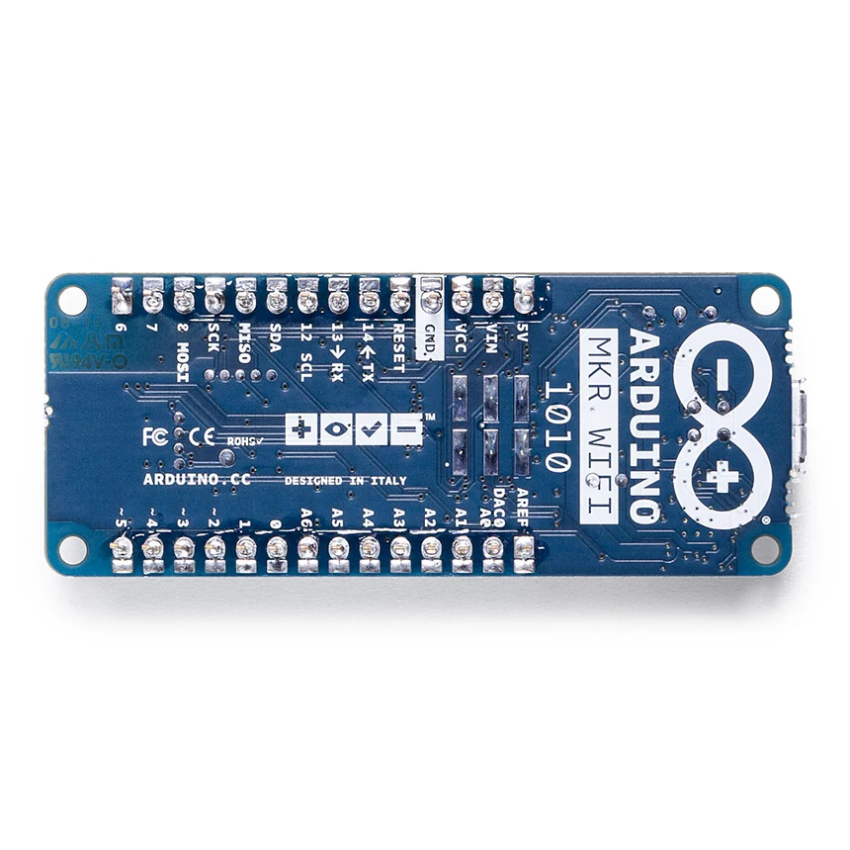

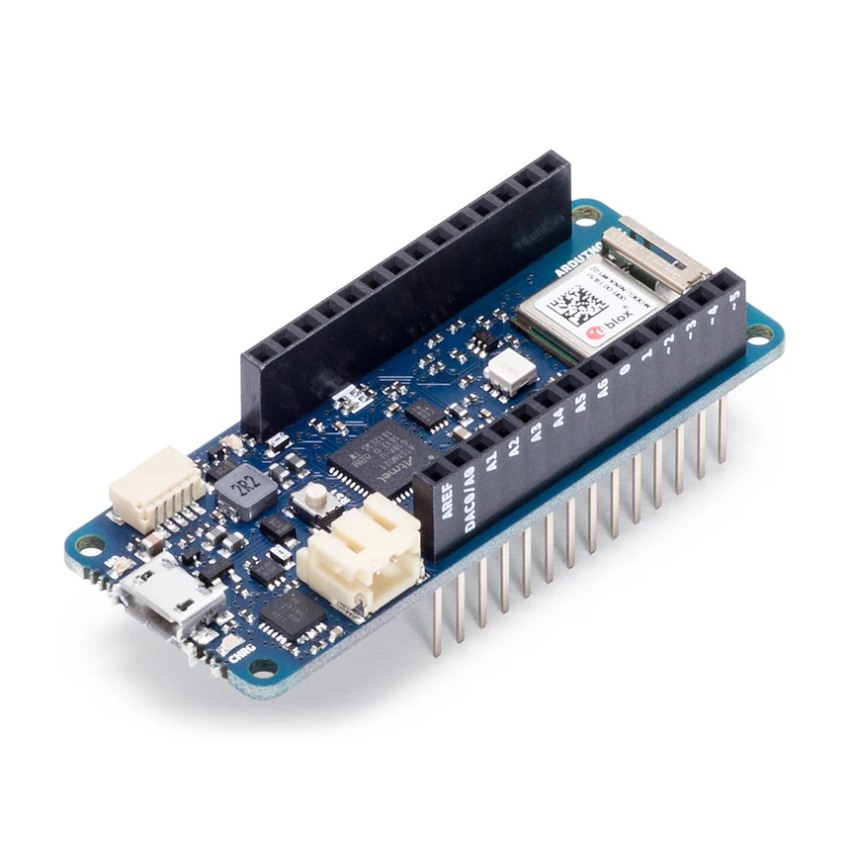

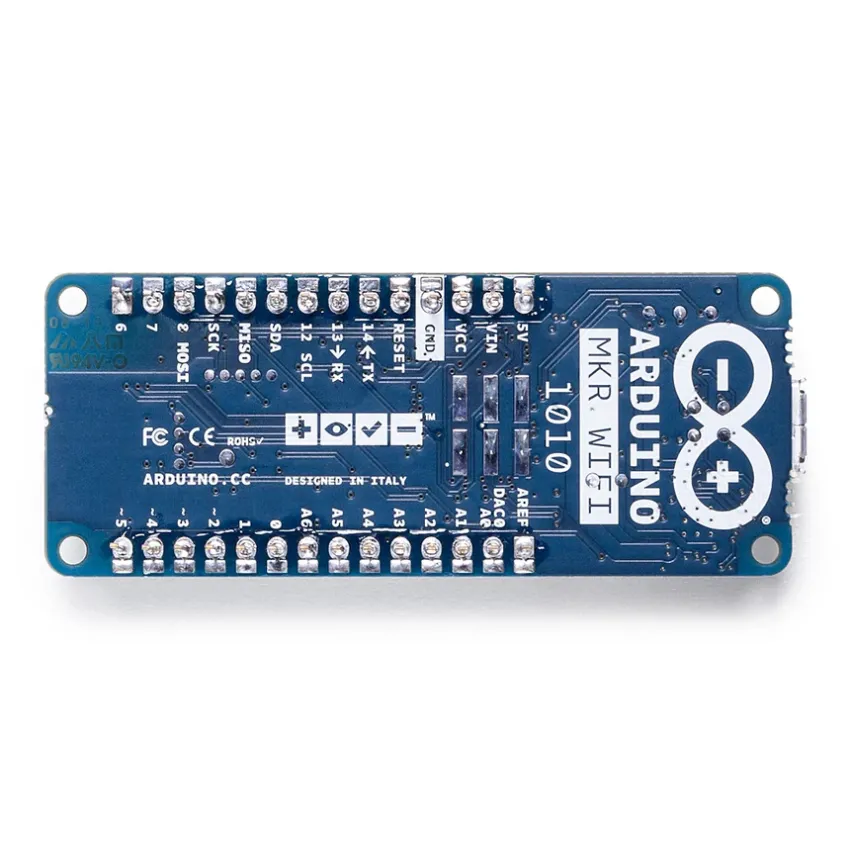

ABX00023 Arduino MKR WIFI 1010 BOARD

The Arduino MKR WiFi 1010 is the easiest point of entry for IoT and pico-network applications. Whether you are building a sensor network connected to your office or home router or creating a Bluetooth® Low Energy device to send data to a cellphone, this board is your one-stop solution for many basic IoT application scenarios.

• Bluetooth® and Bluetooth® Low Energy

  • The communications chipset on the MKR WiFi 1010 can function as both a Bluetooth® Low Energy and Bluetooth® client or host device. This dual capability is rare in microcontroller platforms. The ArduinoBLE library provides examples to create either a Bluetooth® central or peripheral device with ease.

• Battery Power

• The MKR WiFi 1010 can be powered via its USB port (5V) or through a Li-Po battery. It includes a Li-Po charging circuit that allows the board to run on battery power while simultaneously charging the battery from an external 5V source. The board automatically switches between power sources.

• Tech Specs

  • Microcontroller: SAMD21 Cortex®-M0+ 32bit low power ARM® MCU
  • Radio module: u-blox NINA-W102
  • Board Power Supply (USB/VIN): 5V
  • Secure Element: ATECC508
  • Supported Battery: Li-Po Single Cell, 3.7V, 1024mAh minimum
  • Circuit Operating Voltage: 3.3V
  • Digital I/O Pins: 8
  • PWM Pins: 13 (0 to 8, 10, 12, 18 / A3, 19 / A4)
  • UART: 1
  • SPI: 1
  • I2C: 1
  • Analog Input Pins: 7 (ADC 8/10/12 bit)
  • Analog Output Pins: 1 (DAC 10 bit)
  • External Interrupts: 10 (0, 1, 4, 5, 6, 7, 8, 9, 16 / A1, 17 / A2)
  • DC Current per I/O Pin: 7 mA
  • CPU Flash Memory: 256 KB (internal)
  • SRAM: 32 KB
  • EEPROM: None
  • Clock Speed: 32.768 kHz (RTC), 48 MHz
  • LED_BUILTIN: Pin 6
  • USB: Full-Speed USB Device and Embedded Host
  • Length: 61.5 mm
  • Width: 25 mm
  • Weight: 32 grams
