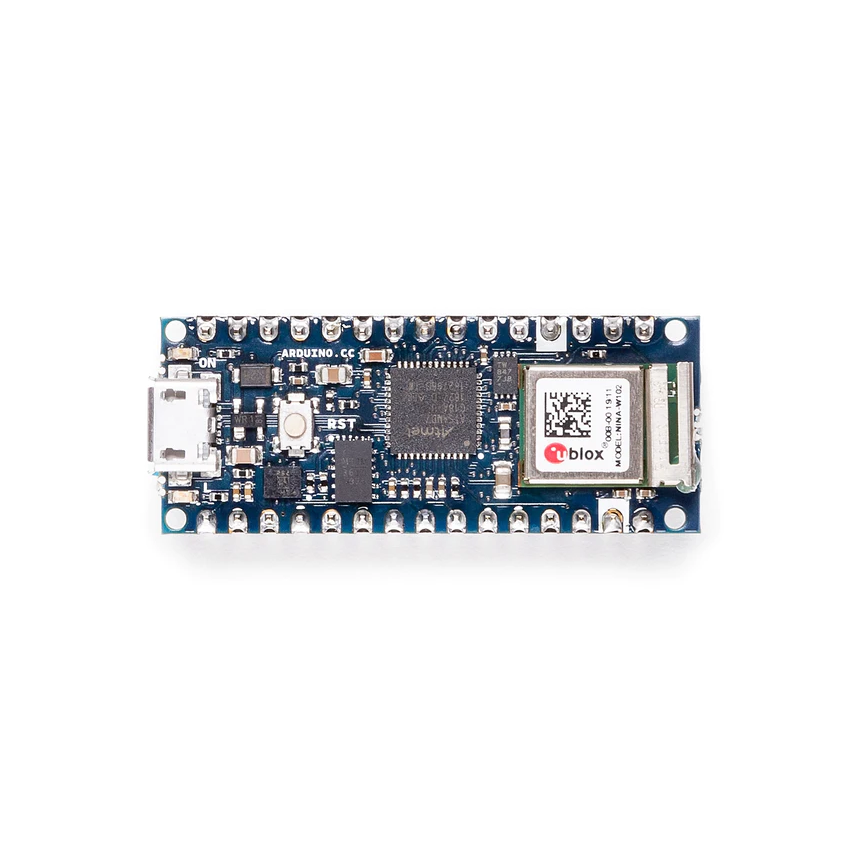

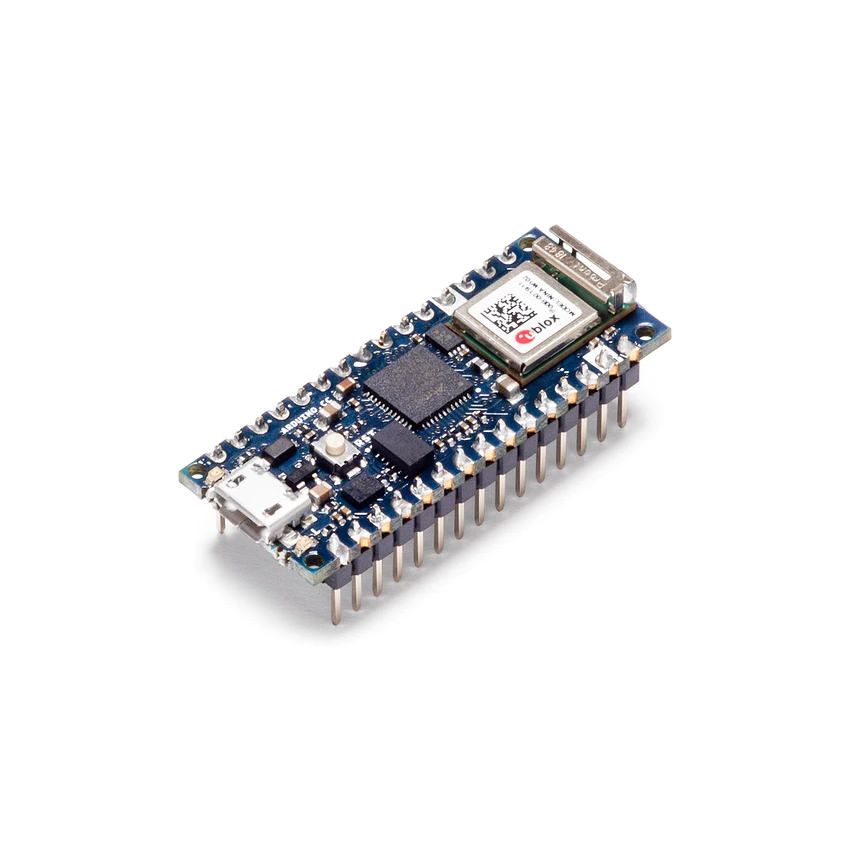

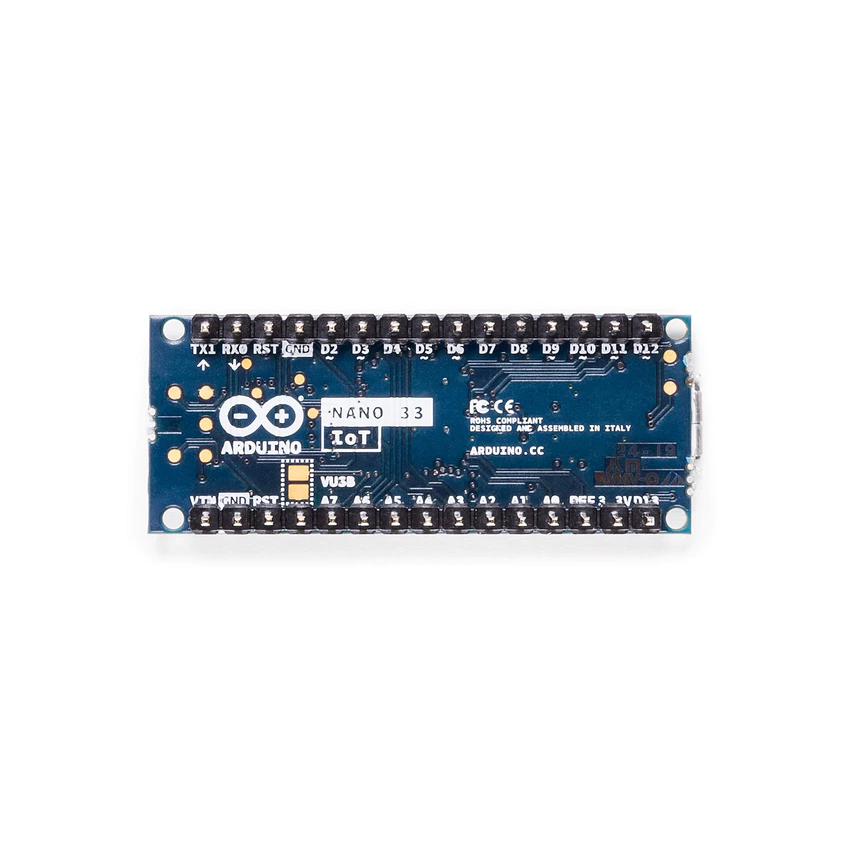

ABX00032 NANO 33 IoT BOARD WITH HEADERS

The Arduino Nano 33 IoT is an affordable and user-friendly platform for enhancing existing devices and developing new Internet of Things (IoT) applications. Ideal for building sensor networks and Bluetooth® Low Energy devices, this board provides a comprehensive solution for various basic IoT scenarios.

Technical Specifications

• Microcontroller: SAMD21 Cortex®-M0+ 32-bit low power ARM MCU
• Radio Module: u-blox NINA-W102
• Secure Element: ATECC608A
• Operating Voltage: 3.3V
• Input Voltage (limit): 21V
• DC Current per I/O Pin: 7 mA
• Clock Speed: 48MHz
• CPU Flash Memory: 256KB
• SRAM: 32KB
• EEPROM: None
• Digital Input/Output Pins: 14
• PWM Pins: 11 (2, 3, 5, 6, 9, 10, 11, 12, 16/A2, 17/A3, 19/A5)
• UART: 1
• SPI: 1
• I2C: 1
• Analog Input Pins: 8 (ADC 8/10/12 bit)
• Analog Output Pins: 1 (DAC 10 bit)
• External Interrupts: All digital pins (all analog pins can also be used as interrupt pins, but will have duplicated interrupt numbers)
• LED_BUILTIN: 13
• USB: Native in the SAMD21 Processor
• IMU: LSM6DS3
• Dimensions: Length 45 mm x Width 18 mm
• Weight: 5 g (with headers)
