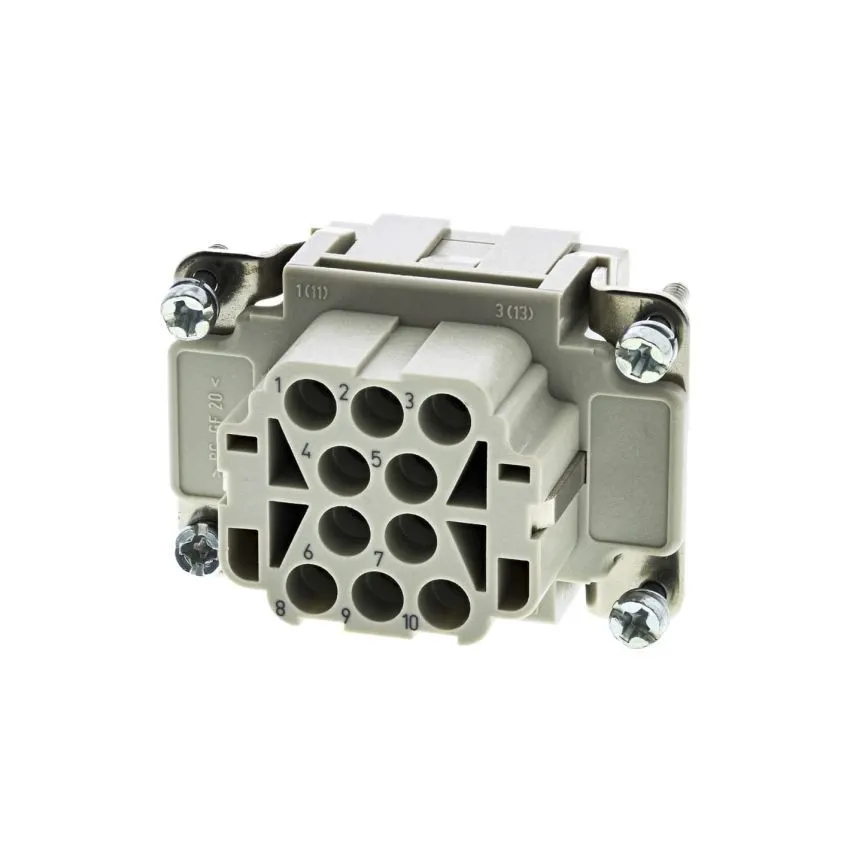

HARTING 09320103101 Han EE 10-Position Female Crimp Insert, 16A, 500V

The HARTING 09320103101 is a 10-position female crimp insert from the Han EE series, engineered for heavy-duty electrical applications. Each contact supports up to 16A at 500V, making it ideal for industrial environments requiring robust and reliable power connectors. The insert is constructed from high-quality polycarbonate material, providing durability and compliance with stringent safety standards, including a UL 94 V-0 flammability rating.​

Key Features:

• High Current Capacity: Supports up to 16A per contact, suitable for power-intensive applications.​
• Voltage Rating: Rated for 500V, accommodating various industrial power requirements.​
• Durable Construction: Made from polycarbonate (PC) with a flammability rating of UL 94 V-0, ensuring robustness and safety.​
• Wide Wire Compatibility: Accommodates conductor cross-sections from 0.14 mm² to 4 mm² (AWG 26 to AWG 12), offering flexibility in wiring.​
• Environmental Resilience: Operates within a temperature range of -40°C to +125°C, suitable for harsh environments.​
• Reliable Performance: Designed for over 500 mating cycles, ensuring long-term reliability.​

Additional Specifications:

• Type: Heavy-Duty Female Crimp Power Connector Insert
• Current Rating: 16A per contact
• Number of Phases: 3-Phase
• IP Rating: IP20
