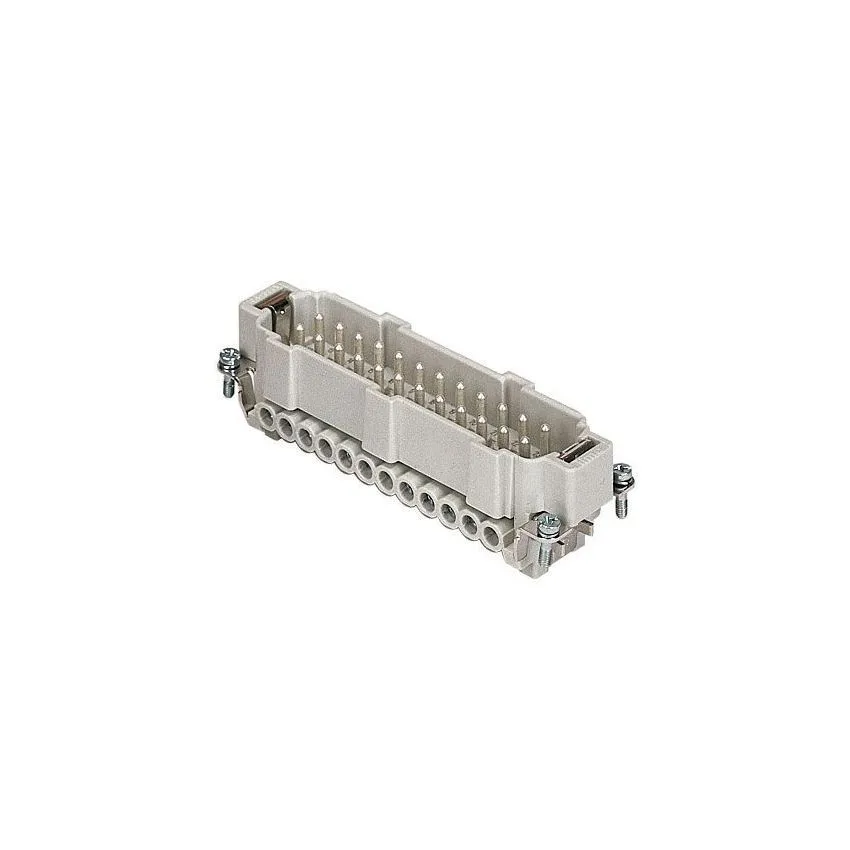

CNEM24T ,Male Insert – 24 Poles + PE, 16A, 500V, Screw Terminal

The ILME CNEM24T is a heavy-duty male connector insert from the CNE series, designed for industrial automation, power distribution, and control panel applications. It features 24 poles plus protective earth (24P+E), supporting up to 16A at 500V AC/DC. This insert uses a screw terminal connection for easy and secure wiring and is built with self-extinguishing polycarbonate material, ensuring high durability, mechanical stability, and resistance to harsh environments. The CNEM24T insert is compatible with ILME hoods, bases, and enclosures, providing IP65/IP66-rated protection when fully assembled.

Key Features:

• 24 Poles + Protective Earth (24P+E) – Ensures secure multi-circuit industrial connections.
• High Current & Voltage Ratings – Rated for 16A per contact at 500V AC, with 6kV impulse withstand voltage.
• Screw Terminal Connection – Simple and reliable wiring with tunnel-style termination.
• Heavy-Duty Industrial Grade – Constructed from self-extinguishing thermoplastic UL 94 V-0.
• IP65/IP66 Protection – Provides environmental sealing when used with ILME hoods and enclosures.
• Standardized Size – 104.27mm – Compatible with standard ILME enclosures, hoods, and frames.

Additional Specifications:

• Termination A: Screw Terminal
• Termination B: Mates With ILME Heavy Duty Connector Housings
