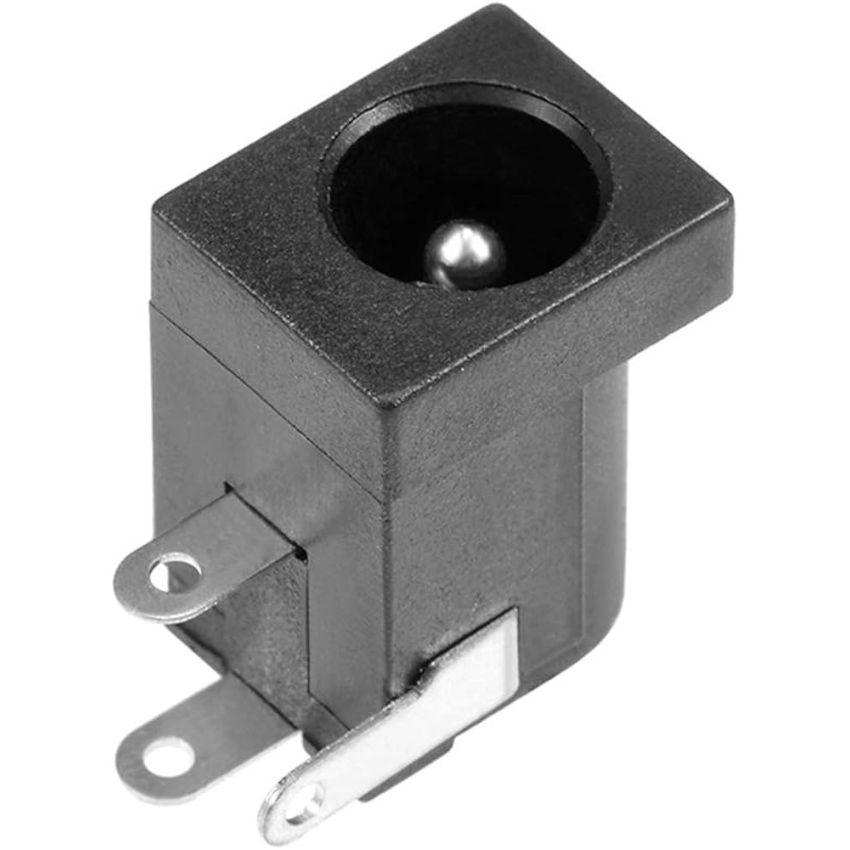

DC-005 Female DC Power Jack PCB Mount 2.1mm x 5.5mm Socket 3-Pin

The DC-005 is a standard PCB-mountable female DC barrel power jack, featuring a 2.1mm inner and 5.5mm outer diameter interface. It is designed for delivering low-voltage DC power (commonly 5V, 9V, 12V) from adapters or external power supplies to electronic circuits.

Key Features:

• 2.1mm inner / 5.5mm outer barrel jack for DC power input
• PCB mountable design with 3-pin configuration (center, sleeve, and switch)
• Compatible with 2.1mm and 2.5mm male DC plugs
• Built-in switch disconnects internal battery or load when plug is inserted
• High-strength thermoplastic housing ensures long life and insulation
• Suitable for Arduino, DIY electronics, embedded boards, and enclosures

Additional Specifications:

• Termination A: DC Barrel Jack
• Termination B: PCB Pins
• Number of conductors: 3
