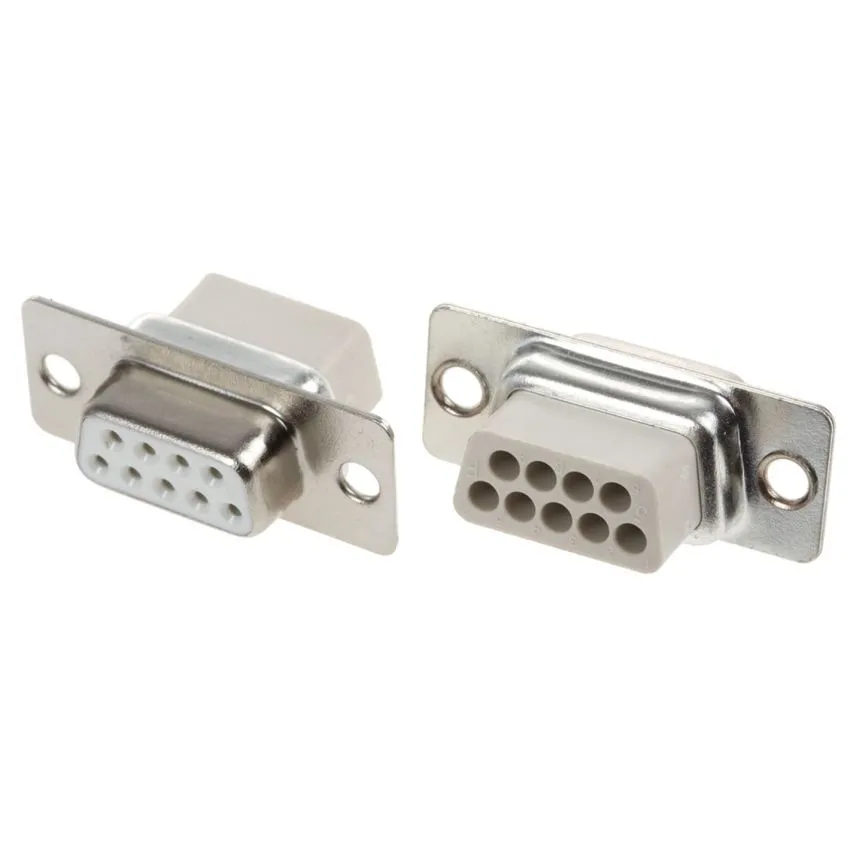

DBC09SS-NW, D-Sub Connector Housing Socket 9-Pin – 2.77mm Pitch, Straight, Crimp, MHD Series

The DBC09SS-NW is a high-quality D-Sub connector housing socket from MH Connectors' MHD Series, designed to provide a reliable connection in various industrial and commercial applications. With a 2.77mm pitch, this 9-position housing is suitable for crimp termination, allowing for secure and easy cable assembly. The straight orientation enhances compatibility with standard D-Sub connectors, while its nickel-plated steel shell ensures long-lasting durability and resistance to corrosion. The insulator is constructed from glass-filled polyester (UL94 V-0), offering high heat resistance and flame retardancy. The connector operates within a temperature range of -55°C to +105°C, making it suitable for demanding environments. Contacts are not preloaded and must be purchased separately. The housing is compatible with MHDBCTMR (plug) or MHDBCTFR (socket) crimp contacts, making it versatile for various electrical applications.

Key Features:

• 9-Pin D-Sub Connector Housing – Designed for reliable signal transmission in various applications.
• 2.77mm Pitch, Crimp Termination – Provides secure connections with easy cable assembly.
• Straight Orientation – Ensures compatibility with standard D-Sub connectors.
• Nickel-Plated Steel Shell – Offers excellent durability and corrosion resistance.
• Glass-Filled Polyester Insulator (UL94 V-0) – Enhances heat resistance and flame retardancy.
• Wide Operating Temperature Range (-55°C to +105°C) – Suitable for industrial and commercial environments.

Additional Specifications:

• Contact Material: Copper Alloy
• Colour: Metallic
• Number of Pins: 9
