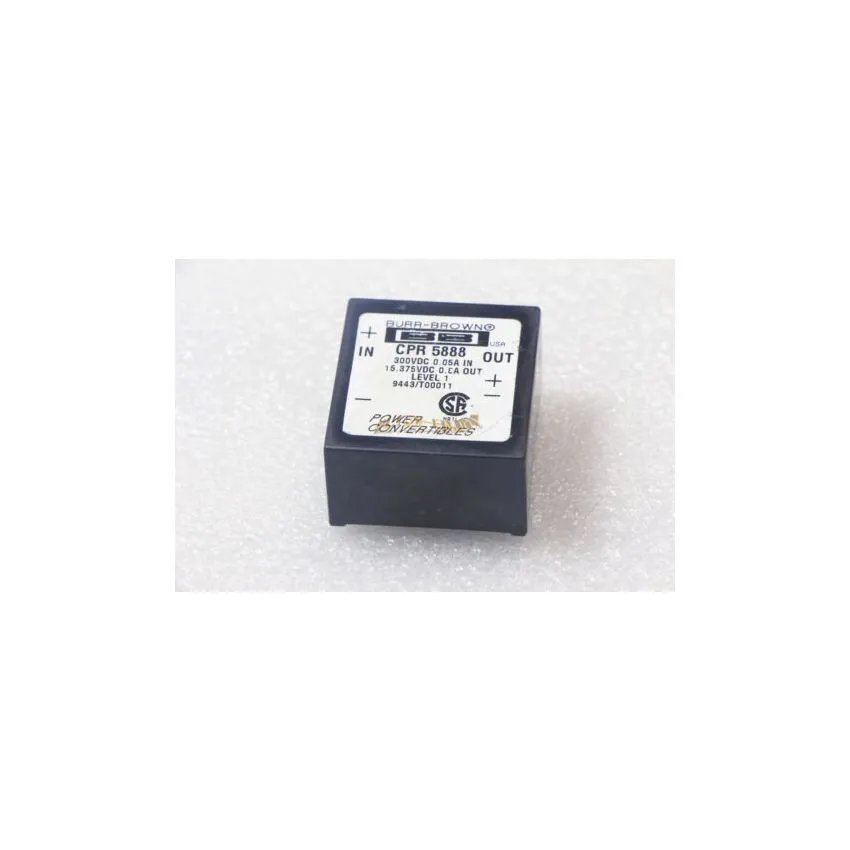

CPR5888 Burr-Brown DC-DC Converter, 300VDC Input, 15.375VDC Output, 0.8A Level 1

The Burr-Brown CPR5888 is a compact, encapsulated DC-DC converter designed for high-voltage input and low-voltage output requirements. With a 300VDC input voltage rating and 15.375VDC output at up to 0.8A, this converter is capable of delivering a maximum output power of approximately 12.3W. The device provides electrical isolation between input and output, which is critical in power-sensitive or industrial control systems.

Key Features:

• High Input Voltage: Accepts up to 300VDC input
• Low Voltage Output: Delivers 15.375VDC regulated output
• High Output Current: Supplies up to 0.8A output current
• DC Isolation: Electrically isolates input and output for system safety
• Compact Encapsulated Module: Durable construction for power system integration
• CSA Certified: Safety tested and NRTL/C listed

Additional Specifications:

• Termination A: Pin (Through-Hole)
• Termination B: Pin (Through-Hole)
• Orientation : Horizontal Mounting – Designed for standard horizontal PCB insertion via through-hole technology
