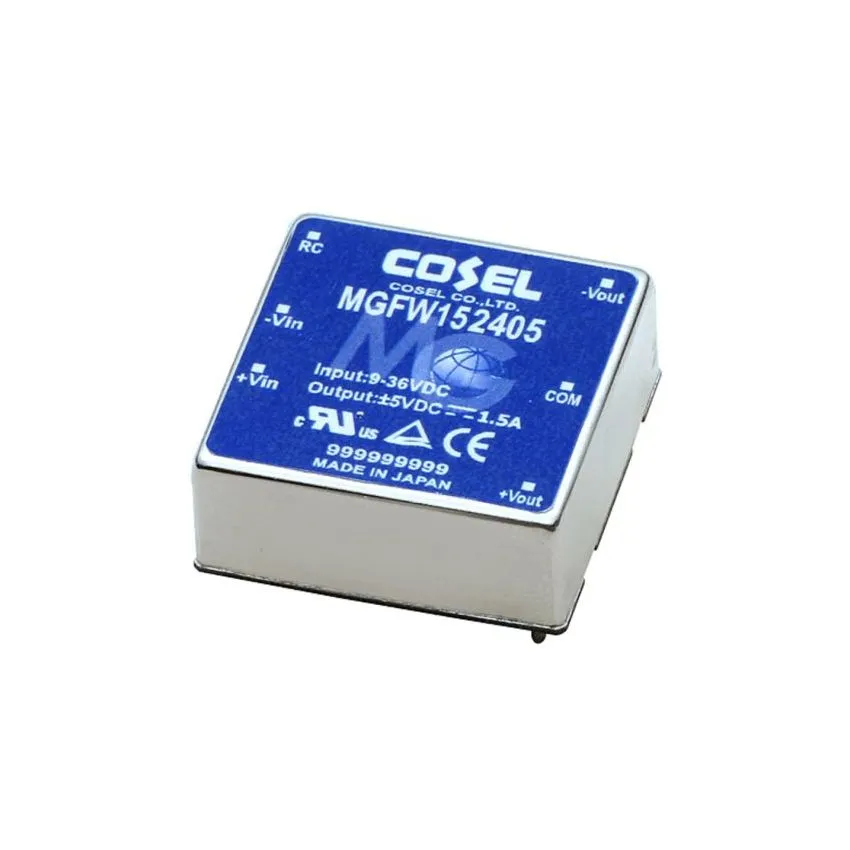

MGFW152405 Cosel DC DC Converter 15W 5V Output 9 to 36V Input

The Cosel MGFW152405 is a rugged 15W isolated DC-DC buck converter that delivers a tightly regulated 5V DC output from a wide 9V to 36V DC input range. This makes it ideal for diverse DC supply conditions, such as battery-driven and industrial automation systems. Its compact size and high 88% efficiency contribute to lower system power dissipation, optimizing thermal performance without sacrificing output stability. Engineered for reliability, the unit provides reinforced isolation of 1500V DC, ensuring safe electrical separation between input and output—a vital feature for noise-sensitive or floating systems. Its integrated protection features—including overvoltage, overcurrent, and short circuit—prevent damage during system anomalies. The MGFW152405 uses standard through-hole mounting for easy PCB integration in horizontally oriented designs. Compliant with international safety norms, this converter is well-suited for mission-critical embedded systems, remote monitoring devices, IoT power backbones, and other precision electronics applications.

Key Features:

• High Efficiency – Up to 88% power conversion efficiency ensures energy savings and low thermal output
• Wide 9–36V Input Range – Supports flexible DC supply voltages common in industrial and battery-powered systems
• Electrical Isolation – 1500V DC input-output isolation improves noise immunity and enhances protection
• Compact Design – 50.8 x 25.4 x 10.2 mm footprint ideal for tight-space applications
• Multiple Protections – Includes overvoltage, overcurrent, and short circuit protection mechanisms
• Extended Temperature Range – Operates in extreme environments from -40°C to +85°C

Additional Specifications:

• Termination A: Pin (Through-Hole)
• Termination B: Pin (Through-Hole)
• Orientation : Horizontal Mounting – Designed for standard horizontal PCB insertion via through-hole technology
