24V to 12V 30A DC/DC Step‑Down Converter Module – High‑Efficiency Buck Regulator, 360W Output

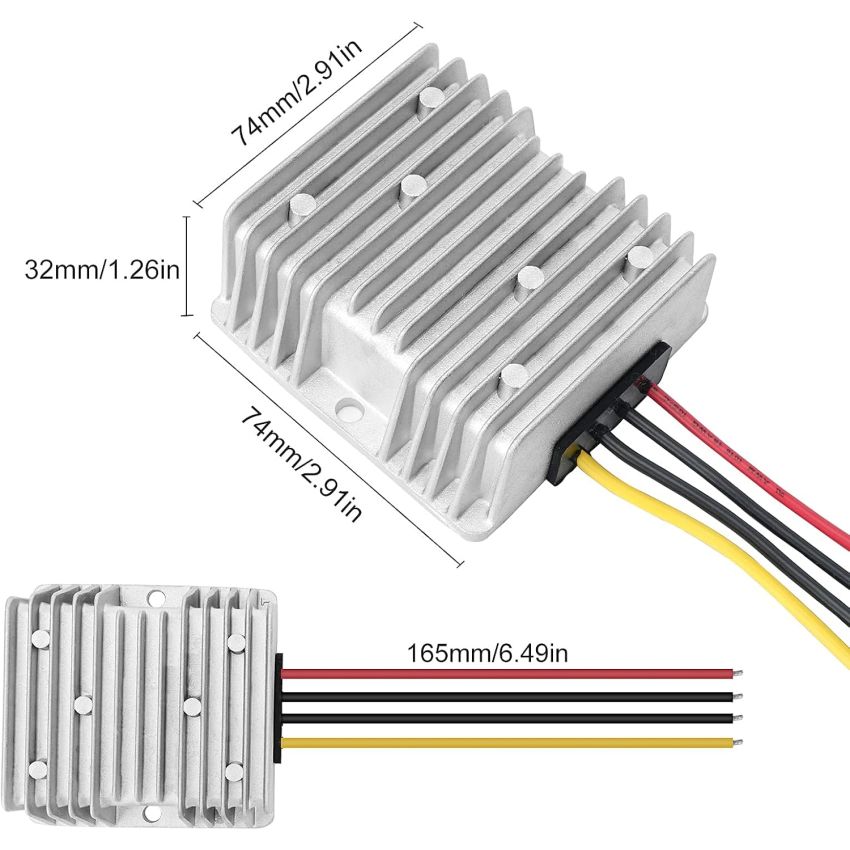

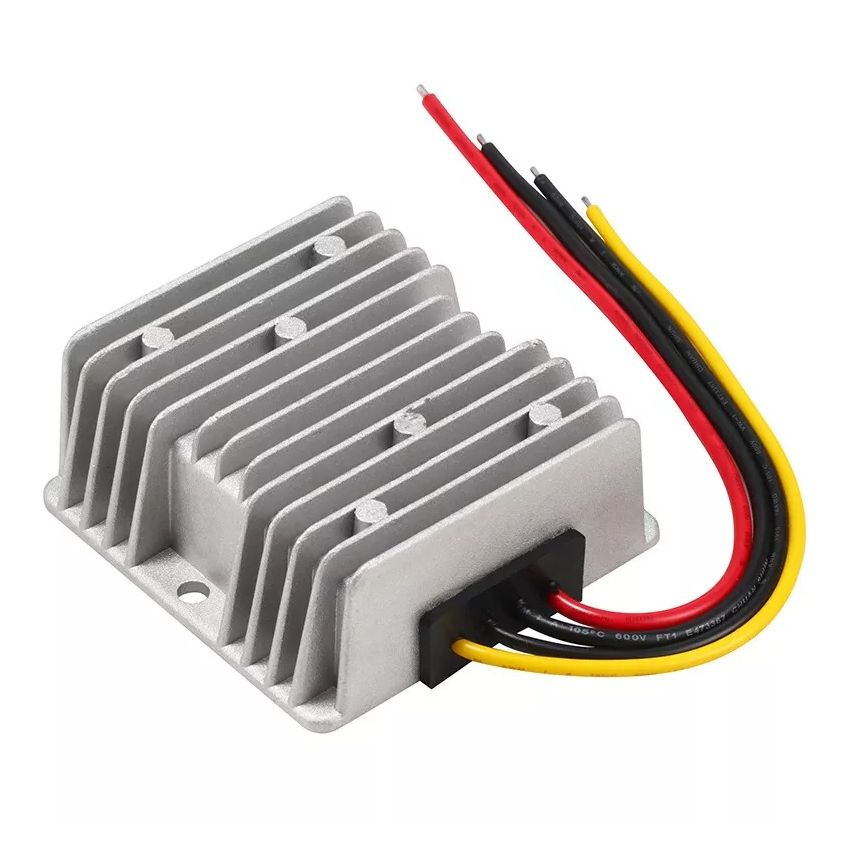

This high‑performance 24 V to 12 V DC/DC step‑down (buck) converter is designed for demanding power applications where a stable 12 V output is required from a 24 V input source. Rated for up to 30A (≈360W) output current, the unit features excellent conversion efficiency (≥90%) and built‑in protections including short‑circuit, over‑current, over‑voltage and over‑temperature shutdown. The converter accommodates a wide input range (typically 20‑36 V DC), making it ideal for vehicle, solar, battery‑bank, or industrial power‑train systems. It is housed in a compact aluminium module (e.g., 74 × 74 × 32 mm) with mounting holes and screw‑terminals for secure connection. Whether used for LED lighting, 12 V instrumentation, onboard vehicle electronics, or general DC system regulation, this buck converter offers a reliable and efficient solution for stepping down higher voltage to a robust 12 V rail.

Key Features:

• Converts 24 V input (20‑36V range) down to a regulated 12 V output at up to 30 A.
• High efficiency (90%+ typical) to minimise heat and maximise runtime.
• Heavy‑duty current capability suitable for 12 V loads up to ~360 W.
• Integrated protections: over‑current, over‑voltage, over‑temperature, short‑circuit.
• Compact size, rugged housing with screw‑terminals for reliable industrial/manual installation.
• Suitable for automotive, solar, battery‑bank, and industrial environments where 24 V systems need a 12 V output.

Additional Specifications:

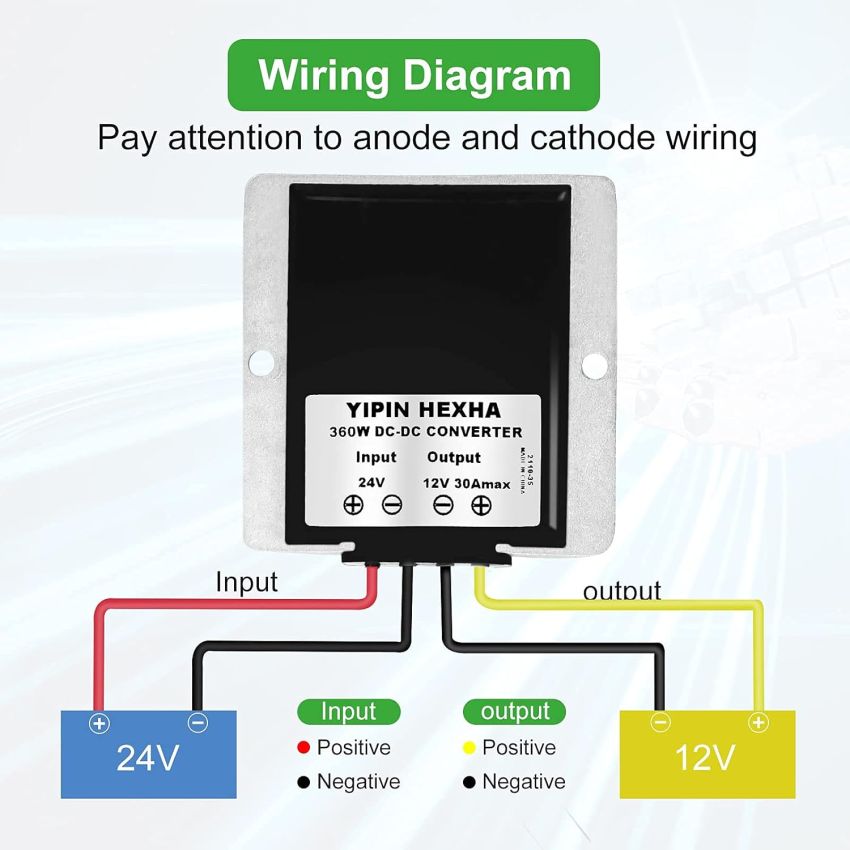

• Termination A: Input side – typically screw‑terminals or bolt terminals (24 V source)
• Termination B: Output side – typically screw‑terminals or bolt terminals (12 V load).
• Orientation : Module is generally horizontal mount with mounting holes/feet
