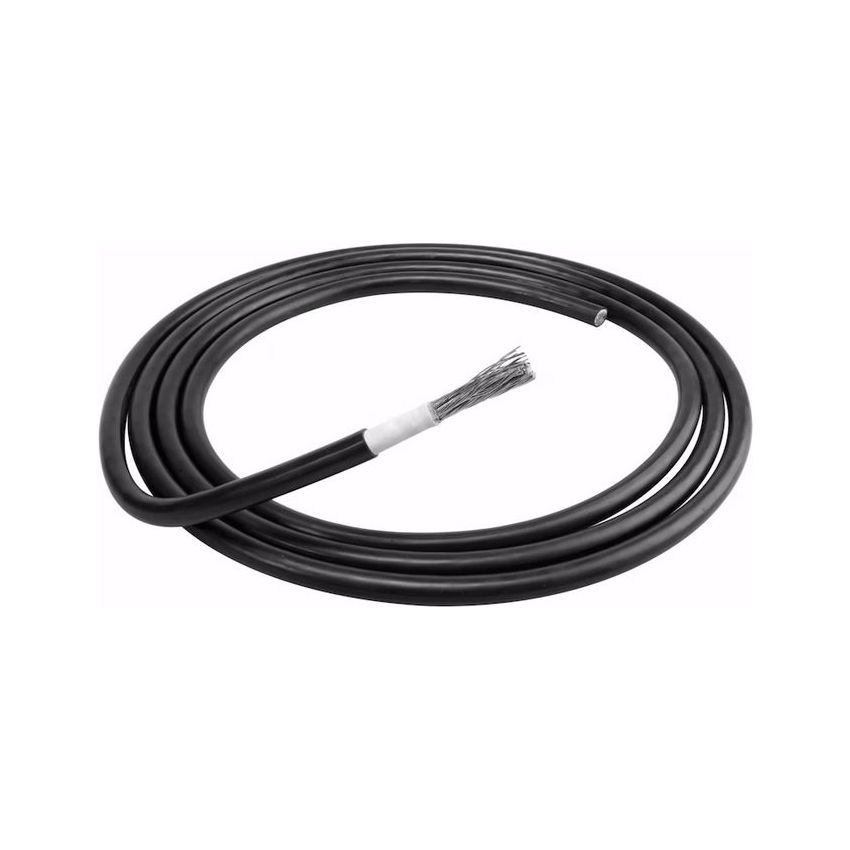

12545527 RADOX 4 GKWAX Cable 1x10mm² 1800V Flexible Single Core Cable

The RADOX 4 GKW-AX 12545527 cable is a high-performance, flexible single-core cable specifically engineered for demanding industrial and transportation environments. Featuring a 1x10 mm² conductor size, this cable supports a voltage rating of up to 1800V, making it suitable for power distribution in railways, control cabinets, and renewable energy systems. Its core is made from fine-stranded, tinned copper (Class 5), ensuring excellent flexibility and long service life even under constant vibration and mechanical stress.

Key Features:

• Rated voltage up to 1800V for high-voltage industrial applications
• Flame retardant and halogen-free according to EN 50305 standard
• Class 5 fine-stranded tinned copper conductor for optimal flexibility
• Operating temperature range: –50°C to +120°C (fixed), up to +250°C (short circuit)
• Resistant to oils, fuels, acids, alkalis, ozone, and UV exposure
• RADOX insulation for enhanced thermal and mechanical performance

Additional Specifications:

• Type: Single Core High-Voltage Cable
• Size: 1x10 mm²
• Number of Cores: 1
• Flexibilty: Flexible
• Gauge: 8 AWG
