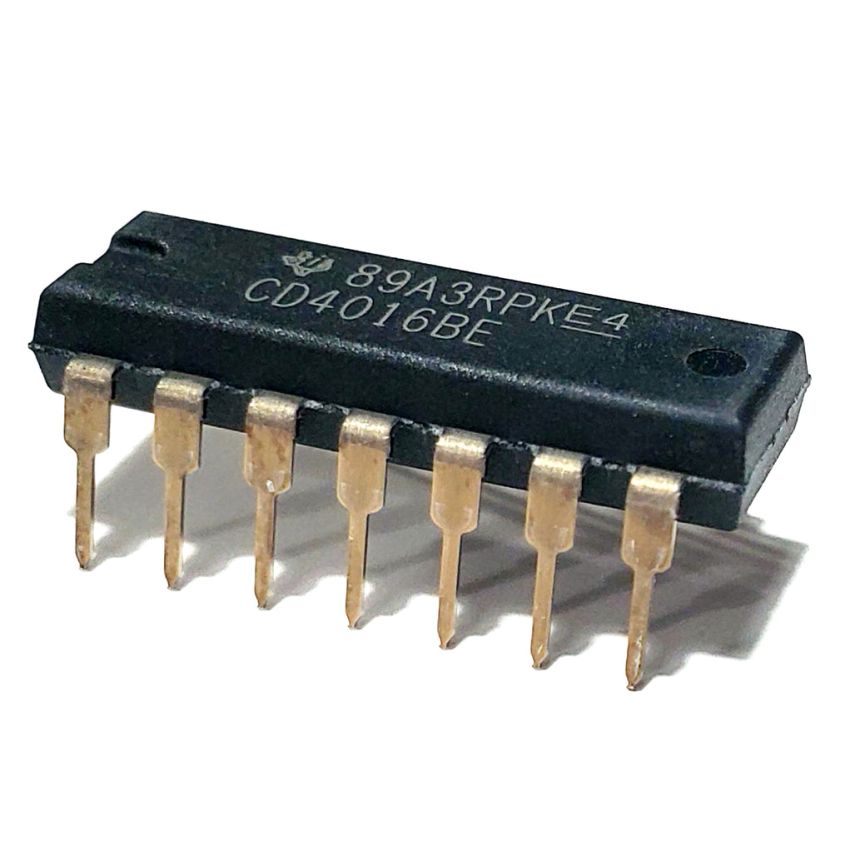

CD4016BE,CMOS Quad Bilateral Switch, 20V Digital/Analog Switching,DIP-14

The CD4016BE is a versatile CMOS quad bilateral switch designed for signal transmission or multiplexing in analog and digital systems. It features four independent switches, each with control signal inputs for precise on/off control. With a wide operating voltage range of 3V to 20V and low on-state resistance, it ensures efficient and reliable performance.

The device offers a high degree of linearity with minimal distortion, making it ideal for audio and high-frequency signal processing. Its low crosstalk and excellent isolation properties further enhance signal quality. Packaged in a compact DIP-14 form factor, the CD4016BE is easy to integrate into through-hole PCB designs, making it suitable for various industrial, automotive, and consumer electronics applications.

Key Features:

• CMOS Quad Bilateral Switch: Features four independent switches for digital and analog signal transmission or multiplexing.
• Wide Voltage Range: Operates from 3V to 20V, ideal for both low and high-voltage applications.
• Low On-State Resistance: Typical resistance of 280Ω ensures efficient signal transfer with minimal power loss.
• High On/Off Output Voltage Ratio: Achieves a 65dB ratio for superior signal clarity and reduced noise.
• Compact DIP-14 Package: Suitable for through-hole mounting, offering robustness and ease of integration.
• Versatile Applications: Ideal for signal switching, multiplexing, modulator squelch control, and digital-to-analog conversion.
