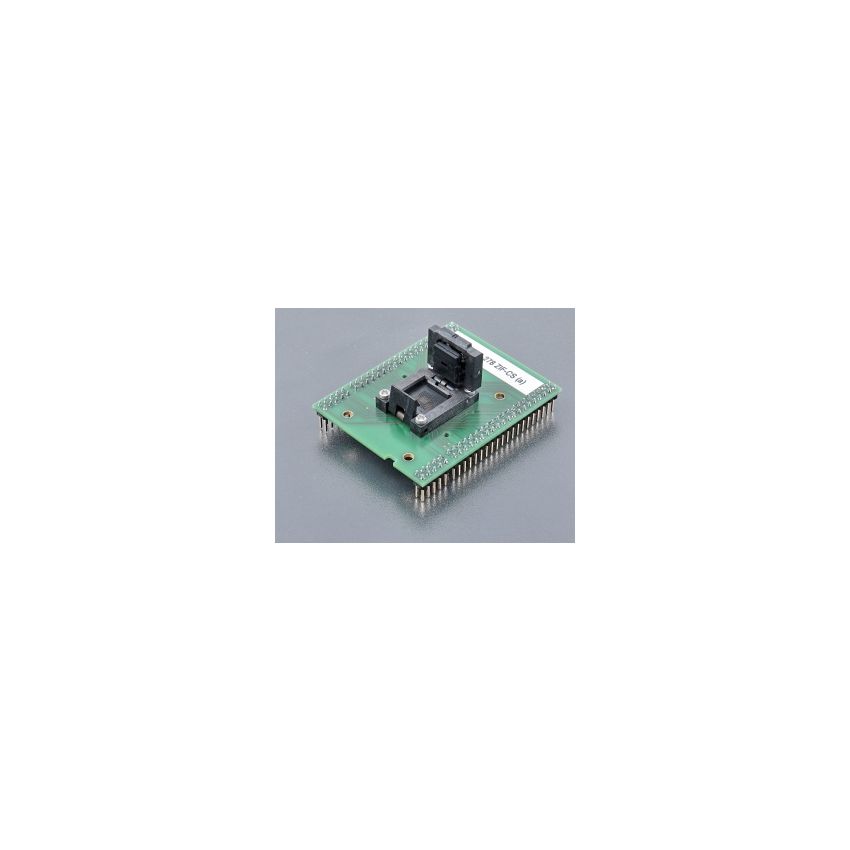

BGA-Top-278 ZIF-CS (a)

special adapter, assigned for eMMC devices in BGA package

designed for TurboMode

ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.

The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.

operating (mechanical) warranty of ZIF socket - 500,000 actuations

s/n from 2579A-00129 supported from PG4UW software version 3.76

made in Slovakia

Ord. no. 70-2579A

Socket ZIF BGA153, ClamShell type

Connection to BGA-Bottom-X 4x25 pins, square, 0.6x0.6mm
