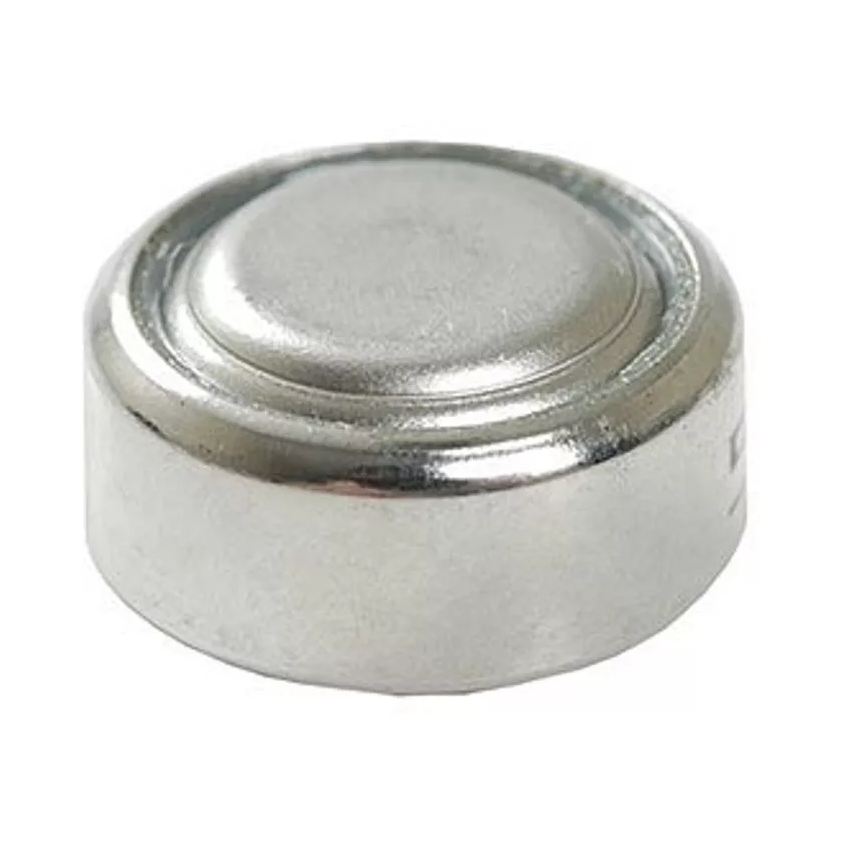

LR1130 Alkaline Button Cell Battery, 1.5V, 70mAh Capacity

The LR1130 is a compact alkaline button cell battery, measuring 11.6mm in diameter and 3.1mm in height. It delivers a nominal voltage of 1.5V and has a capacity of approximately 70mAh, making it suitable for low to moderate-drain devices. The battery operates efficiently within a temperature range of 0°C to 60°C, ensuring reliability across various environmental conditions. Common applications include calculators, digital thermometers, laser pointers, watches, and small electronic toys. The LR1130 is also known by other designations such as AG10, LR54, and 189, reflecting its compatibility with devices requiring these battery types. Please note that this battery is non-rechargeable and should be disposed of properly after use.​

Key Features:

• Provides a stable 1.5V output ideal for low to moderate drain devices.
• Compact size (11.6mm diameter, 3.1mm height) fits small electronics.
• Offers a nominal capacity of approximately 70mAh.
• Operates in a wide temperature range from 0°C to 60°C.
• Compatible with AG10, LR54, and 189 battery equivalents.
• Designed for single-use applications and is non-rechargeable.

Additional Specifications:

• Voltage: 1.5V
• Capacity: 70mAh
• Terminal Type: Flat Top
• Chemistry: Alkaline
