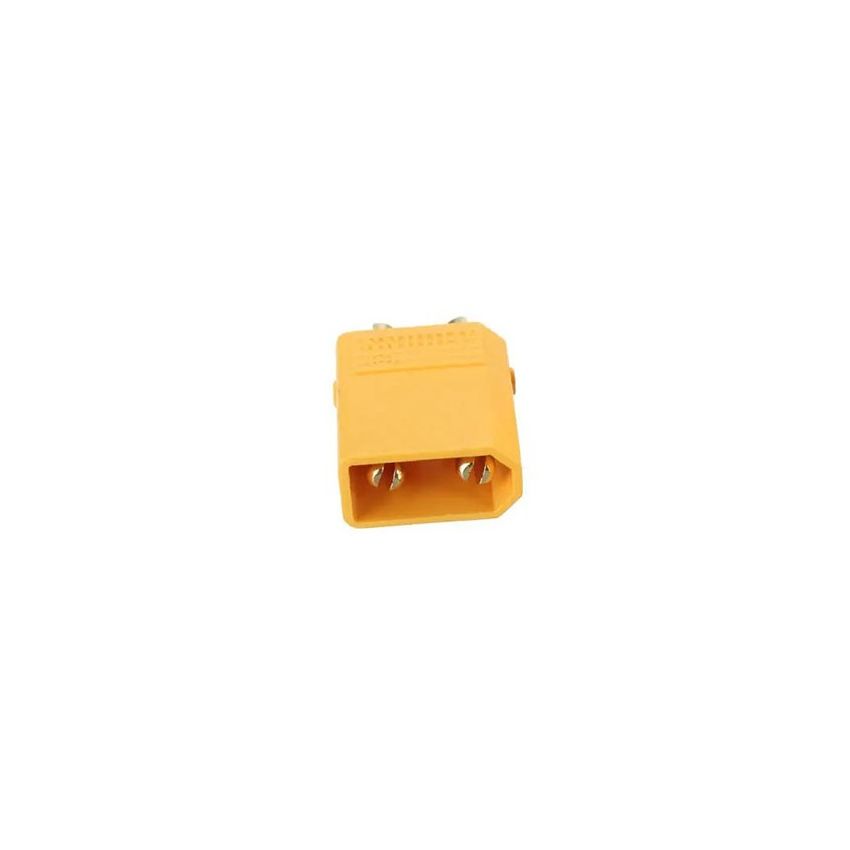

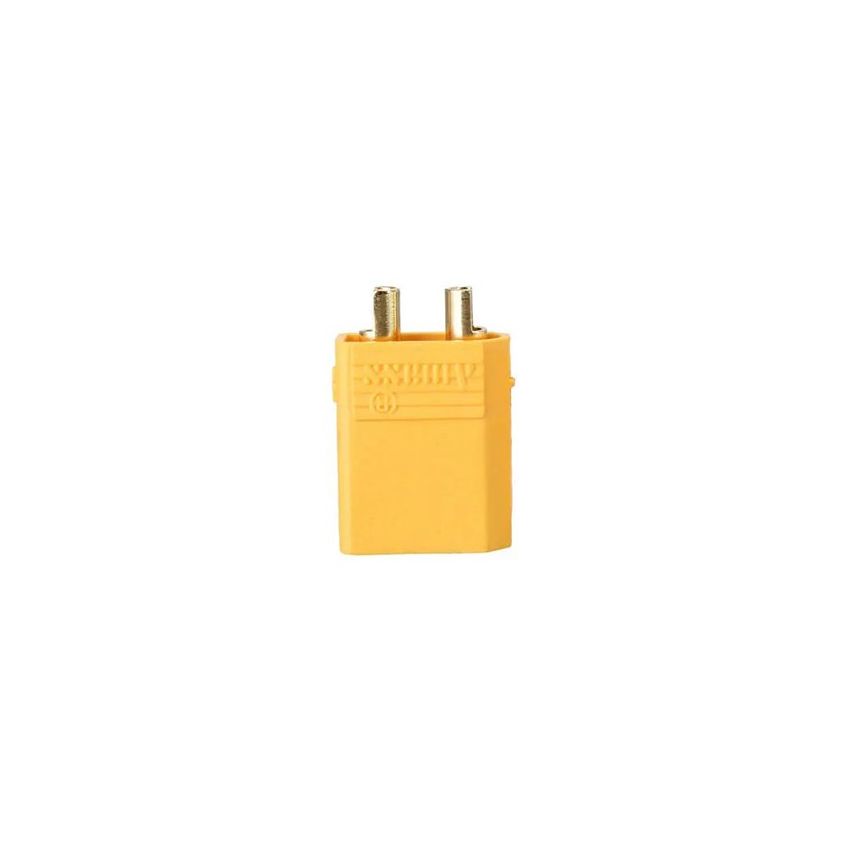

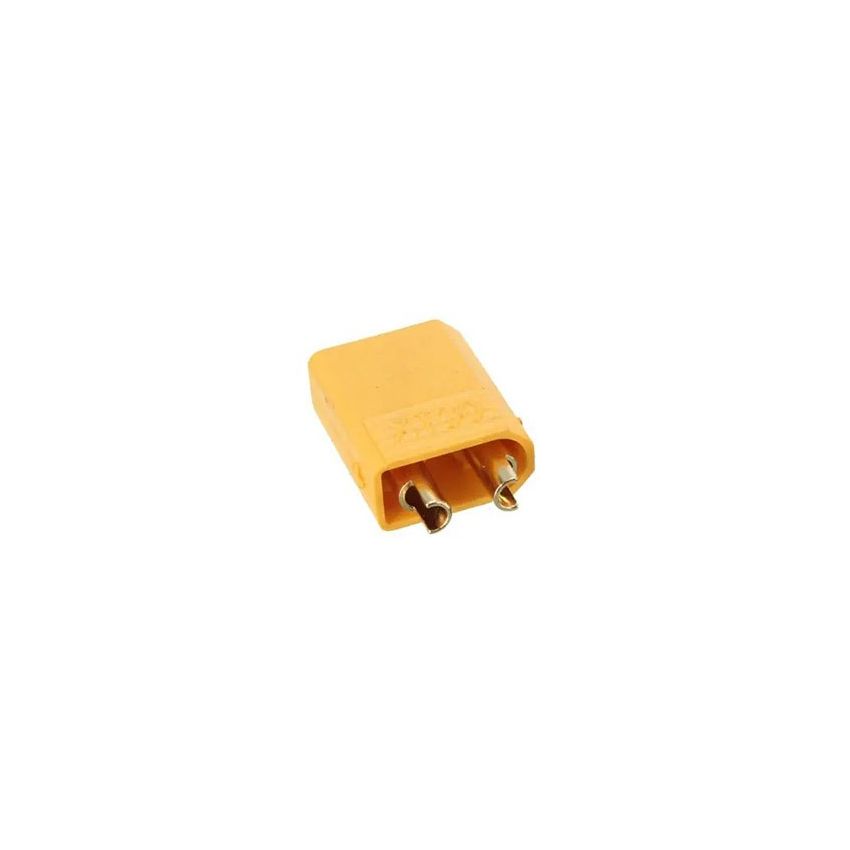

XT30 Male Connector, 2-Pin DC Plug, 15A Rated Current

The XT30 Male Connector is a high-performance DC power plug designed for applications requiring reliable and efficient power delivery. Its compact 2-pin design is ideal for space-constrained environments. The connector supports a continuous current of 15A and can handle voltages up to 500V DC, making it suitable for various electronic and electrical applications. The gold-plated brass contacts provide excellent conductivity and resistance to corrosion, ensuring long-term reliability. Encased in a durable polyamide housing, the XT30 connector withstands operating temperatures ranging from -20°C to 120°C. Its solder-type termination is compatible with 18AWG wires, facilitating secure and stable connections. With a mechanical durability rated for over 1,000 mating cycles, this connector is built for repeated use without compromising performance.

Key Features:

• Compact 2-pin male connector designed for DC power applications.​
• Rated for continuous 15A current and up to 500V DC voltage.​
• Gold-plated brass contacts ensure reliable conductivity and corrosion resistance.​
• Durable polyamide housing offers high-temperature resistance up to 120°C.
• Solder-type termination suitable for 18AWG wires.​
• Mechanical durability rated for over 1,000 mating cycles.​

Additional Specifications:

• Termination A: Solder Tab (Male Side)
• Termination B: Wire Connection (Soldered)
• Number of conductors: 2
