Description:

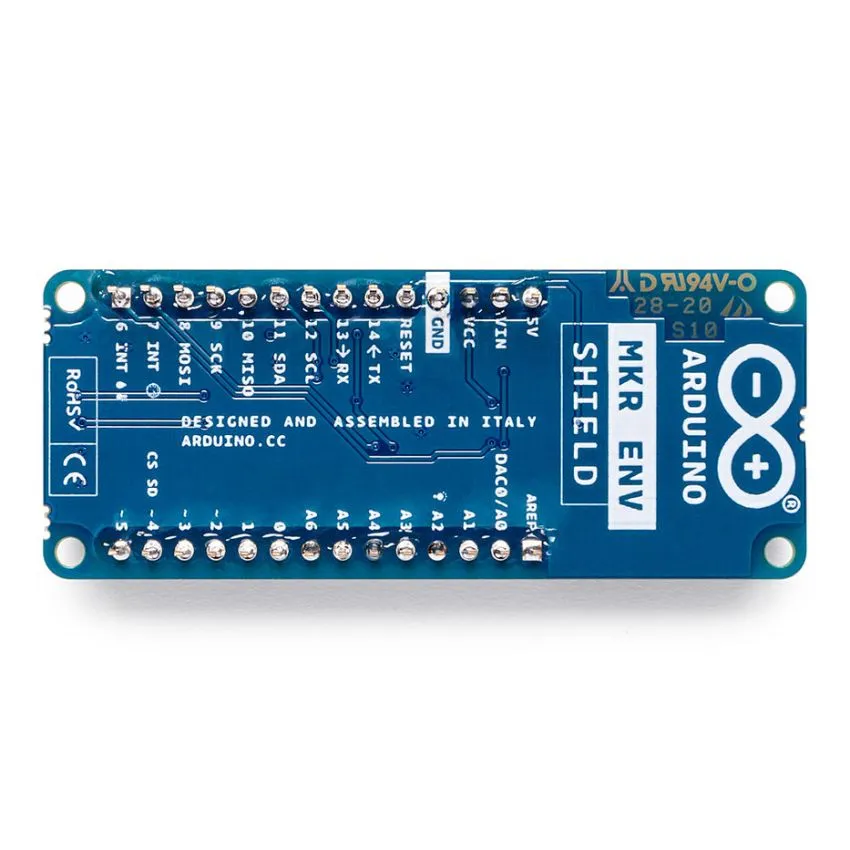

The MKR ENV Shield allows a MKR board to acquire environmental data collected by an array of sensors.
These sensors are of the latest generation and measure:
-Atmospheric pressure
-Temperature and humidity
-Light intensity (in LUX, max 650)

SPECIFICATIONS :

• -ICs : LPS22HB
• TEMT6000
• -Input Voltage 3.3V
• -Operating Voltage 3.3V
• -Ranges : Pressure: 260 to 1260 hPa
• rH sensitivity: 0.004% rH/LSB
• Humidity accuracy: ± 3.5% rH, 20 to +80% rH
• UVA, UVB and UVBI measurment0
• 0 to 650 Lux
• -Communication : I2C/Analog
• -Length : 61 mm
• -Width : 25 mm
• -Weight : 32 gr.
