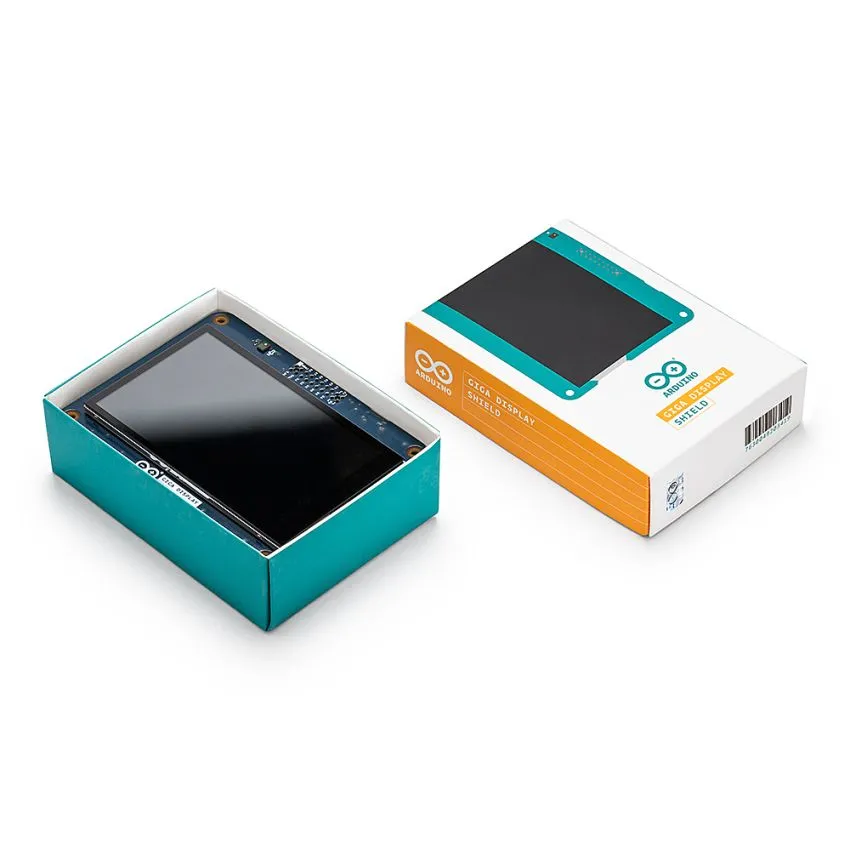

Arduino GIGA Display Shield ASX00039

GIGA Display Shield

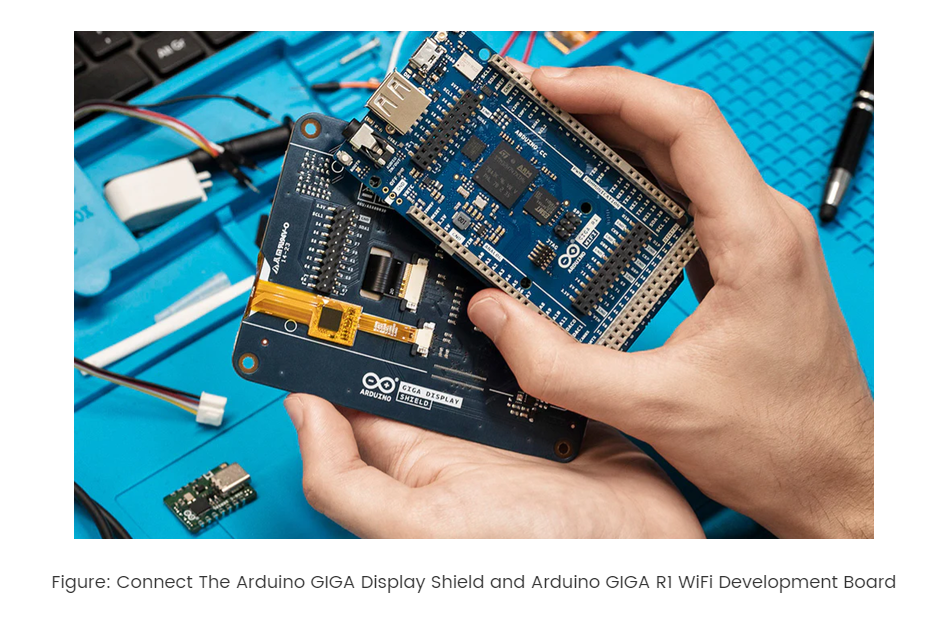

The GIGA Display Shield leverages the new central pin header on the GIGA R1 WiFi to provide a seamless touch screen solution, making it effortless to deploy rich graphic interfaces in your projects. Packed with versatile features—including a digital microphone, 6-axis IMU, and Arducam® connector—it preserves full access to the remaining 54 pins, simplifying the creation of handheld devices, dashboards, or custom project controls.

Key Features:

• 3.97” 480x800 RGB touch screen
• Arducam® 20-pin camera connector
• Digital microphone (MP34DT06JTR)
• 6-axis IMU (Bosch BMI270)
• RGB LED

Specifications & Highlights:

• Touch Screen: High-resolution 480x800 RGB touch screen with a fully documented API, enabling you to fully harness the shield’s capabilities.
• IMU & Digital Microphone: Integrate motion sensing and audio input to create interactive, innovative projects that respond to gestures and sound.

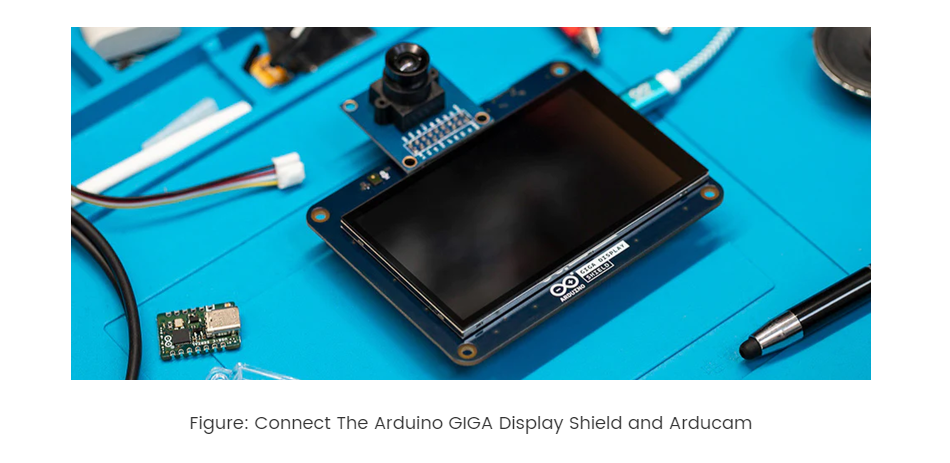

• Arducam® Connector: 20-pin connector designed for easy camera integration, ideal for applications like “selfie mode” positioning.
• Top-Facing Expansion: Newly introduced headers on the GIGA R1 WiFi allow you to add additional shields while maintaining convenient access to all other pins.
• This shield is perfect for makers looking to build sophisticated handheld devices, control panels, or interactive displays without compromising on expandability.
