Specifications :

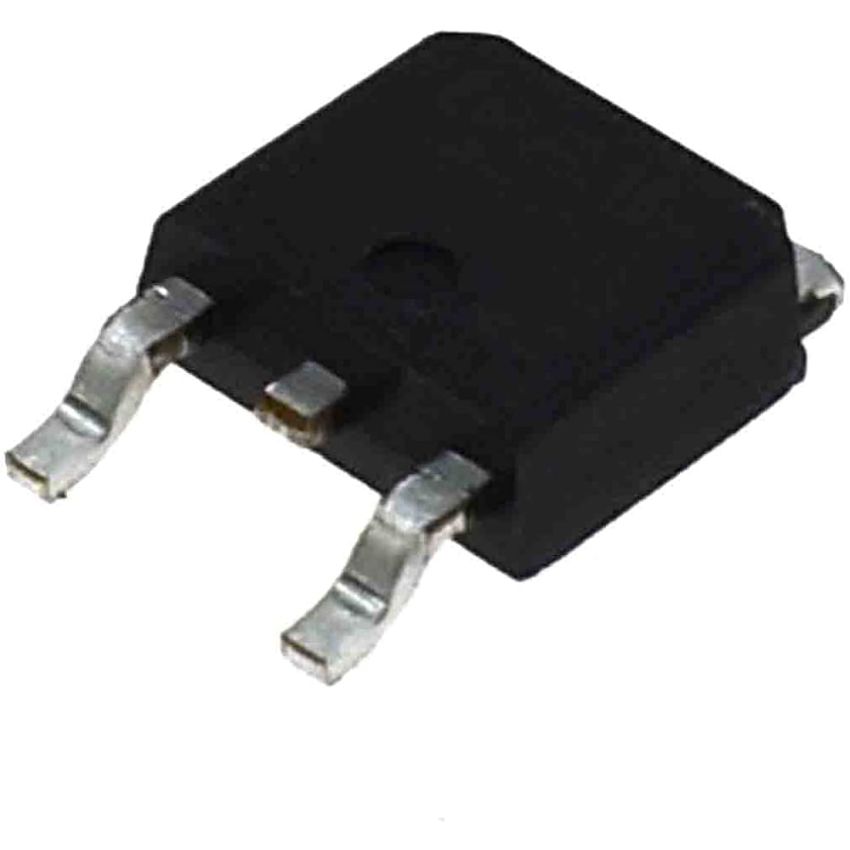

Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 107 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 75 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 33 nC
Rise Time (tr): 77 nS
Drain-Source Capacitance (Cd): 550 pF
Maximum Drain-Source On-State Resistance (Rds): 0.006 Ohm
