Description :

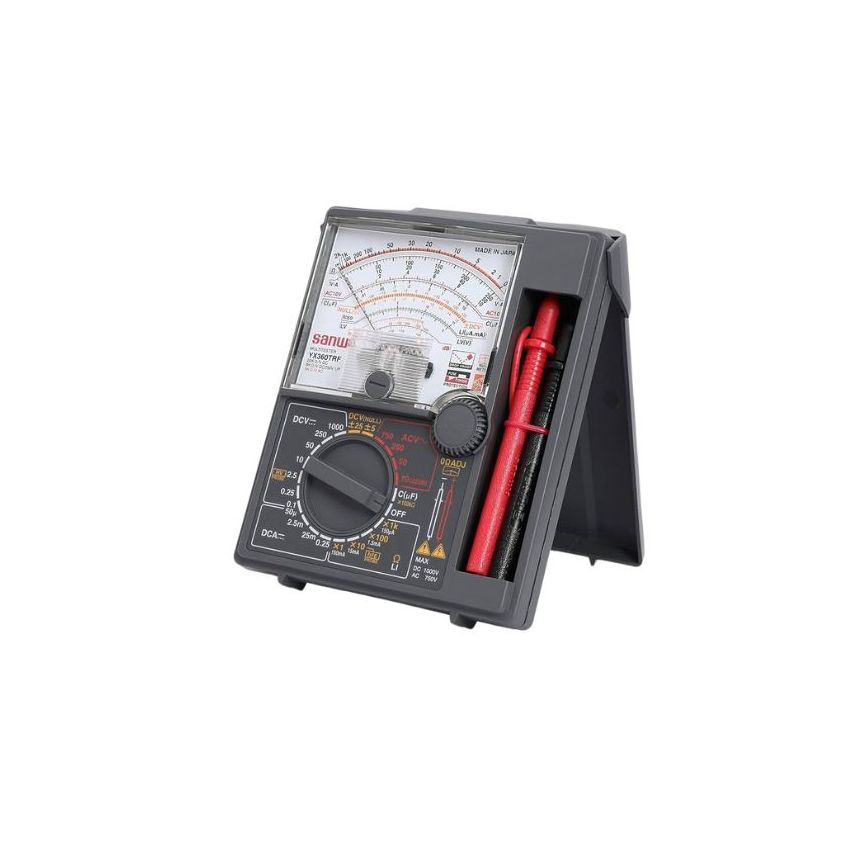

Sanwa Analog Multimeter, Case and instrument in one body for convenience in carrying and storing, Drop shock proof meter, Null (zero center) meter with ±5 / ±25 in DCV, High resistance up to 200Mohm with low voltage, Protective body cover, Capacitance, dB, Li

Specifications :

• measurement: DCV:
• - 0.1 (20kohm/V), ; with a tolerance of ±5% of full scale
• - 0.25/2.5/10/50 (20kohm/V)/250/1000V (9kohm/V) , with a tolerance of ±3% of full scale
• DCV (NULL): ±5/25V (40kohm/V) with a tolerance of ±5% of full-scale ACV: 10/50/250/750 (9kohm/V) with a tolerance of ±4% of full-scale
• DCA: 50μ/2.5m/25m/0.25A with a tolerance of ±3% of full scale
• Resistance:
• - 2k/20k/200k/2Mohm (x1/x10/x100/x1k) with a tolerance of ±3% of arc
• - 200Mohm (x100k) with a tolerance of ±5% of arc Capacitance: 10μF dB: -10dB～ 22dB (for 10VAC) ～ 62dB
• Load current (LI): 0-150m/15m/1.5m/150μ/1.5μA
• DC high voltage: DC25kV (optional probe "HV-10T" is necessary)
• hFE: 1000 at x10 range (optional probe "HFE-6T" is necessary)
• Battery: R6 (IEC) or UM-3 (1.5V)x2
• Fuse: 5.2x20mm (250V/0.5A)
• Size/Mass: H159.5×W129×D41.5 mm/Approx. 320g
