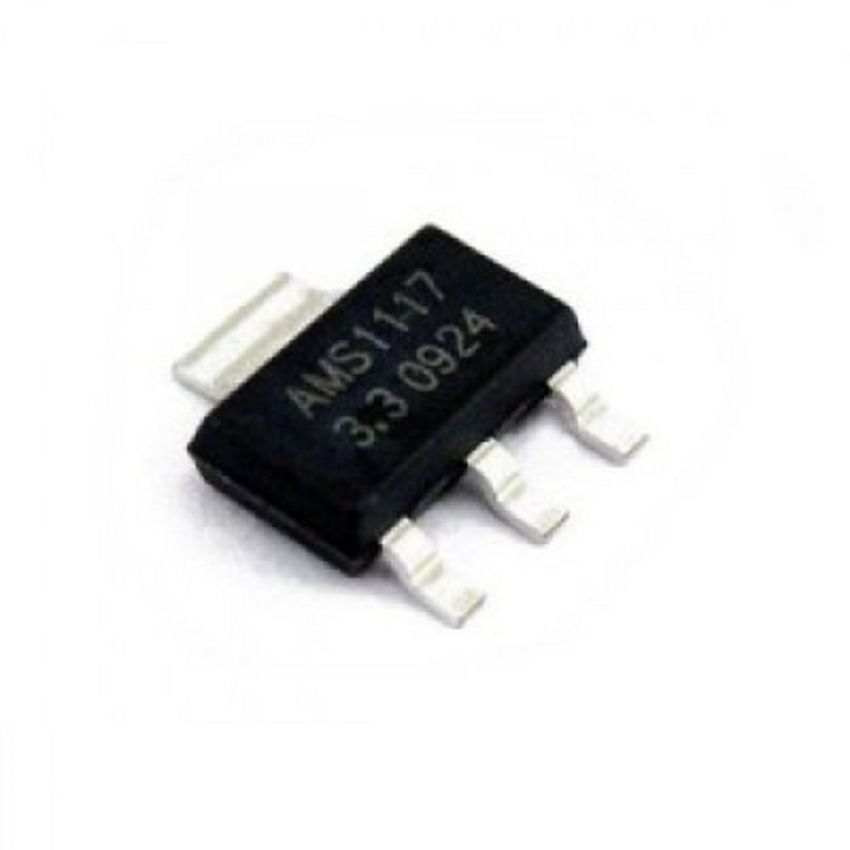

AMS1117,Low Dropout Voltage Regulator,SOT-223,1A,3.3V

The AMS1117 3.3V voltage regulator is a three-terminal device designed to deliver a fixed output of 3.3V with a dropout voltage as low as 1.1V. With a 1A output current capability and robust thermal protection, it is ideal for applications requiring a regulated 3.3V output. The AMS1117 series offers excellent line and load regulation, making it a perfect choice for battery chargers, post-regulation of switching supplies, and low-power microcontroller systems.

This SOT-223 packaged component ensures efficient heat dissipation, providing stability and reliability even under challenging operational conditions. Its surface-mount form factor allows for compact PCB designs. RoHS-compliant and designed with a wide operating temperature range, this regulator is versatile and reliable for various electronic projects.

• Low Dropout Voltage: With a dropout voltage as low as 1.1V at full load, it ensures stable 3.3V output even when the input voltage is close to the regulated output.
• High Output Current: Capable of delivering a maximum output current of 1A, making it suitable for high current applications in various electronics projects.
• Thermal Overload Protection: Built-in thermal shutdown protection ensures safe operation by preventing the regulator from overheating.
• Compact SOT-223 Package: The surface-mount SOT-223 package allows for compact and efficient PCB designs, enhancing overall system integration.
• High Line and Load Regulation: With excellent line regulation of 0.2% max and load regulation of 0.4% max, it provides consistent and reliable voltage output under varying conditions.
• RoHS Compliant: The AMS1117 3.3V is environmentally friendly, being RoHS compliant, making it suitable for use in eco-conscious designs.
