Description :

-Wireless charging technology can transfer power through media such as air, paper, and plastic.

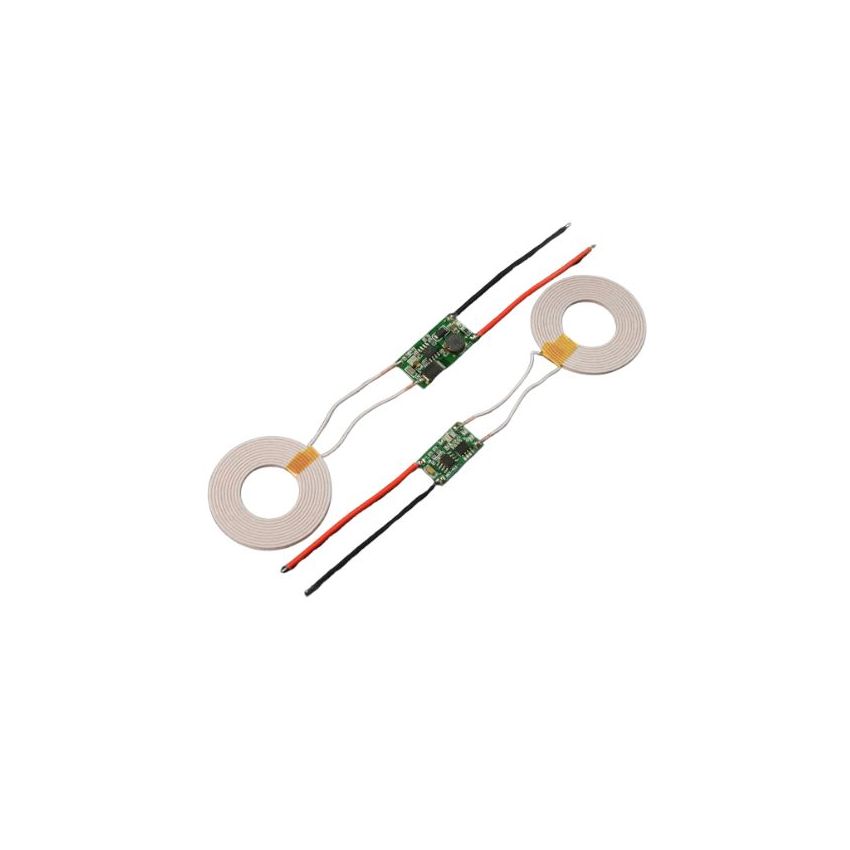

-This is a wireless charging module based on “magnetic-coupled resonance” technology that consumes minimal power.
-The technology creates a non-radiating magnetic field around the transmitter which is used to connect with the receiver and excite resonance, allowing energy to be transmitted with minimal power consumption.
-The module is designed with the newly developed large current wireless power supply chip, and its circuit is simple.
-The module can output maximum 5V/2A power, which is applicable for small electronic products.
-The non-contact charging design makes the module waterproof and dustproof, extending its service life and making it more convenient to use.
-The module can be used in phone power supply, portable device, 5V sensors, DIY wireless power, etc.
-It is recommended to control the load current below 1.8A if the module needs to work for a long time.

- Specifications:

•Input Voltage: 12V
•Maximum Output Voltage & Current: 5V/2A
•Transmitting Coil Size: outer diameter 43(±2 )mm, thickness 2.3mm
•Transmitting Module Size: 18×8.5×15mm
•Receiving Coil Size: outer diameter 43(±2 )mm, thickness 2.3mm
•Receiving Module Size: 10×25×3mm
•Best Receiving Distance: 3~6mm
