Description :

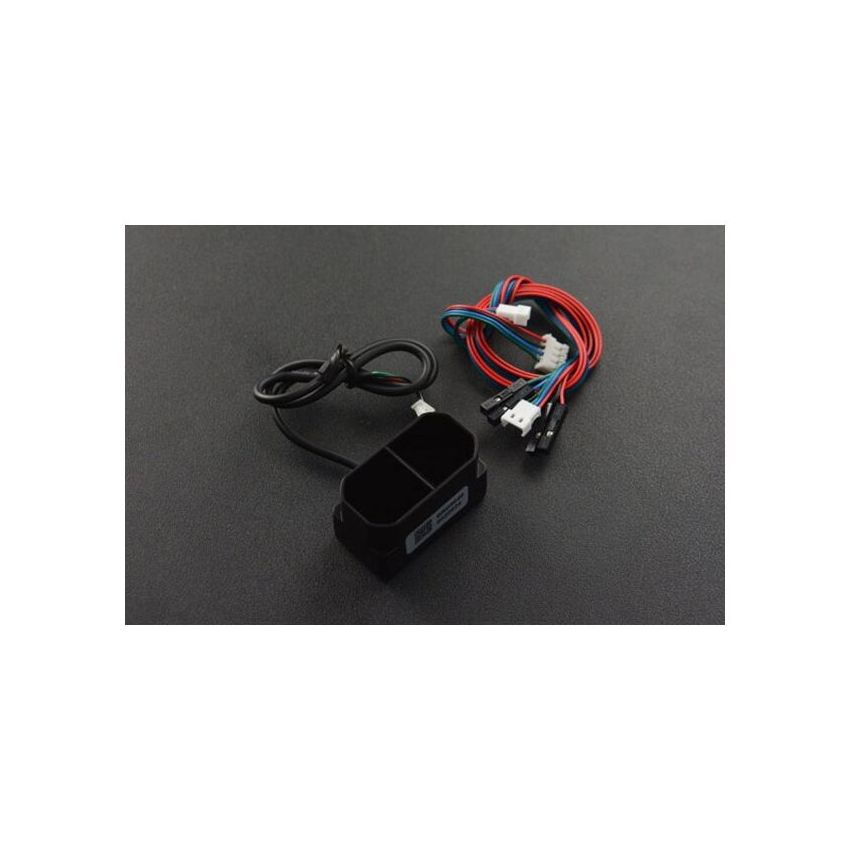

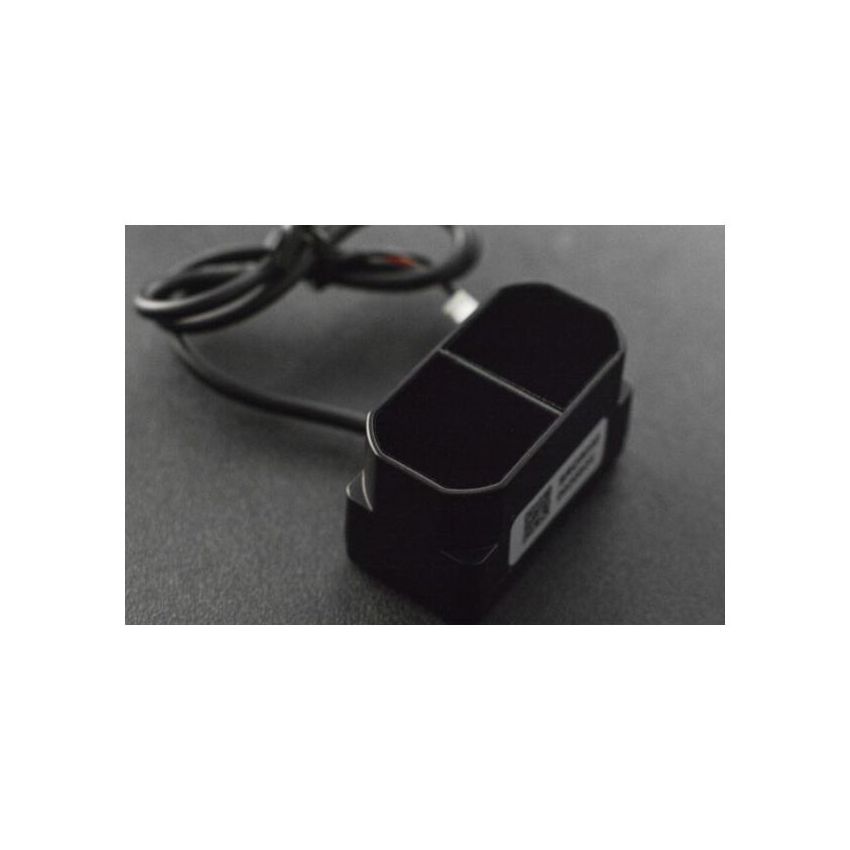

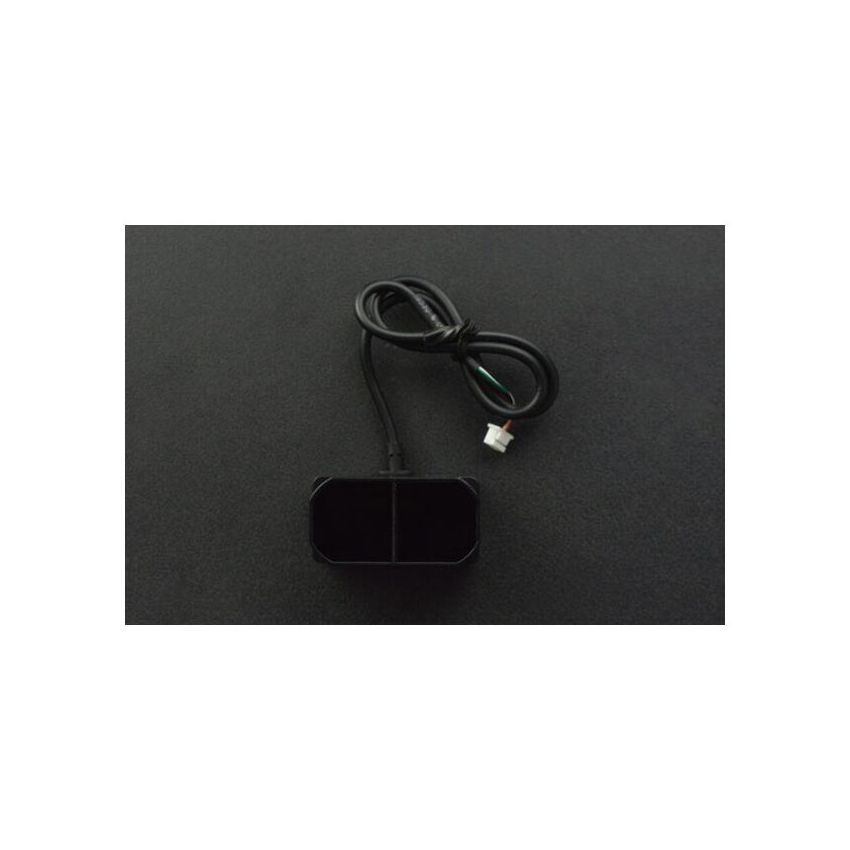

-TFmini Plus is a small, single-point ranging sensor that uses the Time of Flight (TOF) principle to measure the distance between itself and an object.
-It has a unique optical and electrical algorithm that allows for accurate and quick distance measurement while maintaining a stable and high-sensitive performance.
-Compared to the original TFmini, TFmini Plus has a greatly improved performance, including an increased frame rate from 100Hz to 1000Hz, a reduced blind zone to 10cm, and improved accuracy and stability.
-It also has an IP65 enclosure that effectively prevents water and dust, making it more adaptable to outdoor light or different environments and temperatures.
It has low power consumption and a flexible detecting frequency, and is compatible with UART and I2C communication, as well as standard 5V power supply.
-The sensor works well with all sorts of Arduino controllers and can be easily integrated into the system using the Arduino library developed by DFRobot.
-It has a tiny size of 352118.5mm, making it suitable for various applications such as obstacle detection, robot navigation, and altitude holding systems for UAVs.
-The product should be maintained by a professional technician, and should only be used with factory spare parts for performance and safety.
-Operating and storage temperatures are between -20Ć¢āĘ and 60Ć¢āĘ, and -20Ć¢āĘ and 75Ć¢āĘ respectively.
It is important to follow the instructions provided and not open the product shell or make any adjustments without proper guidance.
-Detecting objects with high reflectivity, such as mirrors or smooth floor tiles, may cause system malfunction.
-The product will malfunction if there is a transparent object between it and the detecting object, such as glass or water.
-The product will malfunction if its emitting or receiving IR-pass filter is covered by dust, so it is important to keep the IR-pass filters clean.
-It is important to send the command of save settings when modifying parameters, otherwise the settings will not take effect.
- Specifications:
1.Product Characteristics:
Ć¢ā¬Ā¢Detecting Range: 0.1m~12m
Ć¢ā¬Ā¢Accuracy: Ʊ5cm@ (0.1-6m), Ʊ1%@(6m-12m)
Ć¢ā¬Ā¢Resolution: 5mm
Ć¢ā¬Ā¢Frame Rate : 1-1000Hz(adjustable)
Ć¢ā¬Ā¢Anti-ambient Light: 70k lux
Ć¢ā¬Ā¢Operating Temperature: -20Ć¢āĘ~60Ć¢āĘ
Ć¢ā¬Ā¢Protection Degree: IP65
2.Optical Characteristics:
Ć¢ā¬Ā¢Light Source: LED
Ć¢ā¬Ā¢Operating Center Wavelength: 850nm
Ć¢ā¬Ā¢Signal Acceptance Angle: 3.6ư
3.Electrical Characteristics:
Ć¢ā¬Ā¢Input Voltage: 5VƱ0.5V
Ć¢ā¬Ā¢Average Current: Ć¢ā°Ā¤110mA
Ć¢ā¬Ā¢Power Consumption: 550mW (Low Power Mode: 85mW)
Ć¢ā¬Ā¢Peak Current: 500mA
Ć¢ā¬Ā¢Communication Level: LVTTL (3.3V)
Ć¢ā¬Ā¢Communication Interface: UART, I2C, I/O
4.Others
Ć¢ā¬Ā¢Enclosure Material: ABS PC
Ć¢ā¬Ā¢Storage Temperature: -20Ć¢āĘ~75Ć¢āĘ
Ć¢ā¬Ā¢Weight: 12g
Ć¢ā¬Ā¢Wire Length: 30cm
