Description :

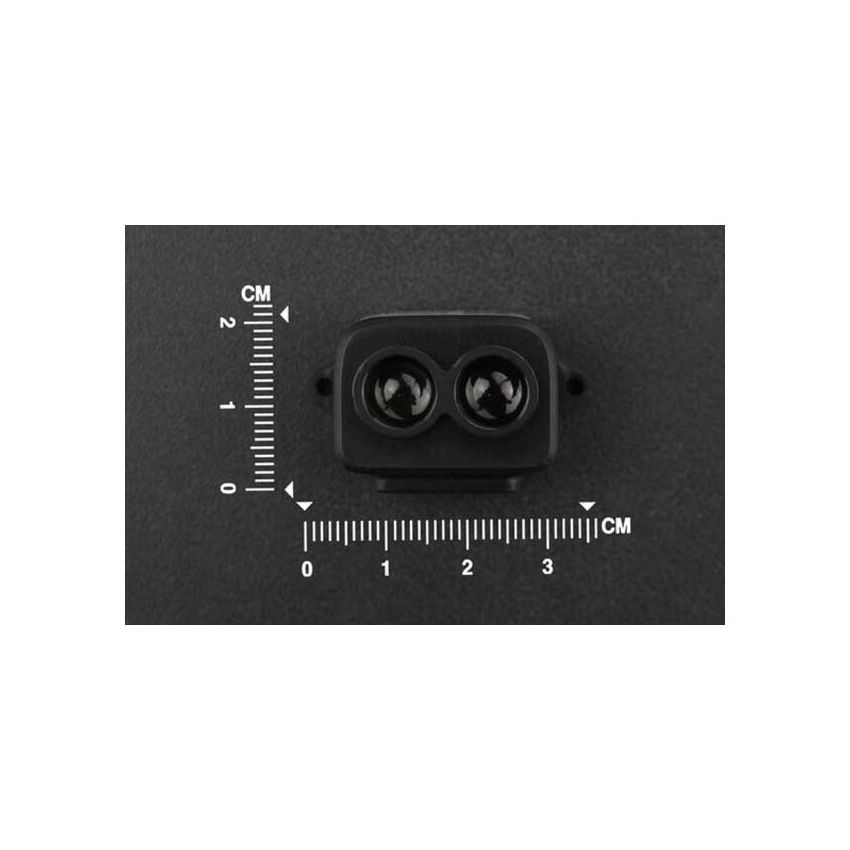

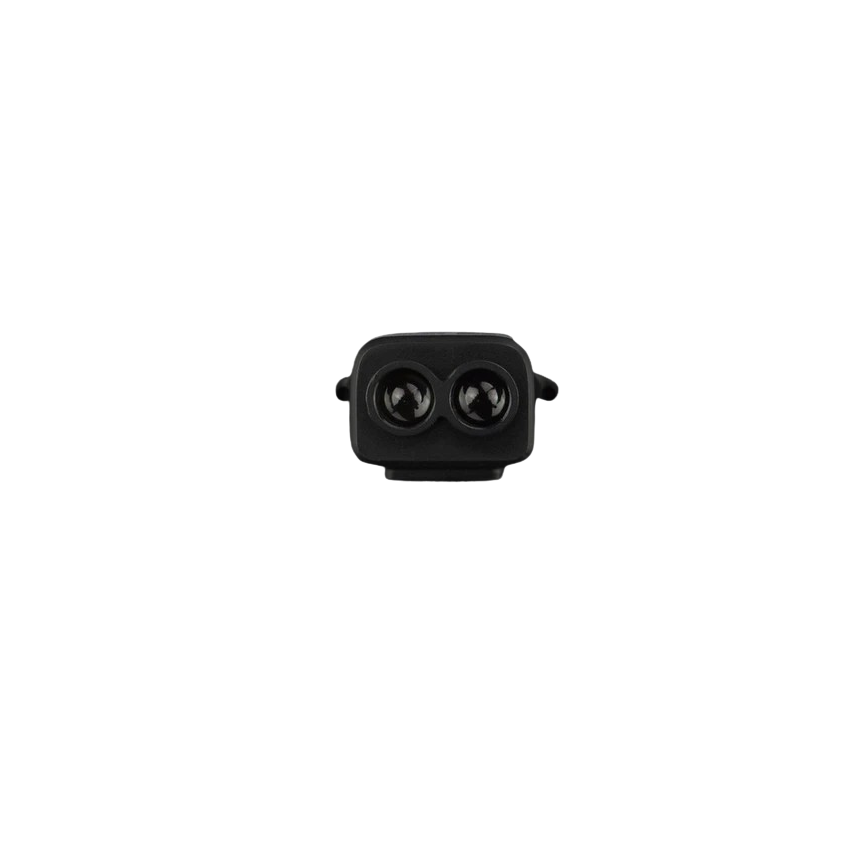

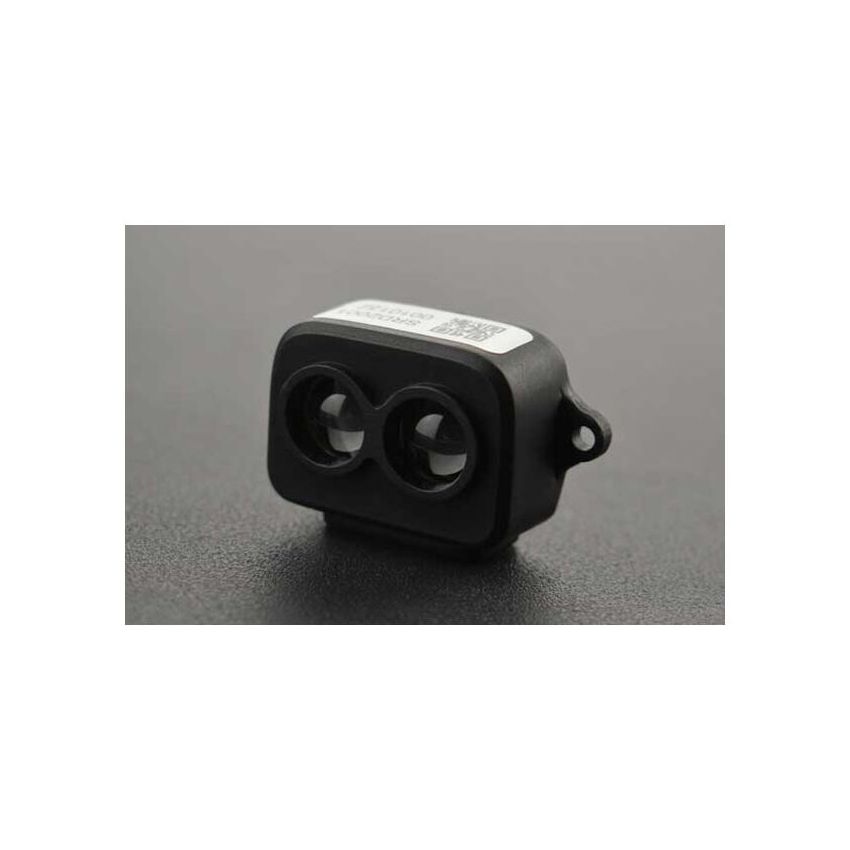

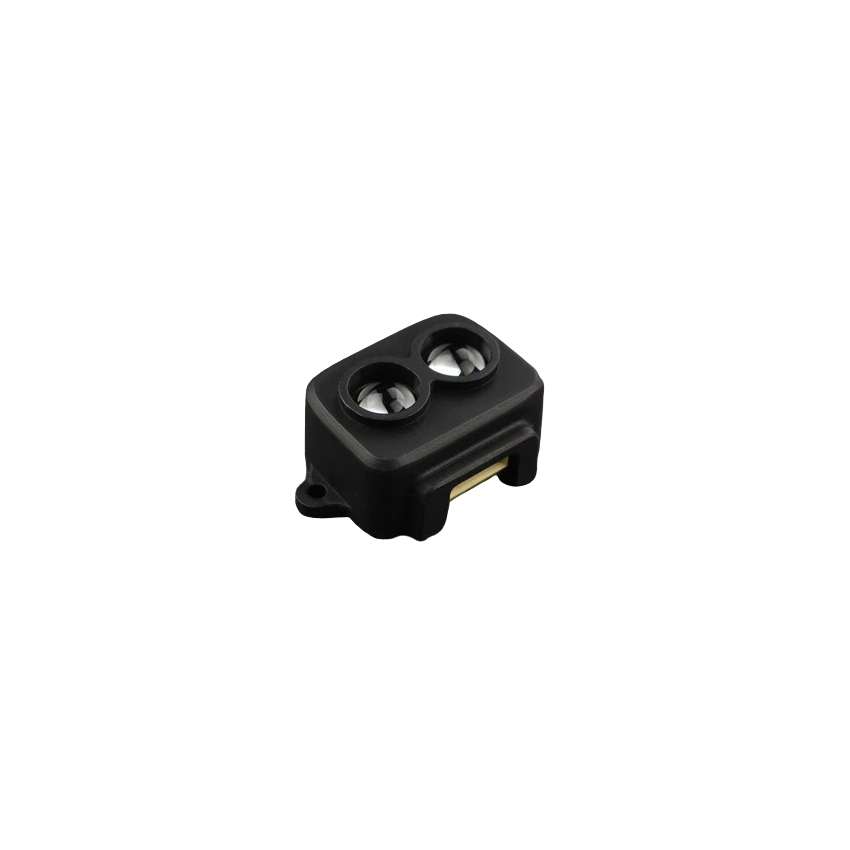

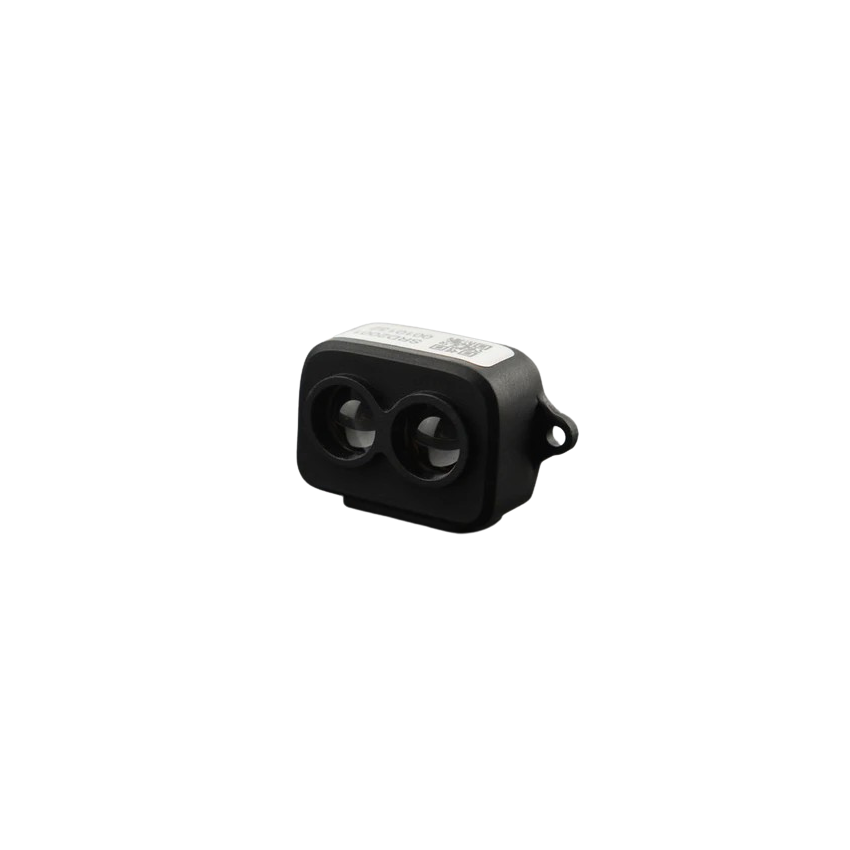

TF-Luna is a single-point ranging Lidar, based on ToF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement.

Features

Small Size Design, weight as light as <5g. High Performance: High stability and high sensitivity. TF-Luna can detect distances up to 8m, with a blind zone of 0.2m, and distance resolution of 1cm. Additionally, The standard deviation of TF-Luna at 90% reflectivity High precision: TF-Luna can detect objects with a minimum edge length of 3.5 cm within a detection distance of 1m and can detect objects with a minimum edge length of 28 cm within a detection distance of 8m. Easy to get started, high level of generality: The power supply voltage of TF-Luna is 5V, equipped with UART communication interface, the communication level is 3.3V. TF-Luna is compatible with Arduino, Raspberry Pi and other platforms. Application Scenarios: 1. Robot: Robot obstacle avoidance, Robot anti-drop protection 2. UAV: UAV obstacle avoidance, UAV altitude setting 3. Smart City: Smart toilets, Smart trash bins 4. Smart Retail: Smart ad trigger, Smart mirror trigger Economical: It can be widely applied to many development scenarios

Specifications:

1. Distance Resolution: 1cm 2. Frequency: 100Hz 3. Ambient Light Resistance: 70k lux 4. Detecting Range: 0.2~8m 5. Weight: ＜5g 6. FoV: 2° 7. Supply Voltage: 5V±0.1V 8. Data Interface: UART/ I²C 9.Accuracy: ±6cm@(0.2m-3m)
