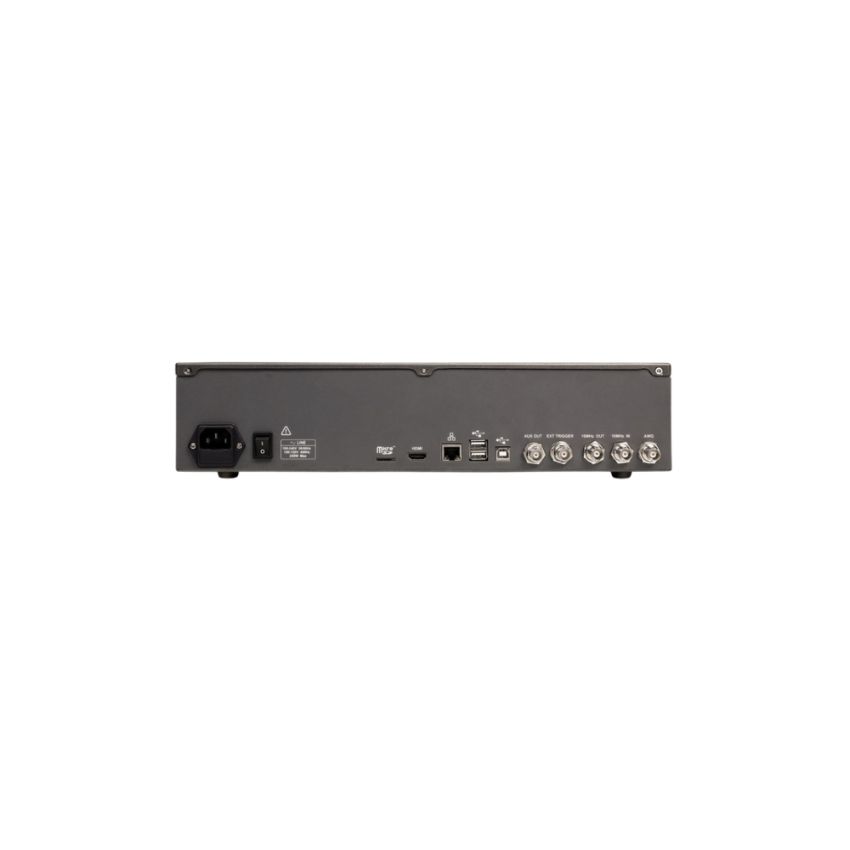

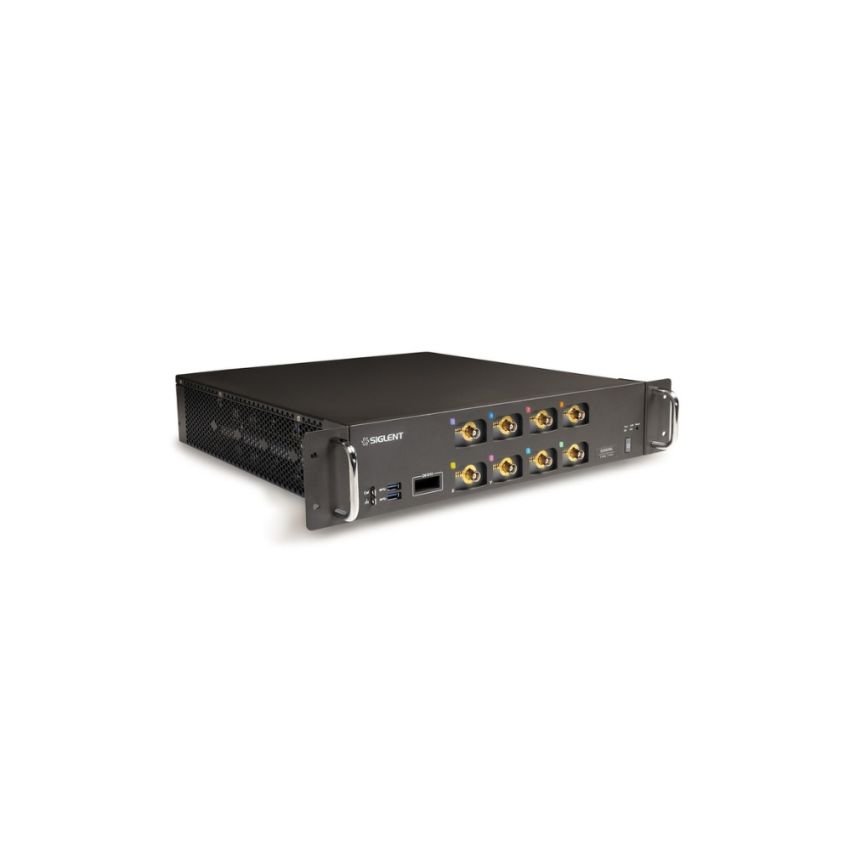

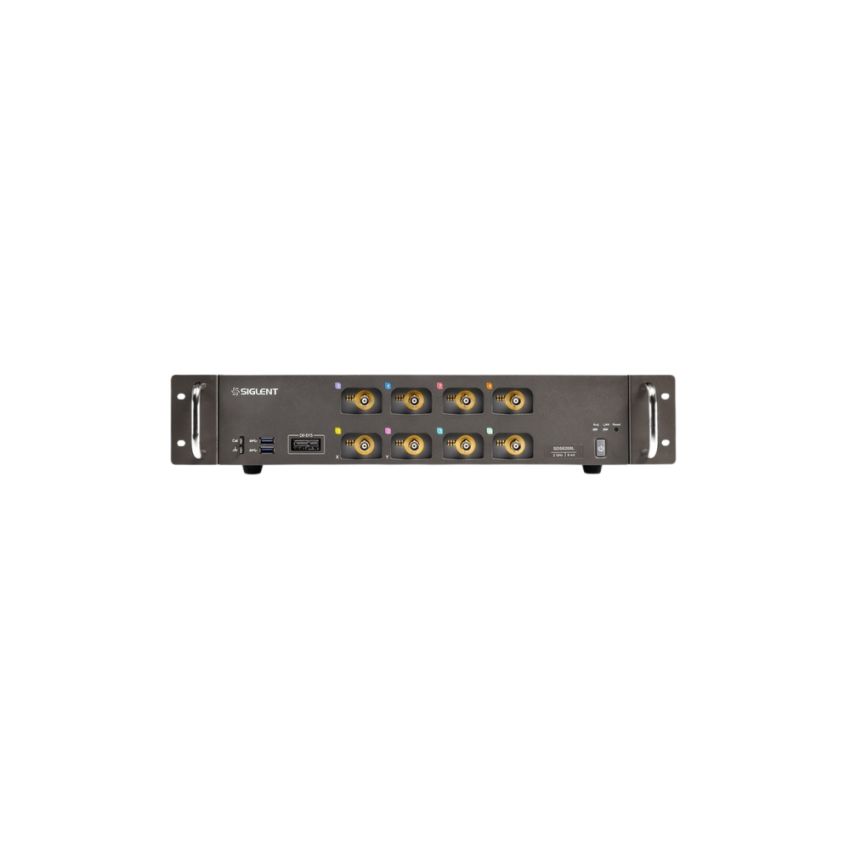

SDS6108L, Low Profile Digital Storage Oscilloscope, 8 Channels, 1 GHz Bandwidth

The Siglent SDS6108L is a compact 8-channel low-profile digital storage oscilloscope featuring 1 GHz analog bandwidth and a real-time sampling rate of 5 GSa/s per channel. It supports equivalent sampling up to 10 GSa/s and includes a deep 500 Mpts memory depth per channel, ideal for capturing and analyzing long-duration waveforms with high fidelity. Designed for embedded system testing, multi-channel debugging, and automated environments, the SDS6108L combines high-speed acquisition with intelligent serial decoding, advanced math functions, and customizable triggering.

Its 2U rack-mountable chassis allows seamless integration into test systems, while external display output and modular expandability offer flexible operation. With support for up to 512 synchronized analog channels via SYNC-64, this unit is suitable for large-scale and distributed measurement systems.

Key Features:

• 8 analog input channels with 1 GHz bandwidth and 5 GSa/s real-time sampling rate
• Deep 500 Mpts memory per channel enables long-duration waveform capture
• Waveform capture rates up to 170000 wfm/s (normal) and 750000 wfm/s (sequence)
• Supports advanced triggering and decoding protocols including I2C, SPI, UART, CAN, and LIN
• 2U low-profile chassis ideal for rack-mount or system integration
• Expandable architecture with support for SYNC-64 and optional digital input modules
