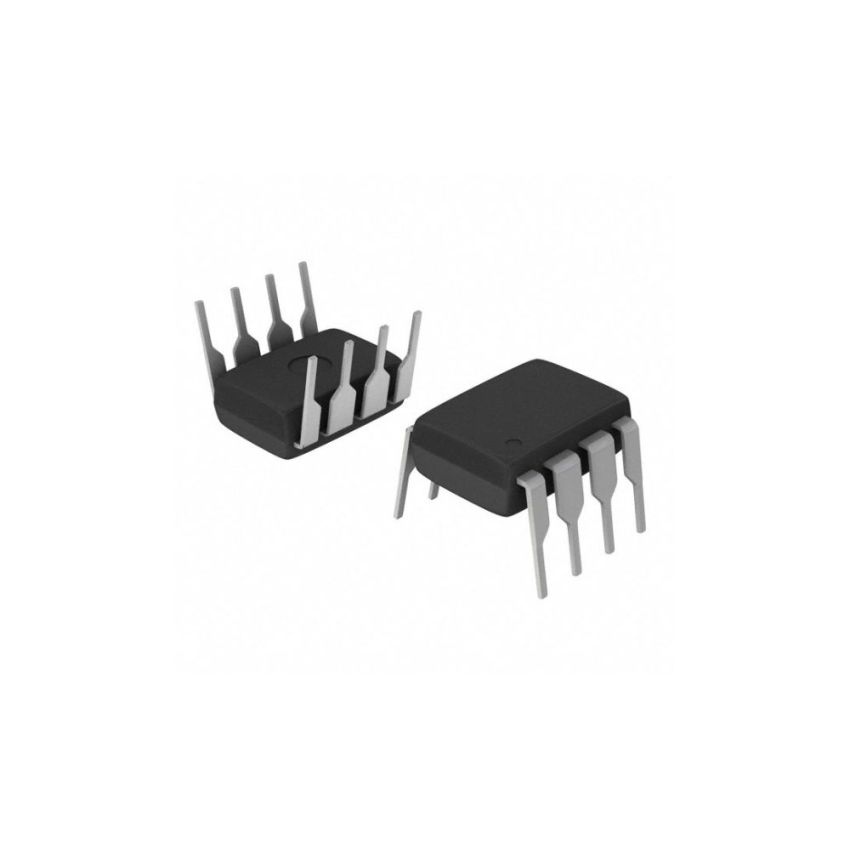

TL431CP,Adjustable Precision Shunt Regulator IC,DIP-8

The TL431CP is a highly versatile adjustable precision shunt regulator IC designed for use in power supply designs, voltage monitoring, and industrial applications. It features a reference voltage of 2.5V, adjustable up to 36V using an external resistor divider, ensuring precise voltage regulation for demanding circuits.

With a wide cathode current range of 1mA to 100mA, the TL431CP delivers reliable performance across various load conditions. Its high accuracy and low temperature coefficient ensure stable operation in fluctuating environments. Packaged in a compact DIP-8 form factor, it is easy to integrate into through-hole PCB layouts, making it an excellent choice for precision voltage regulation applications.

• Adjustable Output Voltage: Provides a precise output voltage adjustable between 2.5V and 36V using external resistors.
• Wide Operating Range: Operates with a wide cathode current range from 1mA to 100mA for versatile applications.
• High Accuracy: Features a reference voltage tolerance of ±0.5% at 25°C for precision operation.
• Low Temperature Coefficient: Ensures stable performance across varying temperatures.
• Compact DIP-8 Package: Designed for through-hole mounting, offering durability and easy integration.
• Versatile Applications: Ideal for power supply designs, voltage monitoring, and adjustable regulators.
