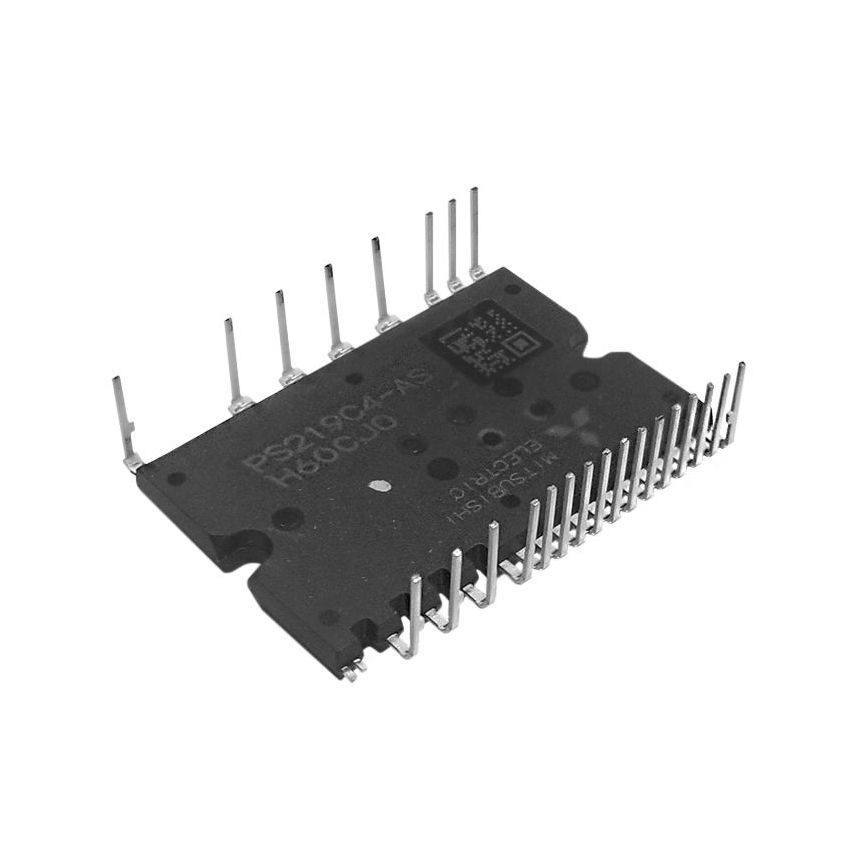

PS219C4AS Intelligent Power Module 600V 15A DIPIPM Ver5

The PS219C4-AS is a high-performance 600V/15A DIPIPM Ver.5 intelligent power module developed by Mitsubishi Electric. It combines multiple discrete components such as IGBT chips, fast recovery diodes, and high-voltage ICs into a compact package, making it an ideal solution for motor control systems in industrial and home appliance applications.

Key Features:

• Integrated fast recovery diodes for optimized switching
• Under-voltage protection on both P and N sides
• High voltage IC with level shifting capability
• Internal bootstrap diode with limiting resistor
• Isolation voltage up to 1500Vrms between terminals and baseplate
• Built-in temperature sensing or shutdown feature

Additional Specifications:

• Package Type: DIPIPM Ver.5
• Supply Voltage: 600V
• Current: 15A
• Type: Intelligent Power Module
