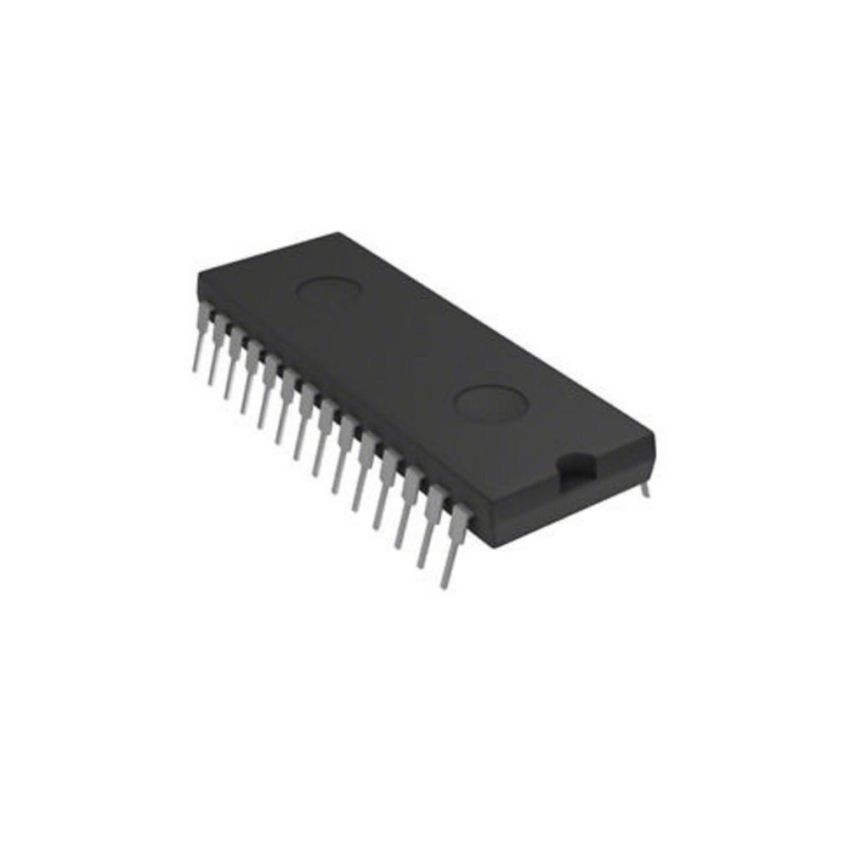

M82C59A-2,Programmable Interrupt Controller,DIP-28

SKU
SCIx2151
Part Number
M82C59A-2
Brand:
Categories:

Guarantee safe & secure checkout

The M82C59A-2 is a versatile Programmable Interrupt Controller ideal for managing interrupt requests in microcomputer systems. Built with CMOS silicon gate technology, it ensures low power consumption and high operational efficiency. The device features compatibility with MSM80C85AH and MSM80C86A microcomputer systems, offering 8 levels of priority interrupt control and expandability to 64 levels through cascade connections. It supports dynamic reconfiguration, making it suitable for real-time applications.

With a single power supply range of 3V to 6V, the M82C59A-2 delivers a robust solution for interrupt management, ensuring seamless data transfer between internal registers and the CPU. Its durable DIP-28 package ensures reliability in various industrial and commercial applications.

Additional features include maskable interrupts, programmable priority modes, and compatibility with TTL logic levels. The M82C59A-2 is the go-to choice for developers looking to streamline their interrupt management processes with ease.


Key Features:
  • Programmable Interrupt Controller: Provides up to 8 levels of priority interrupt control with expandability up to 64 levels.
  • Compatibility: Designed for MSM80C85AH and MSM80C86A microcomputer systems.
  • Low Power Consumption: Features CMOS silicon gate technology for high speed and low standby power usage.
  • Wide Voltage Range: Operates on a single power supply of 3V to 6V, with typical 5V.
  • Programmable Modes: Includes maskable interrupts and supports dynamic reconfiguration.
  • Durable Packaging: Housed in a robust DIP-28 package with TTL compatibility.
IC type PIC
Mounting Style Through Hole
