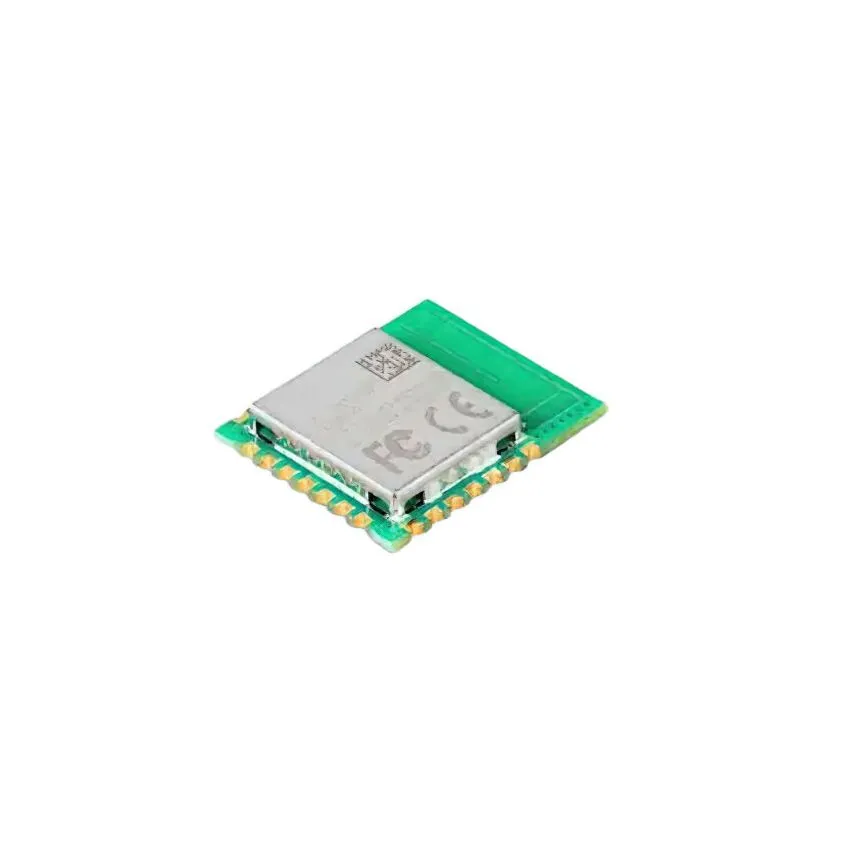

The Raspberry Pi Radio Module 2 (RM2) is a compact, self-contained wireless module developed to bring Wi-Fi and Bluetooth connectivity to Raspberry Pi microcontroller-based products. It is particularly suitable for embedded and production designs that require wireless connectivity without using a complete Pico W or Pico 2 W board. RP-008943-DS-7-Radio Module 2 D…
At its core is the Infineon CYW43439 wireless radio, providing 2.4GHz Wi-Fi 4 (802.11b/g/n) together with Bluetooth 5.2, including Bluetooth Classic and Bluetooth Low Energy. The module incorporates an internal PA/LNA and Raspberry Pi-designed PCB antenna, reducing the number of external RF components required in the host design. RP-008943-DS-7-Radio Module 2 D…
RM2 communicates with a Raspberry Pi microcontroller using a gSPI interface implemented through the microcontroller's Programmable I/O (PIO) system. The module also exposes three additional GPIOs that can be controlled by the host. Software support is provided through the Raspberry Pi Pico SDK and follows the same wireless software architecture used by Pico W and Pico 2 W. RP-008943-DS-7-Radio Module 2 D… RP-008943-DS-7-Radio Module 2 D…
Its 21 castellated pads allow RM2 to be soldered directly onto a host PCB as a surface-mount component, making it suitable for compact commercial and industrial embedded products. RP-008943-DS-7-Radio Module 2 D…
Keyfeatures:
• 2.4GHz Wi-Fi 4 (802.11b/g/n)
• Bluetooth 5.2 support
• Supports Bluetooth Classic and Bluetooth Low Energy (BLE)
• Infineon CYW43439 wireless chipset
• Designed for Raspberry Pi microcontrollers
• Compatible with Pico W and Pico 2 W software architecture
• Integrated 2.4GHz PCB antenna
• Shared antenna for Wi-Fi and Bluetooth
• 3 host-controlled GPIOs
• Low-pin-count gSPI host interface
• Integrated PA and LNA for improved signal range and reliability
• Supports PHY data rates up to 96Mbps
• 21-pin castellated surface-mount package
• Input voltage range: 3.0V to 4.8V
• Supports 1.8V or 3.3V I/O
• Operating temperature: -30°C to +70°C
• Compact size: 14.5 × 16.5 × 2.55mm
• Suitable for embedded and mass-produced wireless devices
Applications:
• IoT devices
• Smart home products
• Wireless sensors
• Industrial monitoring systems
• Embedded control systems
• Connected consumer electronics
• Custom Raspberry Pi microcontroller boards
• Wi-Fi and Bluetooth-enabled devices
• Remote monitoring and data acquisition systems
• Mass-produced embedded products requiring wireless connectivity
Important Compatibility Note
RM2 is specifically designed for Raspberry Pi microcontrollers. Raspberry Pi states that use with non-Raspberry Pi microcontrollers is unsupported because the module relies on Raspberry Pi-specific firmware, software and PIO-based gSPI integration. RP-008943-DS-7-Radio Module 2 D…
Package Includes
1 × Raspberry Pi Radio Module 2 RM2 – RMC20452T
