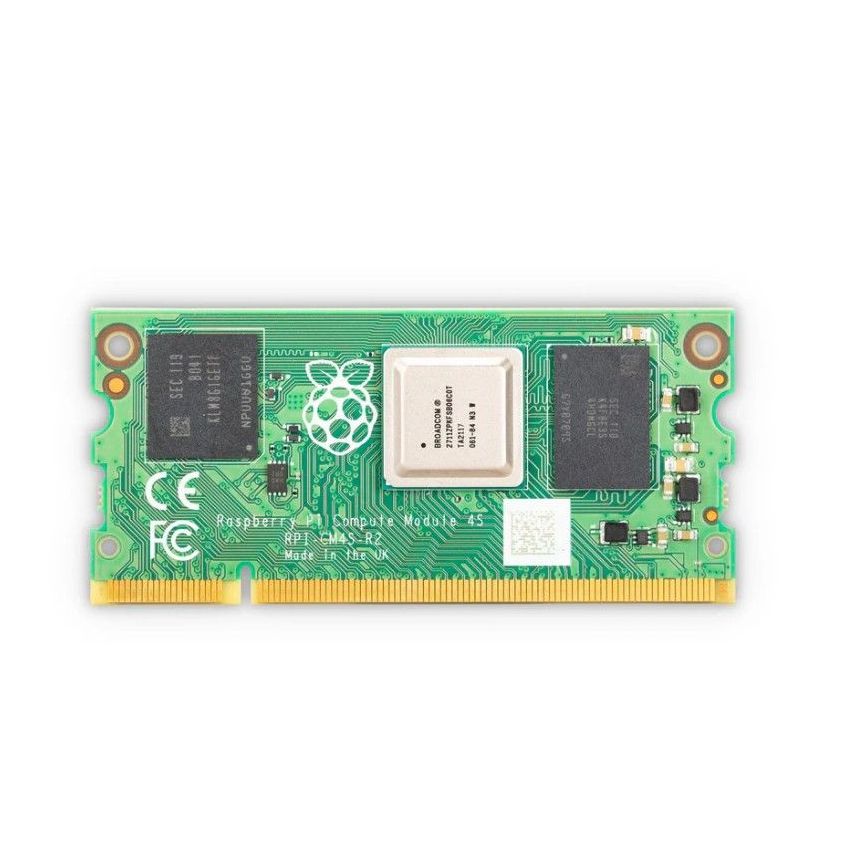

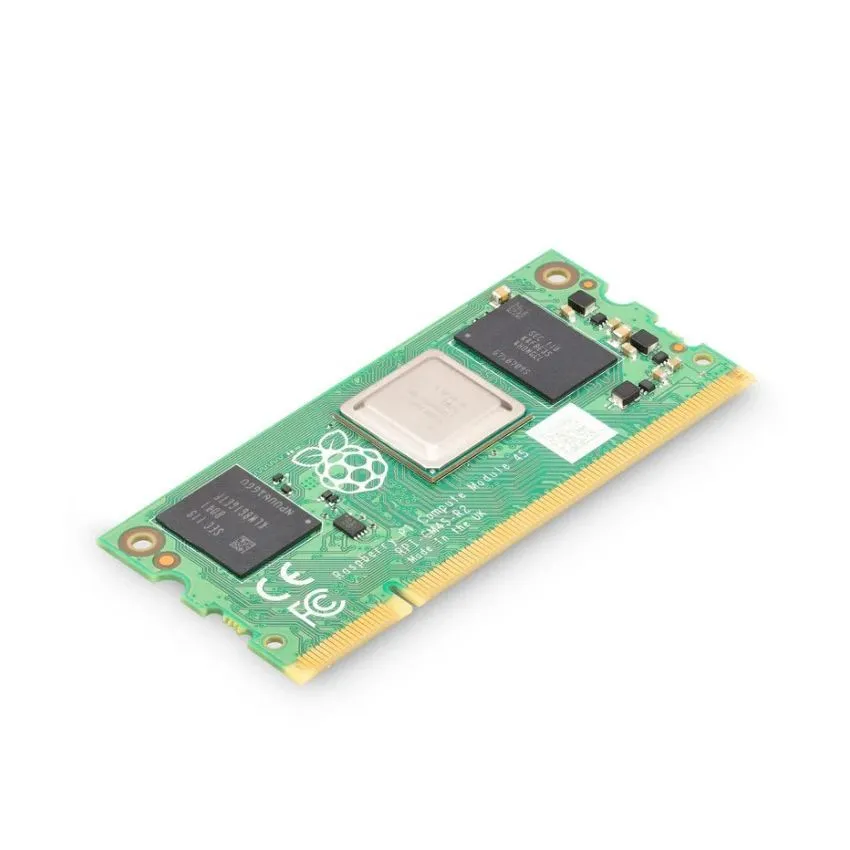

SC0764,CM4S01016 (Compute Module CM4S, 1GB, 16GB eMMC)

The SC0764 Raspberry Pi Compute Module 4S CM4S01016 is a compact industrial-grade System-on-Module designed for embedded and custom hardware applications requiring the power of Raspberry Pi 4 in the familiar SO-DIMM form factor. Built around the Broadcom BCM2711 quad-core Cortex-A72 64-bit processor running at 1.5GHz, this module delivers reliable performance for industrial automation, gateways, kiosks, smart devices, digital signage, robotics, and OEM product development. Raspberry Pi states CM4S is intended especially for customers migrating from CM3 / CM3+ platforms while retaining the SODIMM mechanical format.

This variant includes 1GB LPDDR4 RAM and 16GB onboard eMMC storage, offering faster boot times and dependable local storage for Linux OS, applications, and industrial deployments. The module provides expanded I/O compared with standard Raspberry Pi boards, enabling custom carrier-board integration with interfaces such as HDMI, USB 2.0, GPIO, I2C, SPI, UART, CSI camera, and DSI display connectivity.

Its compact size and robust architecture make it ideal for professional products where space efficiency, low power consumption, and long-term platform support are important.

Key Features:

.Broadcom BCM2711 quad-core ARM Cortex-A72 64-bit processor at 1.5GHz.

.1GB LPDDR4 RAM for embedded Linux and industrial control applications.

.16GB onboard eMMC flash storage for stable and fast system deployment.

.SO-DIMM mechanical form factor compatible with CM3/CM3+ style designs.

.Rich industrial interfaces including GPIO, USB 2.0, HDMI, CSI, DSI, SPI, UART, and I2C.

.Excellent choice for automation, smart devices, gateways, OEM systems, and product development.

Technical Specifications:

.Part Number: SC0764 / CM4S01016

.Processor: Broadcom BCM2711

.CPU: Quad-core Cortex-A72 64-bit @ 1.5GHz

.RAM: 1GB LPDDR4

.Storage: 16GB eMMC

.Form Factor: SO-DIMM (200-pin mechanical format)

.Video Support: H.265 / H.264, OpenGL ES 3.0

.USB: 1 x USB 2.0

.Display Output: HDMI 2.0 up to 4K

.Camera Support: MIPI CSI-2

.Display Interface: MIPI DSI

.Operating Temperature: -20°C to +85°C (source listing)
