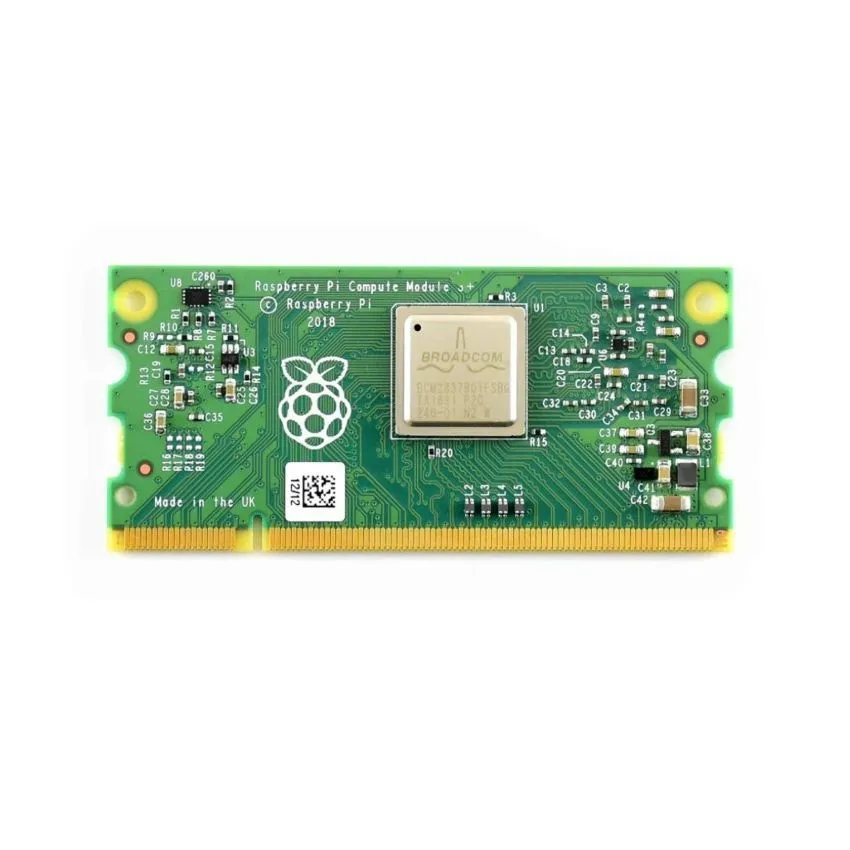

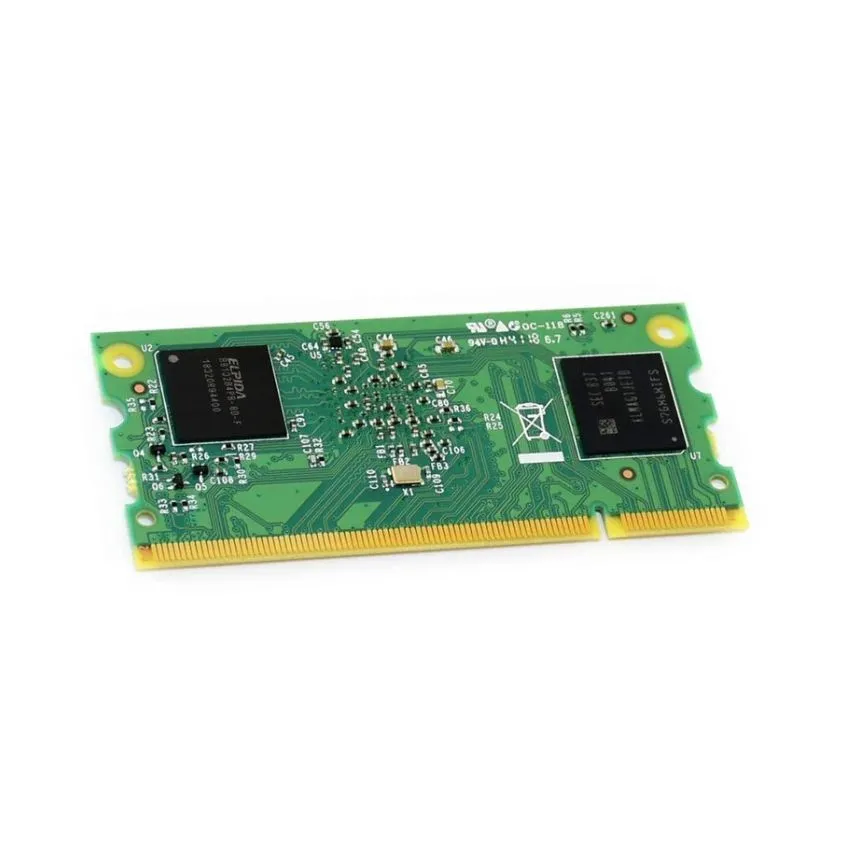

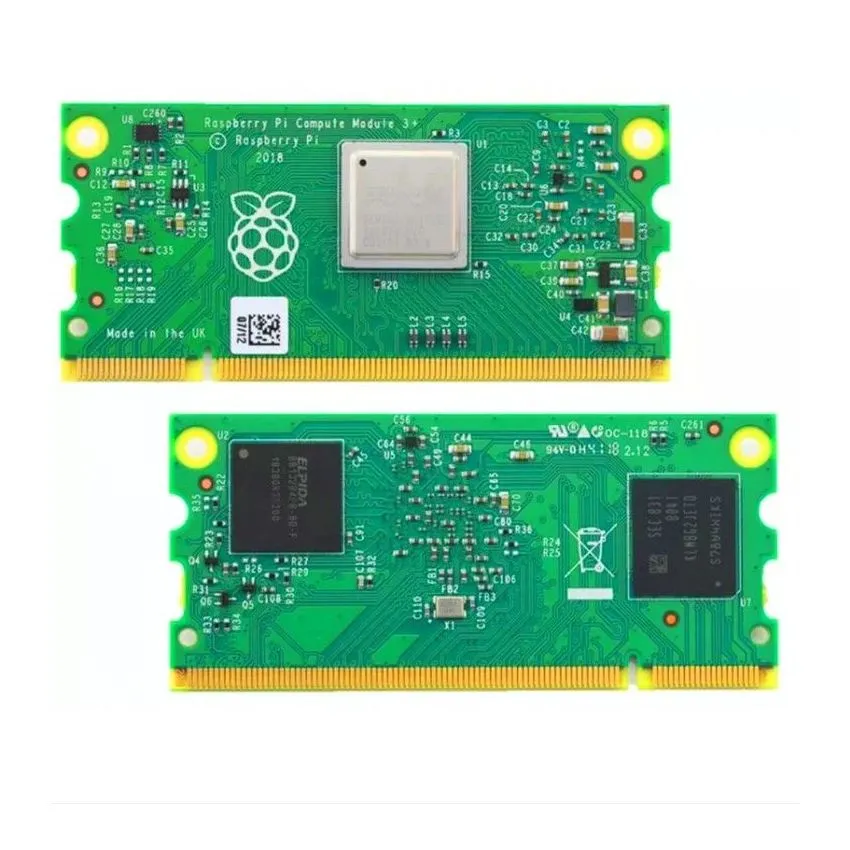

SC0147,Raspberry Pi Compute Module 3+ 16GB (CM3+) eMMC

The Raspberry Pi Compute Module 3+ (CM3+/16GB) is a compact and powerful system-on-module designed for embedded and industrial applications. It integrates the core processing capabilities of the Raspberry Pi 3 Model B+ into a DDR2-SODIMM form factor, making it ideal for custom hardware designs and scalable production environments.

Powered by the Broadcom BCM2837B0 quad-core processor, the module delivers reliable performance at 1.2GHz with a 64-bit ARM Cortex-A53 architecture. It includes 1GB of LPDDR2 RAM and 16GB of onboard eMMC flash storage, offering a robust and stable alternative to traditional SD card-based systems.

The CM3+ enhances thermal performance compared to previous generations and provides extensive I/O capabilities through its 200-pin connector interface. This allows seamless integration into industrial control systems, IoT devices, digital signage, and automation solutions.

Designed for long-term availability and reliability, the Compute Module 3+ supports a wide range of peripherals including cameras, displays, and communication interfaces, making it a flexible platform for advanced embedded development.


Key Features:

• Broadcom BCM2837B0 Quad-Core Processor (1.2GHz)
• 64-bit ARM Cortex-A53 CPU delivering stable and efficient performance for embedded applications.
• 1GB LPDDR2 SDRAM
• Provides sufficient memory for multitasking and running Linux-based systems smoothly.
• 16GB Onboard eMMC Flash Storage
• Reliable and durable storage solution compared to SD cards, ideal for industrial environments.
• DDR2-SODIMM Form Factor (200-pin)
• Compact and standardized design enabling easy integration into custom carrier boards.
• Enhanced Thermal Performance
• Improved heat handling over CM3, suitable for continuous operation in demanding conditions.
• Extensive I/O Interfaces Support
• Includes GPIO, I2C, SPI, UART, HDMI, USB, CSI (camera), and DSI (display) connectivity options.

 Technical Specifications:

• Processor: Broadcom BCM2837B0, Quad-core ARM Cortex-A53 (64-bit) @ 1.2GHz
• RAM: 1GB LPDDR2 SDRAM
• Storage: 16GB eMMC Flash
• Form Factor: DDR2-SODIMM (200-pin)
• Multimedia: H.264 encode/decode (1080p30), OpenGL ES 1.1/2.0
• Operating Temperature: -20°C to +70°C
• Dimensions: 67.6 × 31 mm
• Weight: ~9g

 Applications:

• Industrial automation systems
• IoT gateways and edge devices
• Digital signage and kiosks
• Embedded Linux systems
• Robotics and smart devices

 Compatibility:

• Compatible with Raspberry Pi OS and Linux-based systems
• Works with Compute Module IO Board and custom carrier boards


What’s in the Box:

• 1 × Raspberry Pi Compute Module 3+ (16GB)
