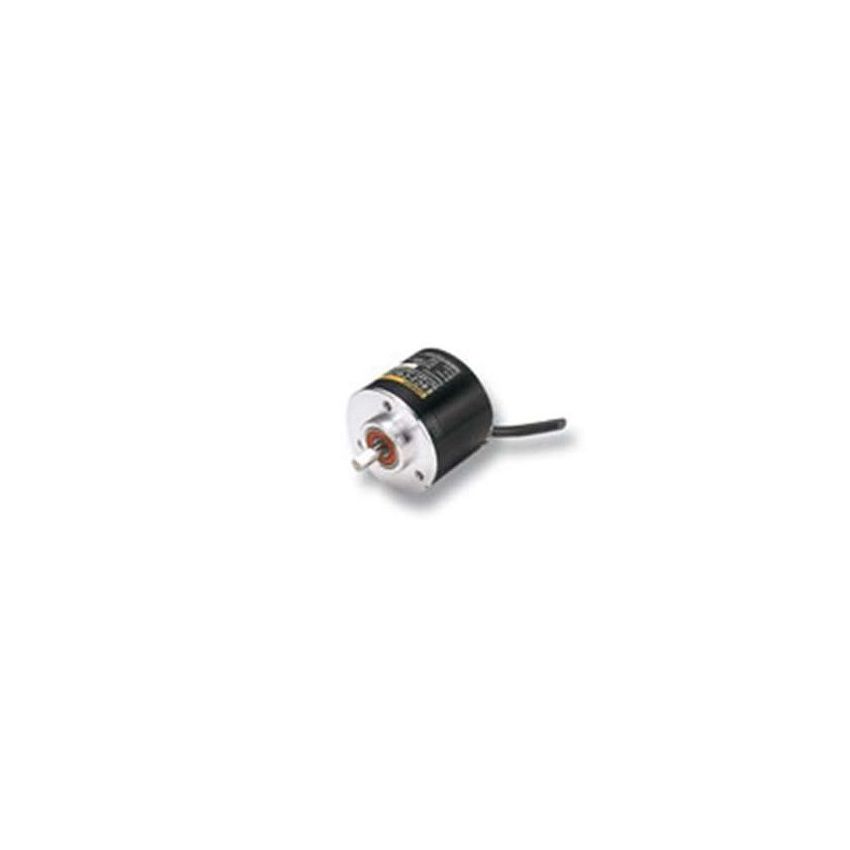

E6C2-CWZ3E 5-12VDC

Incremental, Resolution 100 P/R, 50 mm-dia., Shaft model, NPN voltage output, Pre-wired models (2 m)
Specifications:
Diameter 50 mm dia.
Power supply voltage 5 to 12 VDC (-5% to 10%) Ripple (p-p) 5% max.
Current consumption 100 mA max.
Resolution 100 P/R
Inrush current Approx. 9 A (0.3 ms)
Output phases A, B and Z
Max. response frequency 100 kHz
Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T)
Rise and fall times of output 1 µs max. (Cable length: 2 m, load current: 10 mA)
Starting torque 10 mN.m max.
Moment of inertia 3 x 10-7 kg.m2 max.
Weight Package: Approx. 400 g
Accessories Instruction manual
